XHHW-2, AL armor, 600V Type MC
Application and Description
600 Volt Type MC Cable is for use in aerial installations, direct burial, metal racks, cable trays, troughs or
continuous rigid cable supports. Listed by Underwriters Laboratories as Type MC, this cable is capable of
operating continuously at a maximum conductor temperature of 90° C in wet or dry locations. For use in
Class I Div. 2, Class II Div. 2, & Class III Div. 1, hazardous locations.

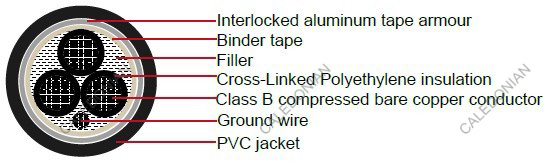

Cable Construction
Conductor:
Class B compressed concentric stranded bare copper in accordance with ASTM B3 and B8 and ICEA
Insulation:
Flame-retardant and moisture resistant Cross-Linked Polyethylene (FRXLPE).
Ground Wire:
Class B compressed concentric stranded bare copper in accordance with ASTM B3 and B8.
Assembly:
The insulated conductors will be cabled round with fillers and with a grounding conductor in one outer
interstice and covered with a binder tape.
Armor:
A single strip of interlocked aluminum tape.
Jacket:
Flame retardant, sun resistant PVC (CPE/LSOH is available upon request)
Color:
upon request, black is preferable
Technical Characteristics
- UL 44 - Thermoset-Insulated Wires and Cables
- UL 1569 - Metal-Clad Cables
- IEEE 1202 - Flame Testing of Cables for Use in Cable Tray in Industrial and Commercial Occupancies
(70,000 Btu/hr)
- ICEA T-29-520 - Vertical Cable Tray Flame Tests (210,000 Btu/hr)
- ICEA S-95-658 (NEMA WC 70) construction requirements
Cable Parameter
AWG or kcmil | Conductor Inch/mm | Nominal Insulation Thickness Inch/mm | Nominal Insulation Diameter Inch/mm | Ground Wire Size | Core Diameter Inch/mm | Armor Diameter Inch/mm | Nominal jacket Thickness Inch/mm | Nominal Overall Diameter Inch/mm | Cable Weight Lbs/kft kg/km | ||||||||
3 cores | |||||||||||||||||
8 | 0.139 | 3.53 | 0.045 | 1.14 | 0.232 | 5.89 | 10 | 0.510 | 12.95 | 0.720 | 18.29 | 0.050 | 1.27 | 0.820 | 20.83 | 405 | 603 |
6 | 0.174 | 4.42 | 0.045 | 1.14 | 0.267 | 6.78 | 8 | 0.586 | 14.88 | 0.796 | 20.22 | 0.050 | 1.27 | 0.896 | 22.76 | 550 | 819 |
4 | 0.221 | 5.61 | 0.045 | 1.14 | 0.314 | 7.98 | 8 | 0.685 | 17.40 | 0.895 | 22.73 | 0.050 | 1.27 | 0.995 | 25.27 | 727 | 1082 |
2 | 0.277 | 7.04 | 0.045 | 1.14 | 0.370 | 9.40 | 6 | 0.808 | 20.52 | 1.018 | 25.86 | 0.050 | 1.27 | 1.118 | 28.40 | 1048 | 1560 |
1 | 0.322 | 8.18 | 0.055 | 1.40 | 0.435 | 11.05 | 6 | 0.948 | 24.08 | 1.158 | 29.41 | 0.050 | 1.27 | 1.258 | 31.95 | 1269 | 1888 |
1/0 | 0.362 | 9.19 | 0.055 | 1.40 | 0.475 | 12.07 | 6 | 1.034 | 26.26 | 1.244 | 31.60 | 0.050 | 1.27 | 1.344 | 34.14 | 1533 | 2281 |
2/0 | 0.405 | 10.29 | 0.055 | 1.40 | 0.518 | 13.16 | 6 | 1.127 | 28.63 | 1.337 | 33.96 | 0.050 | 1.27 | 1.437 | 36.50 | 1823 | 2713 |
3/0 | 0.454 | 11.53 | 0.055 | 1.40 | 0.567 | 14.40 | 4 | 1.233 | 31.32 | 1.443 | 36.65 | 0.050 | 1.27 | 1.543 | 39.19 | 2262 | 3366 |
4/0 | 0.510 | 12.95 | 0.055 | 1.40 | 0.623 | 15.82 | 4 | 1.354 | 34.39 | 1.664 | 42.27 | 0.060 | 1.52 | 1.784 | 45.31 | 2814 | 4187 |
250 | 0.558 | 14.17 | 0.065 | 1.65 | 0.691 | 17.55 | 4 | 1.501 | 38.13 | 1.811 | 46.00 | 0.060 | 1.52 | 1.931 | 49.05 | 3275 | 4874 |
350 | 0.661 | 16.79 | 0.065 | 1.65 | 0.794 | 20.17 | 3 | 1.723 | 43.76 | 2.033 | 51.64 | 0.060 | 1.52 | 2.153 | 54.69 | 4396 | 6542 |
500 | 0.790 | 20.07 | 0.065 | 1.65 | 0.923 | 23.44 | 2 | 2.002 | 50.85 | 2.312 | 58.72 | 0.075 | 1.91 | 2.462 | 62.53 | 6104 | 9083 |
750 | 0.968 | 24.59 | 0.080 | 2.03 | 1.131 | 28.73 | 1 | 2.455 | 62.36 | 2.765 | 70.23 | 0.075 | 1.91 | 2.915 | 74.04 | 8860 | 13184 |
4 cores | |||||||||||||||||
250 | 0.558 | 14.17 | 0.065 | 1.65 | 0.691 | 17.55 | 4 | 1.676 | 42.57 | 1.986 | 50.44 | 0.060 | 1.52 | 2.106 | 53.49 | 4204 | 6255 |
350 | 0.661 | 16.79 | 0.065 | 1.65 | 0.794 | 20.17 | 3 | 1.925 | 48.90 | 2.235 | 56.77 | 0.060 | 1.52 | 2.355 | 59.82 | 5647 | 8402 |
500 | 0.790 | 20.07 | 0.065 | 1.65 | 0.923 | 23.44 | 2 | 2.240 | 56.90 | 2.550 | 64.77 | 0.075 | 1.91 | 2.700 | 68.58 | 7857 | 11691 |
