VVR
Application and Description
Exposed wiring in air or use in raceway wet or dry location, direct burial in ground.
Reference Standard
TIS 11-2531

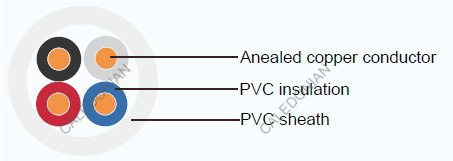

Cable Construction
Conductor: Solid and stranded annealed copper, Sizes: 0.5 mm2 up to 35 mm2
Insulation: Polyvinyl chloride (PVC)
color: Single core – Light gray
2 cores – Light gray and Black
3 cores – Light gray, Black and Red
4 cores – Light gray, Black, Red and Blue
Sheath: Polyvinyl chloride (PVC), white color
Technical Characteristics
Maximum conductor temperature 70oC
Circuit voltage not exceeding 300 volts
Test voltage 2000 volts
Cable Parameter
No. of core |
Nominal cross section area | Number And diameter of wire | Insulation thickness |
Sheath thickness |
Max overall diameter |
Minimum Insulation resistance at 70 0C | Maximum continuous current rating in free air | Cable weight |
mm2 |
No./mm |
mm | mm | mm | MΩ-Km |
A | Kg/Km |
|
1 |
0.5 | 1 / 0.80 |
0.6 | 0.9 | 4.4 | 0.0146 |
10 | 21 |
1 | 1 / 1.13 |
0.6 | 0.9 | 4.8 | 0.0115 |
15 | 28 | |
1 | 7 / 0.43 |
0.6 | 0.9 | 5.0 | 0.0110 |
15 | 30 | |
1.5 | 1 / 1.38 |
0.6 | 0.9 | 5.2 | 0.0100 |
19 | 34 | |
1.5 | 7 / 0.53 |
0.6 | 0.9 | 5.4 | 0.0094 |
19 | 37 | |
2.5 | 1 / 1.78 |
0.7 | 0.9 | 5.8 | 0.0092 |
26 | 48 | |
2.5 | 7 / 0.67 |
0.7 | 0.9 | 6.2 | 0.0084 |
26 | 50 | |
4 | 1 / 2.25 |
0.8 | 0.9 | 6.6 | 0.0086 |
35 | 65 | |
4 | 7 / 0.85 |
0.8 | 0.9 | 7.0 | 0.0078 |
35 | 70 | |
6 | 7 / 1.04 |
0.8 | 0.9 | 7.6 | 0.0066 |
46 | 95 | |
10 | 7 / 1.35 |
0.9 | 0.9 | 8.6 | 0.0059 |
64 | 140 | |
16 | 7 / 1.70 |
1.0 | 1.2 | 11.0 |
0.0053 |
87 | 220 | |
25 | 7 / 2.14 |
1.2 | 1.2 | 12.5 |
0.0051 |
117 | 330 | |
35 | 19 / 1.53 |
1.2 | 1.2 | 14.0 |
0.0043 |
144 | 430 | |
2 |
0.5 | 1 / 0.80 |
0.6 | 0.9 | 6.8 | 0.0146 |
9 | 48 |
1 | 1 / 1.13 |
0.6 | 0.9 | 7.6 | 0.0115 |
14 | 65 | |
1 | 7 / 0.43 |
0.6 | 0.9 | 8.0 | 0.0110 |
14 | 65 | |
1.5 | 1 / 1.38 |
0.6 | 1.2 | 8.8 | 0.0100 |
18 | 90 | |
1.5 | 7 / 0.53 |
0.6 | 1.2 | 9.2 | 0.0094 |
18 | 90 | |
2.5 | 1 / 1.78 |
0.7 | 1.2 | 10.0 |
0.0092 |
24 | 130 | |
2.5 | 7 / 0.67 |
0.7 | 1.2 | 11.0 |
0.0084 |
24 | 130 | |
4 | 1 / 2.25 |
0.8 | 1.2 | 11.5 |
0.0086 |
32 | 180 | |
4 | 7 / 0.85 |
0.8 | 1.2 | 12.5 |
0.0078 |
32 | 180 | |
6 | 7 / 1.04 |
0.8 | 1.2 | 13.5 |
0.0066 |
43 | 260 | |
10 | 7 / 1.35 |
0.9 | 1.2 | 16.0 |
0.0059 |
60 | 390 | |
16 | 7 / 1.70 |
1.0 | 1.4 | 19.0 |
0.0053 |
80 | 580 | |
25 | 7 / 2.14 |
1.2 | 1.4 | 22.5 |
0.0051 |
107 | 870 | |
35 | 19 / 1.53 |
1.2 | 1.4 | 25.5 |
0.0043 |
132 | 1130 |
|
3 |
0.5 | 1 / 0.80 |
0.6 | 0.9 | 7.2 | 0.0146 |
7 | 55 |
1 | 1 / 1.13 |
0.6 | 0.9 | 8.0 | 0.0115 |
11 | 80 | |
1 | 7 / 0.43 |
0.6 | 0.9 | 8.4 | 0.0110 |
11 | 80 | |
1.5 | 1 / 1.38 |
0.6 | 1.2 | 9.2 | 0.0100 |
15 | 110 | |
1.5 | 7 / 0.53 |
0.6 | 1.2 | 9.6 | 0.0094 |
15 | 110 | |
2.5 | 1 / 1.78 |
0.7 | 1.2 | 10.5 |
0.0092 |
20 | 160 | |
2.5 | 7 / 0.67 |
0.7 | 1.2 | 11.5 |
0.0084 |
20 | 160 | |
4 | 1 / 2.25 |
0.8 | 1.2 | 12.5 |
0.0086 |
27 | 230 | |
4 | 7 / 0.85 |
0.8 | 1.2 | 13.0 |
0.0078 |
27 | 230 | |
6 | 7 / 1.04 |
0.8 | 1.2 | 14.5 |
0.0066 |
36 | 330 | |
10 | 7 / 1.35 |
0.9 | 1.2 | 17.0 |
0.0059 |
50 | 490 | |
16 | 7 / 1.70 |
1.0 | 1.4 | 20.0 |
0.0053 |
67 | 740 | |
25 | 7 / 2.14 |
1.2 | 1.8 | 25.0 |
0.0051 |
90 | 1180 |
|
35 | 19 / 1.53 |
1.2 | 1.8 | 28.0 |
0.0043 |
110 | 1530 |
|
4 |
0.5 | 1 / 0.80 |
0.6 | 0.9 | 7.8 | 0.0146 |
7 | 65 |
1 | 1 / 1.13 |
0.6 | 0.9 | 8.6 | 0.0115 |
10 | 100 | |
1 | 7 / 0.43 |
0.6 | 0.9 | 9.0 | 0.0110 |
10 | 100 | |
1.5 | 1 / 1.38 |
0.6 | 1.2 | 10.0 |
0.0100 |
13 | 130 | |
1.5 | 7 / 0.53 |
0.6 | 1.2 | 10.5 |
0.0094 |
13 | 130 | |
2.5 | 1 / 1.78 |
0.7 | 1.2 | 11.5 |
0.0092 |
18 | 190 | |
2.5 | 7 / 0.67 |
0.7 | 1.2 | 12.5 |
0.0084 |
18 | 190 | |
4 | 1 / 2.25 |
0.8 | 1.2 | 13.5 |
0.0086 |
25 | 290 | |
4 | 7 / 0.85 |
0.8 | 1.2 | 14.0 |
0.0078 |
25 | 290 | |
6 | 7 / 1.04 |
0.8 | 1.2 | 15.5 |
0.0066 |
33 | 410 | |
10 | 7 / 1.35 |
0.9 | 1.4 | 19.0 |
0.0059 |
45 | 640 | |
16 | 7 / 1.70 |
1.0v |
1.4 | 22.0 |
0.0053 |
60 | 940 | |
25 | 7 / 2.14 |
1.2 | 1.8 | 27.5 |
0.0051 |
81 | 1490 |
|
35 | 19 / 1.53 |
1.2 | 1.8 | 30.5 |
0.0043 |
99 | 1950 |
