VVR-GRD
Application and Description
For exposed wiring in air or use raceway, dry location.
Reference Standard
TIS 11-2531

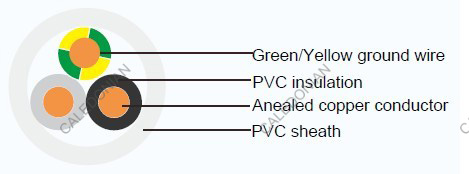

Cable Construction
Conductor: Solid and stranded annealed copper, Sizes: 1 mm2 up to 35 mm2
Insulation: Polyvinyl chloride (PVC)
Color : Light grey, Black, Ground core:Green/Yellow
Sheath: Polyvinyl chloride (PVC), white color
Technical Characteristics
Maximum conductor temperature 70oC
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts
Cable Parameter
No. of core | Conductor | Ground Conductor | Thickness of Sheath | Overall diameter | Maximum continuous current rating in free air | Minimum insulation resistance (at 70°C) | Cable weight | ||||
Size | No.& dia. of wires | Thickness of insulation | Size | No.& dia. of wires | Thickness of insulation | ||||||
mm2 | No./mm | mm | mm2 | No./mm | mm | mm | mm | A | Mohm-km | Kg/Km | |
2+1 |
1 | 1/1.13 |
0.6 | 1 | 1/1.13 |
0.6 | 0.9 |
8 | 15 | 0.0115 |
80 |
2+1 |
1 | 7/0.40 |
0.6 | 1 | 7/0.40 |
0.6 | 0.9 |
8.4 | 15 | 0.011 |
80 |
2+1 |
1.5 |
1/1.38 |
0.6 | 1 | 1/1.13 |
0.6 | 1.2 |
9.2 | 20 | 0.01 |
100 |
2+1 |
1.5 |
7/0.50 |
0.6 | 1 | 7/0.40 |
0.6 | 1.2 |
9.6 | 20 | 0.0094 |
100 |
2+1 |
2.5 |
1/1.78 |
0.7 | 1.5 |
1/1.38 |
0.6 | 1.2 |
10.5 |
25 | 0.0092 |
140 |
2+1 |
2.5 |
7/0.67 |
0.7 | 1.5 |
7/0.50 |
0.6 | 1.2 |
11.5 |
25 | 0.0084 |
140 |
2+1 |
4 | 1/2.25 |
0.8 | 2.5 |
1/1.78 |
0.6 | 1.2 |
12.5 |
33 | 0.0086 |
200 |
2+1 |
4 | 7/0.85 |
0.8 | 2.5 |
7/0.67 |
0.6 | 1.2 |
13 | 33 | 0.0078 |
200 |
2+1 |
6 | 7/1.04 |
0.8 | 4 | 7/0.85 |
0.6 | 1.2 |
14.5 |
45 | 0.0066 |
290 |
2+1 |
10 |
7/1.35 |
0.9 | 4 | 7/0.85 |
0.6 | 1.2 |
16 | 62 | 0.0059 |
410 |
2+1 |
16 |
7/1.70 |
1 | 6 | 7/1.04 |
0.6 | 1.4 |
19 | 81 | 0.0053 |
610 |
2+1 |
25 |
7/2.14 |
1.2 | 6 | 7/1.04 |
0.6 | 1.4 |
22.5 |
109 | 0.0051 |
880 |
2+1 |
35 |
19/1.53 |
1.2 | 10 |
7/1.35 |
0.6 | 1.4 |
25.5 |
134 | 0.0043 |
1176 |
3+1 |
1 | 1/1.13 |
0.6 | 1 | 1/1.13 |
0.6 | 0.9 |
8.6 | 13 | 0.0115 |
95 |
3+1 |
1 | 7/0.40 |
0.6 | 1 | 7/0.40 |
0.6 | 0.9 |
9 | 13 | 0.011 |
95 |
3+1 |
1.5 |
1/1.38 |
0.6 | 1 | 1/1.13 |
0.6 | 1.2 |
10 | 17 | 0.01 |
130 |
3+1 |
1.5 |
7/0.50 |
0.6 | 1 | 7/0.40 |
0.6 | 1.2 |
10.5 |
17 | 0.0094 |
130 |
3+1 |
2.5 |
1/1.78 |
0.7 | 1.5 |
1/1.38 |
0.6 | 1.2 |
11.5 |
21 | 0.0092 |
180 |
3+1 |
2.5 |
7/0.67 |
0.7 | 1.5 |
7/0.50 |
0.6 | 1.2 |
12.5 |
21 | 0.0084 |
180 |
3+1 |
4 | 1/2.25 |
0.8 | 2.5 |
1/1.78 |
0.6 | 1.2 |
13.5 |
30 | 0.0086 |
260 |
3+1 |
4 | 7/0.85 |
0.8 | 2.5 |
7/0.67 |
0.6 | 1.2 |
14 | 30 | 0.0078 |
260 |
3+1 |
6 | 7/1.04 |
0.8 | 4 | 7/0.85 |
0.6 | 1.2 |
15.5 |
38 | 0.0066 |
370 |
3+1 |
10 |
7/1.35 |
0.9 | 4 | 7/0.85 |
0.6 | 1.2 |
18.5 |
53 | 0.0059 |
530 |
3+1 |
16 |
7/1.70 |
1 | 6 | 7/1.04 |
0.6 | 1.4 |
22 | 71 | 0.0053 |
800 |
3+1 |
25 |
7/2.14 |
1.2 | 6 | 7/1.04 |
0.6 | 1.8 |
27.5 |
93 | 0.0051 |
1220 |
3+1 |
35 |
19/1.53 |
1.2 | 10 |
7/1.35 |
0.6 | 1.8 |
30.5 |
113 | 0.0043 |
1610 |
4+1 |
1 | 1/1.13 |
0.6 | 1 | 1/1.13 |
0.6 | 0.9 |
9.2 |
12 | 0.0115 |
110 |
4+1 |
1 | 7/0.40 |
0.6 | 1 | 7/0.40 |
0.6 | 0.9 |
9.8 |
12 | 0.011 |
110 |
4+1 |
1.5 |
1/1.38 |
0.6 | 1 | 1/1.13 |
0.6 | 1.2 |
11 | 15 | 0.01 |
150 |
4+1 |
1.5 |
7/0.50 |
0.6 | 1 | 7/0.40 |
0.6 | 1.2 |
11.5 |
15 | 0.0094 |
150 |
4+1 |
2.5 |
1/1.78 |
0.7 | 1.5 |
1/1.38 |
0.6 | 1.2 |
12.5 |
19 | 0.0092 |
220 |
4+1 |
2.5 |
7/0.67 |
0.7 | 1.5 |
7/0.50 |
0.6 | 1.2 |
13.5 |
19 | 0.0084 |
220 |
4+1 |
4 | 1/2.25 |
0.8 | 2.5 |
1/1.78 |
0.6 | 1.2 |
14.5 |
27 | 0.0086 |
330 |
4+1 |
4 | 7/0.85 |
0.8 | 2.5 |
7/0.67 |
0.6 | 1.2 |
15.5 |
27 | 0.0078 |
330 |
4+1 |
6 | 7/1.04 |
0.8 | 4 | 7/0.85 |
0.6 | 1.2 |
17 | 37 | 0.0066 |
470 |
4+1 |
10 |
7/1.35 |
0.9 | 4 | 7/0.85 |
0.6 | 1.4 |
20.5 |
49 | 0.0059 |
700 |
4+1 |
16 |
7/1.70 |
1 | 6 | 7/1.04 |
0.6 | 1.4 |
24.5 |
64 | 0.0053 |
1030 |
4+1 |
25 |
7/2.14 |
1.2 | 6 | 7/1.04 |
0.6 | 1.8 |
30 | 84 | 0.0051 |
1570 |
4+1 |
35 |
19/1.53 |
1.2 | 10 |
7/1.35 |
0.6 | 1.8 |
33.5 |
102 | 0.0043 |
2070 |
