VVF-GRD
Application and Description
For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above
ceiling, embedded in plaster.
Reference Standard
TIS 11-2531

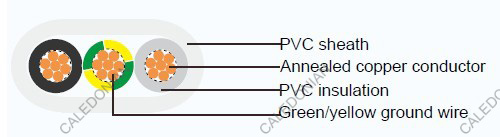

Cable Construction
Conductor: Solid and stranded annealed copper, Sizes: 1 mm2 up to 35 mm2
Insulation: Polyvinyl chloride (PVC)
Color : Light grey, Black, Ground core:Green/Yellow
Sheath: Polyvinyl chloride (PVC), white color
Technical Characteristics
Maximum conductor temperature 70oC
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts
Cable Parameter
No. of cores |
Conductor | Ground Conductor | Thickness of Sheath | Overall diameter |
Maximum continuous current rating in free air | Minimum insulation resistance (at 70°c) |
Cable weight |
|||||
size | No.& dia.of wire | Thickness of insulation | size | No.& dia.of wire | Thickness of insulation | lower limit | upper limit | |||||
mm² | mm | mm | mm | mm | mm | A | MOhm/km | kg / km | ||||
2+1 |
1 | 1/1.13 |
0.8 |
1 | 1/1.13 |
0.6 |
1.4 |
5.2 x 10.0 |
6.4 x 12.0 |
13 | 0.0141 |
100 |
2+1 |
1 | 7/0.40 |
0.8 |
1 | 7/0.40 |
0.6 |
1.4 |
5.4 x 10.0 |
6.6 x 12.5 |
13 | 0.0135 |
100 |
2+1 |
1.5 |
1/1.38 |
0.8 |
1 | 1/1.13 |
0.6 |
1.4 |
5.6 x 10.5 |
6.6 x 12.5 |
17 | 0.0123 |
120 |
2+1 |
1.5 |
7/0.50 |
0.8 |
1 | 7/0.40 |
0.6 |
1.4 |
5.6 x 11.0 |
7.0 x 13.0 |
17 | 0.0116 |
120 |
2+1 |
2.5 |
1/1.78 |
0.8 |
1.5 |
1/1.38 |
0.6 |
1.4 |
5.8 x 11.5 |
7.2 x 14.0 |
22 | 0.0102 |
150 |
2+1 |
2.5 |
7/0.67 |
0.8 |
1.5 |
7/0.50 |
0.6 |
1.4 |
6.2 x 12.0 |
7.4 x 14.5 |
22 | 0.0093 |
150 |
2+1 |
4 | 1/2.25 |
0.9 |
2.5 |
1/1.78 |
0.6 |
1.4 |
6.6 x 13.0 |
7.8 x 15.5 |
30 | 0.0094 |
210 |
2+1 |
4 | 7/0.85 |
0.9 |
2.5 |
7/0.67 |
0.6 |
1.4 |
6.8 x14.0 |
8.2 x 16.5 |
30 | 0.0085 |
210 |
2+1 |
6 | 7/1.04 |
0.9 |
4 | 7/0.85 |
0.6 |
1.4 |
7.4 x 15.5 |
8.8 x 18.5 |
39 | 0.0073 |
290 |
2+1 |
10 |
7/1.35 |
1.1 |
4 | 7/0.85 |
0.6 |
1.5 |
8.8 x 18.5 |
10.5 x 21.5 |
53 | 0.0069 |
420 |
2+1 |
16 |
7/1.70 |
1.1 |
6 | 7/1.04 |
0.6 |
1.5 |
9.8 x 21.0 |
11.5 x 24.5 |
69 | 0.0057 |
590 |
2+1 |
25 |
7/2.14 |
1.3 |
6 | 7/1.04 |
0.6 |
1.6 |
11.5 x 24.5 |
13.5 x 28.0 |
92 | 0.0054 |
840 |
2+1 |
35 |
19/1.53 |
1.3 |
10 |
7/1.35 |
0.6 |
1.7 |
13.0 x 28.0 |
15.0 x 32.0 |
112 | 0.0047 |
1120 |
|
