VV



Application and Description
For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster.



Reference Standard
TIS 11-2531



Cable Construction

Conductor: Solid and stranded annealed copper, Sizes: 1 mm2 up to 35 mm2
Insulation: Polyvinyl chloride (PVC), light gray color
Sheath: Polyvinyl chloride (PVC), white color

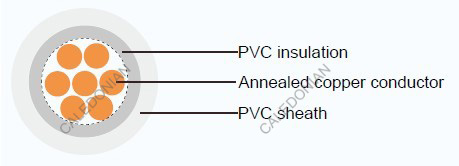

Industrial Cables VV



Technical Characteristics

Maximum conductor temperature 70oC
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts



Cable Parameter

No. of cores

Conductor

Insulation thickness

Sheath thickness

Overall diameter

Maximum continuous current rating in free air

Minimum insulation resistance (at 70°c)

Cable weight

size No.& dia.of wire

mm²

mm

mm

mm

mm

A

MOhm/km

kg / km

1

1

1/1.13

0.8 1 5.4 15

0.0141

35

1

1

7/0.40

0.8 1 5.6 15

0.0135

35

1

1.5

1/1.38

0.8 1 5.8 20

0.0123

41

1

1.5

7/0.50

0.8 1 6 20

0.0116

41

1

2.5

1/1.78

0.8 1.2 6.6 27

0.0102

60

1

2.5

7/0.67

0.8 1.2 7 27

0.0093

60

1

4

1/2.25

0.9 1.2 7.4 36

0.0094

80

1

4

7/0.85

0.9 1.2 7.8 36

0.0085

80

1

6

7/1.04

0.9 1.4 8.8 47

0.0073

120

1

10

7/1.35

1.1 1.4

10.5

66

0.0069

170

1

16

7/1.70

1.1 1.5

11.5

88

0.0057

250

1

25

7/2.14

1.3 1.5

13.5

118

0.0054

360

1

35

19/1.53

1.3 1.6 15 145

0.0047

470
