Spanish Standard Industrial Cables
Z1Z1-K(AS)
Application and Description
These cables are high security cables. In case of fire, they emit limited toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended used in domestic premises, kitchens, offices; or for household appliances, even those in damp places; for medium mechanical stress (e.g. washing machines, refrigerators).
Standard and Approval
UNE 21031, EN 60332, EN 60332-1, EN 50268, EN 50267-2, EN 61034, IEC 60332-1, IEC 60332-3, IEC 61034, IEC 60331

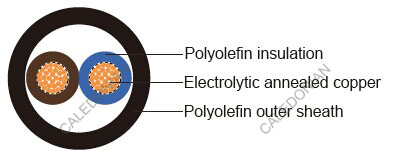

Cable Construction
- Flexible electrolytic annealed copper conductor
- Class 5 in accordance with IEC 60228
- Polyolefin insulation type TI6 according to UNE 21031-14
- Color coded to HD 308
- FRLSHF polyolefin outer sheath type TI6 according to UNE 21031-14
Technical Characteristics
- Working voltage: 300/500 volts 600/1000volts
- Test voltage: 2000 volts(300/500 volts)
3500 volts(600/1000 volts)
- Minimum bending radius: 5x Ø
- Working temperature: -15º C to +90º C
- Fixed temperature: -40º C to +90º C
- Flame retardant: EN50265-1/EN 60332-1
- Fire retardant: EN50266-2/IEC 60332-3
- Halogen-free: EN50267/EN 50267-2-1
- Low smoke opacity: EN 50268/IEC 61034
- Low corrosiveness gases: EN 50267-2-2
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Overall Diameter mm | Nominal Weight kg/km |
---|---|---|---|
300/500V | |||
20(16/32) | 2x0.5 | 5.8 | 42 |
20(16/32) | 3G0.5 | 6.2 | 51 |
20(16/32) | 4G0.5 | 7.2 | 69 |
20(16/32) | 5G0.5 | 8.2 | 89 |
20(16/32) | 6G0.5 | 9 | 111 |
20(16/32) | 7G0.5 | 9 | 115 |
20(16/32) | 8G0.5 | 9.9 | 132 |
20(16/32) | 10G0.5 | 11.9 | 185 |
20(16/32) | 12G0.5 | 12.3 | 203 |
20(16/32) | 14G0.5 | 12.6 | 219 |
20(16/32) | 16G0.5 | 13.3 | 246 |
20(16/32) | 20G0.5 | 14.5 | 296 |
20(16/32) | 24G0.5 | 16.5 | 376 |
20(16/32) | 30G0.5 | 17.2 | 425 |
20(16/32) | 37G0.5 | 18.8 | 512 |
20(16/32) | 40G0.5 | 19.2 | 530 |
20(16/32) | 50G0.5 | 21.3 | 680 |
20(16/32) | 60G0.5 | 23.2 | 780 |
18(24/32) | 2x0.75 | 6.6 | 56 |
18(24/32) | 3G0.75 | 6.8 | 65 |
18(24/32) | 4G0.75 | 7.6 | 83 |
18(24/32) | 5G0.75 | 8.6 | 105 |
18(24/32) | 6G0.75 | 9.7 | 132 |
18(24/32) | 7G0.75 | 9.7 | 138 |
18(24/32) | 8G0.75 | 10.4 | 158 |
18(24/32) | 10G0.75 | 12.2 | 212 |
18(24/32) | 12G0.75 | 12.6 | 234 |
18(24/32) | 14G0.75 | 13.4 | 268 |
18(24/32) | 16G0.75 | 14.2 | 302 |
18(24/32) | 20G0.75 | 15.5 | 366 |
18(24/32) | 24G0.75 | 17.7 | 465 |
18(24/32) | 30G0.75 | 18.9 | 546 |
18(24/32) | 37G0.75 | 20.7 | 661 |
18(24/32) | 40G0.75 | 21.5 | 681 |
18(24/32) | 50G0.75 | 23.3 | 855 |
18(24/32) | 60G0.75 | 24.8 | 1025 |
17(32/32) | 2x1 | 7 | 66 |
17(32/32) | 3G1 | 7.2 | 76 |
17(32/32) | 4G1 | 8.1 | 98 |
17(32/32) | 5G1 | 8.9 | 120 |
17(32/32) | 6G1 | 10.3 | 156 |
17(32/32) | 7G1 | 10.3 | 164 |
17(32/32) | 8G1 | 11.2 | 192 |
17(32/32) | 10G1 | 13.2 | 257 |
17(32/32) | 12G1 | 13.6 | 284 |
17(32/32) | 14G1 | 14 | 311 |
17(32/32) | 16G1 | 14.8 | 351 |
17(32/32) | 20G1 | 16.5 | 437 |
17(32/32) | 24G1 | 19 | 560 |
17(32/32) | 30G1 | 19.8 | 639 |
17(32/32) | 37G1 | 21.6 | 772 |
17(32/32) | 40G1 | 22.8 | 835 |
17(32/32) | 50G1 | 25.9 | 1100 |
17(32/32) | 60G1 | 27.8 | 1276 |
600/1000V | |||
16(30/30) | 2 x 1.5 | 8.1 | 93 |
16(30/30) | 3 G 1.5 | 8.6 | 110 |
16(30/30) | 4 G 1.5 | 9.4 | 132 |
16(30/30) | 5 G 1.5 | 9.9 | 150 |
16(30/30) | 6 G 1.5 | 11.5 | 188 |
16(30/30) | 7 G 1.5 | 11.5 | 197 |
16(30/30) | 8 G 1.5 | 12.1 | 220 |
16(30/30) | 10 G 1.5 | 14.2 | 286 |
16(30/30) | 12 G 1.5 | 14.7 | 317 |
16(30/30) | 14 G 1.5 | 15.4 | 353 |
16(30/30) | 16 G 1.5 | 16.4 | 398 |
16(30/30) | 20 G 1.5 | 18.1 | 484 |
16(30/30) | 24 G 1.5 | 20.8 | 608 |
16(30/30) | 25 G 1.5 | 20.8 | 630 |
16(30/30) | 27 G 1.5 | 21.2 | 649 |
16(30/30) | 30 G 1.5 | 21.7 | 694 |
16(30/30) | 37 G 1.5 | 23.9 | 839 |
16(30/30) | 44 G 1.5 | 25.9 | 985 |
16(30/30) | 52 G 1.5 | 28.1 | 1205 |
16(30/30) | 60 G 1.5 | 30.2 | 1335 |
14(50/30) | 2 x 2.5 | 9 | 119 |
14(50/30) | 3 G 2.5 | 9.6 | 144 |
14(50/30) | 4 G 2.5 | 10.5 | 175 |
14(50/30) | 5 G 2.5 | 11.1 | 201 |
14(50/30) | 6 G 2.5 | 12.7 | 250 |
14(50/30) | 7 G 2.5 | 12.9 | 265 |
14(50/30) | 8 G 2.5 | 13.6 | 300 |
14(50/30) | 10 G 2.5 | 16.3 | 399 |
14(50/30) | 12 G 2.5 | 16.7 | 440 |
14(50/30) | 14 G 2.5 | 18.1 | 490 |
14(50/30) | 16 G 2.5 | 18.5 | 553 |
14(50/30) | 20 G 2.5 | 20.5 | 677 |
14(50/30) | 24 G 2.5 | 23.6 | 850 |
14(50/30) | 25 G 2.5 | 23.6 | 888 |
14(50/30) | 27 G 2.5 | 24.2 | 918 |
14(50/30) | 30 G 2.5 | 24.7 | 983 |
14(50/30) | 37 G 2.5 | 25.9 | 1193 |
12(56/28) | 7 G 4 | 15.5 | 395 |
10(84/28) | 7 G 6 | 18.1 | 527 |
8(80/26) | 7 G 10 | 23.6 | 728 |
6(128/26) | 7 G 16 | 27.2 | 1043 |
