Spanish Standard Industrial Cables
VC4V-K
Application and Description
These flexible shielded cables with braided copper wire and are resistant to mineral oils. For use inside buildings, especially for connecting parts of machines used for manufacturing, including machine tools. Recommended in installations requiring electromagnetic protection to avoid the generation of parasite currents in other circuits. Easy to handle during installation and laying, they are rodent-proof.
Standard and Approval
UNE 21031-13, IEC 60332-1, IEC 60332-1, EN 50265, IEC 60502, IEC 60228

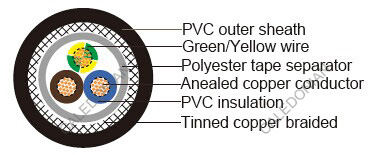

Cable Construction
- Flexible annealed copper conductor
- Class 5 in accordance with IEC 60228.
- Polyvinyl chloride (PVC)
- Color coded to HD 308
- Polyester tape separator
- High coverage tinned copper braided screen
- Acrylic polyvinyl chloride (flexible PVC)
Technical Characteristics
- Working voltage: 300/500vots 600/1000 volts
- Test voltage: 2500 volts(600/1000 volts)
- Minimum bending radius: 5 x Ø
- Working temperature: -15º C to +70º C
- Short circuit temperature: +160º C
- Insulation resistance: 20 MΩ x km
- Flame retardant: IEC 60332-1, EN 50265-2-1
- Non-flame propagating: IEC 60332-3, EN 50266-2
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter mm |
Nominal Weight kg/km | |
---|---|---|---|---|
300/500V | ||||
17(32/32) | 2x1 | 7.7 | 76 | |
16(30/30) | 2x1.5 | 8.6 | 95 | |
14(50/30) | 2x2.5 | 9.8 | 121 | |
17(32/32) | 3G1 | 8.1 | 88 | |
16(30/30) | 3G1.5 | 9.3 | 124 | |
14(50/30) | 3G2.5 | 10.9 | 174 | |
17(32/32) | 4G1 | 8.8 | 114 | |
16(30/30) | 4G1.5 | 9.8 | 138 | |
14(50/30) | 4G2.5 | 11.8 | 213 | |
17(32/32) | 5G1 | 9.6 | 140 | |
16(30/30) | 5G1.5 | 11.1 | 185 | |
17(32/32) | 6G1 | 10.8 | 172 | |
16(30/30) | 6G1.5 | 12.2 | 224 | |
17(32/32) | 8G1 | 12 | 218 | |
16(30/30) | 8G1.5 | 14 | 288 | |
17(32/32) | 10G1 | 13.1 | 239 | |
17(32/32) | 12G1 | 13.4 | 271 | |
16(30/30) | 12G1.5 | 15.7 | 358 | |
17(32/32) | 16G1 | 14.9 | 350 | |
17(32/32) | 19G1 | 15.9 | 402 | |
16(30/30) | 24G1.5 | 22 | 723 | |
600/1000V | ||||
14(50/30) | 2x2.5 | 9.6 | 121 | |
14(50/30) | 3G2.5 | 10.8 | 162 | |
14(50/30) | 4G2.5 | 11.7 | 204 | |
14(50/30) | 5G2.5 | 12.8 | 243 | |
14(50/30) | 7G2.5 | 13.8 | 305 | |
12(56/28) | 4G4.0 | 12.6 | 272 | |
10(84/28) | 4G6.0 | 14.4 | 358 | |
8(80/26) | 4G10 | 17.5 | 570 | |
6(128/26) | 4G16 | 20.1 | 814 | |
4(200/26) | 4G25 | 24.5 | 1224 | |
2(280/26) | 4G35 | 28.2 | 1654 | |
1(400/26) | 4G50 | 32.3 | 2249 | |
2/0(356/24) | 4G70 | 37.5 | 3102 | |
3/0(485/24) | 4G95 | 42.5 | 3931 |
