Spanish Standard Industrial Cables
SZ1-K (AS+) 0.6/1kV
Application and Description
These cables are specially designed to transmit electric power in the extreme conditions that there are in a large fire, assuring electric supply to emergency circuits, like signaling light, fume extractors, acustic alarms, water pumps, etc. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic in public places such as: hospitals, schools, museums, airport, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.
Standard and Approval
UNE 211025, IEC 60502, EN 60332-1, EN 50266, EN 50267-1, EN 50267-2, EN 61034, IEC 60332-1, IEC 60332-3, IEC 60754-1, IEC 60754-2, IEC 61034, IEC 60331

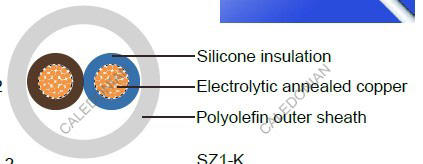

Cable Construction
- Flexible electrolytic annealed copper conductor
- Class 5 in accordance with IEC 60228.
- Silicone insulation, type EI2, according to UN-EN 50363.
- Color coded to HD 308
- Thermoplastic polyolefin outer sheath according to UNE 21123
Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 2000 volts
- Minimum bending radius: 5 x Ø
- Working temperature: -15º C to +90º C
- Short circuit temperature: +250º C
- Insulation resistance: 20 MΩ x km
- Halogen free: IEC 60754-1, EN 50267-2-1
- No corrosive gases: IEC 60754-2, EN 50267-2-2
- Low smoke density: IEC 61034, EN 50268-2
- Flame retardant: IEC 60332-1, EN 50265-2-1
- Non-flame propagating: IEC 60332-3, EN 50266-2
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Overall Diameter mm |
Nominal Weight kg/km | AWG | No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
---|---|---|---|---|---|---|---|
14(50/30) | 1×2.5 | 6.5 | 70 | 12(56/28) | 3G4 | 13.2 | 255 |
12(56/28) | 1×4 | 7.3 | 90 | 10(84/28) | 3G6 | 14.4 | 370 |
10(84/28) | 1×6 | 7.8 | 115 | 8(80/26) | 3G10 | 16.5 | 530 |
8(80/26) | 1×10 | 8.8 | 165 | 6(128/26) | 3G16 | 18.6 | 740 |
6(128/26) | 1×16 | 9.9 | 225 | 6(128/26) | 3×16 | 18.6 | 740 |
4(200/26) | 1×25 | 11.0 | 310 | 4(200/26) | 3×25 | 23.4 | 1040 |
2 (280/26) | 1×35 | 12.2 | 410 | 12(56/28) | 3G4 | 13.2 | 255 |
1(400/26) | 1×50 | 13.6 | 550 | 16(30/30) | 4G1.5 | 11.1 | 170 |
2/0(356/24) | 1×70 | 15.7 | 760 | 14(50/30) | 4G2.5 | 12.6 | 230 |
3/0(485/24) | 1×95 | 17.5 | 980 | 12(56/28) | 4G4 | 14.4 | 315 |
4/0(614/24) | 1×120 | 19.5 | 1235 | 10(84/28) | 4G6 | 15.7 | 450 |
300 MCM (765/24) | 1×150 | 21.5 | 1530 | 8(80/26) | 4G10 | 18.0 | 660 |
350 MCM (944/24) | 1×185 | 23.4 | 1835 | 6(128/26) | 4G16 | 20.4 | 925 |
500MCM (1225/24) | 1×240 | 26.6 | 2495 | 6(128/26) | 4×16 | 20.4 | 925 |
- | 1×300 | 30.2 | 2895 | 4(200/26) | 4×25 | 23,4 | 1310 |
- | 1×400 | 34.8 | 3935 | 2(280/26) | 4×50 | 30.0 | 2375 |
16(30/30) | 2×1.5 | 9.8 | 140 | 8(80/26) | 5G1.5 | 12.1 | 205 |
14(50/30) | 2×2.5 | 11.1 | 185 | 14(50/30) | 5G2.5 | 13.7 | 285 |
12(56/28) | 2×4 | 12.5 | 245 | 12(56/28) | 5G4 | 15.7 | 390 |
10(84/28) | 2×6 | 13.6 | 305 | 10(84/28) | 5G6 | 17.2 | 555 |
8(80/26) | 2×10 | 15.5 | 430 | 8(80/26) | 5G10 | 19.8 | 815 |
6(128/26) | 2×16 | 17.5 | 585 | 6(128/26) | 5G16 | 22.5 | 1140 |
4(200/26) | 2×25 | 20.0 | 810 | 4(200/26) | 5G25 | 25.9 | 1620 |
16(30/30) | 3G1.5 | 10.3 | 140 | 2 (280/26) | 5×35 | 27.4 | 1960 |
14(50/30) | 3G2.5 | 11.7 | 190 | 1(400/26) | 5×50 | 33.5 | 2885 |
