Spanish Standard Industrial Cables
RVFV & VVFV / RVFV-K & VVFV-K

Application and Description

These cables are especially suitable for fixed installations that may be subject to mechanical aggression. They are highly recommended for use in installations in warehouses, production plants and agricultural facilities where the presence of rodents could imply a threat to cable integrity. At the same time, its use is recommended for street lighting installations. In some cases, these cables are used in those places where there is a potential explosion hazard such as petrol stations or flammable product warehouses.

Standard and Approval

UNE 21123-2, IEC 60502, EN 60332-1, IEC 60332-1

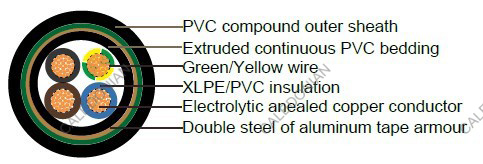

Cable Construction

- Rigid electrolytic annealed copper conductor
- Class 1 (up to 4 mm2 ) or 2 (from 6 mm2 upwards) in accordance with IEC 60228
- Class 5 for (RVFV-K/VVFV-K) in accordance with IEC 60228
- XLPE insulation (RVFV/RVFV-K) or PVC insulation (VVFV/ VVFV-K) according to IEC 60502
- up to 5 conductors: by colors (RVFV/RVFV-K)
- 6 or more conductors: black numbered + green/yellow. (VVFV/VVFV-K)
- Extruded continuous PVC bedding type ST1/ST2 of standard IEC 60502.
- Double steel or aluminum tape armour
- Flexible PVC compound outer sheath type ST1/ST2 of standard IEC 60502



Industrial Cables RVFV & VVFV / RVFV-K & VVFV-K



Technical Characteristics

- Working voltage: 600/1000 volts
- Test voltage: 2000 volts
- Minimum bending radius: 10 x Ø
- Working temperature: -15º C to +90º C
- Short circuit temperature: +250º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area
# x mm²		 Nominal Overall Diameter
mm 		Nominal Weight
kg/Km		 AWG No. of Cores x Nominal Cross Sectional Area
# x mm²		 Nominal Overall Diameter
mm 		Nominal Weight
kg/Km
6 1×16 14.4 345 3/0 3×95/50 41.3 4613
4 1×25 16 477 4/0 3×120/70 46.9 6,023
2 1×35 17.3 582 300MCM 3×150/70 54.7 7455
1 1×50 18.5 722 350MCM 3×185/95 55.1 8890
2/0 1×70 20.7 962 500MCM 3×240/120 62.5 11055
3/0 1×95 22.1 1173 16 4×1.5 13.2 275
4/0 1×120 24.6 1522 14 4×2.5 14.4 339
300MCM 1×150 26.5 1821 12 4×4 15.1 419
350MCM 1×185 28.5 2230 10 4×6 17.3 545
500MCM 1×240 31.7 2,35 8 4×10 19.8 770
16 2×1.5 12.3 227 6 4×16 22.3 1062
14 2×2.5 12.8 259 4 4×25 26.5 1602
12 2×4 13.6 311 16 5×1.5 14.4 320
10 2×6 15.8 411 14 5×2.5 15.3 390
8 2×10 17.8 552 12 5×4 17.2 509
6 2×16 19.6 726 10 5×6 18.8 640
16 3×1.5 12.8 252 8 5×10 21.3 909
14 3×2.5 13.3 293 6 5×16 25.2 1304
12 3×4 14.5 367 16 6×1.5 15.8 394
10 3×6 16.3 468 16 7×1.5 15.8 412
8 3×10 18.3 641 16 10×1.5 17.8 521
6 3×16 20.4 870 16 12×1.5 19.2 603
6 3×16/10 21.5 996 16 16×1.5 20.8 714
4 3×25/16 25.1 1468 16 19×1.5 21.8 792
2 3×35/16 27.9 1854 16 24×1.5 23.3 914
1 3×50/25 29.6 2101 16 27×1.5 25.4 1015
2/0 3×70/35 37.8 3683
