Spanish Standard Industrial Cables
RHVMV

RHVMV AS strandard Industrial Cables

Application and Description

This 3 conductor cable can be used for indoor and outdoor applications consists of three phases, usually used in power networks, it also can be Installed in conduit and direct burial.

Standard and Approval

IEC 60502, IEC 60332-3-24(C)

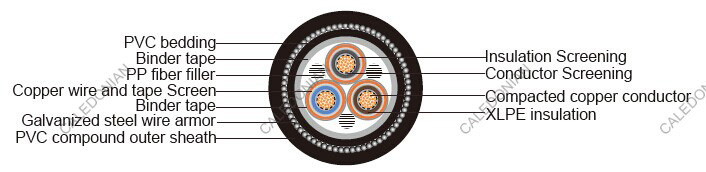

Cable Construction

- Compacted copper strands conductor
- Stands to IEC 60228 Class 2
- Semi-conducting conductor screen
- XLPE insulation according to IEC 60502
- Semi-conducting insulation screen
- Individual copper wire and tape screen
- PP fiber and PP tape filling
- Binder tape
- Extruded continuous PVC bedding type ST2 of standard IEC 60502
- Galvanized steel wire armour
- Flexible special PVC compound outer sheath type ST2 of standard IEC 60502

Technical Characteristics

- Working voltage: 6/10 KV
- Test voltage: 75 KV
- Minimum bending radius: 10 x Ø(fixed installation)
15x Ø(during operation)
- Working temperature: -10º C to +90º C
- Short circuit temperature: +250º C
- Flame retardant: IEC 60332.3
- Insulation resistance: 20 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area
# x mm²
Nominal
Thickness of Insulation mm
Nominal
Diameter over Insulation mm
Nominal
Diameter over Bedding mm
Nominal
Steel Wire Armour Diameter mm
Nominal Overall Diameter mm Nominal Weight kg/km
2/0 3 x 70.0 3.4 17.8 49.8 2.5 60.5 6650
3/0 3 x 95.0 3.4 19.5 53.4 2.5 64.0 7750
4/0 3 x 120.0 3.4 20.8 56.4 2.5 67.5 8800
350MCM 3 x 185.0 3.4 24.1 63.8 3.15 77.0 12250
500MCM 3 x 240.0 3.4 26.3 68.5 3.15 82.0 14450
