RHH or RHW, EPR/XLPO, 600 Volt
Application and Description
600 Volt EPR/XLPO Type RHH or RHW-2 or USE-2 is suited for use in mass
transit and general industry applications where flexibility, fire resistance,
and low smoke generation are concerns. May be installed in wet or dry
locations (including direct burial for size AWG 8 and larger) in cable trays or in
raceways. These cables are capable of operating continuously at a conductor
temperature not in excess of 90°C for normal operation, 130°C for emergency
overload conditions, and 250°C for circuit conditions.

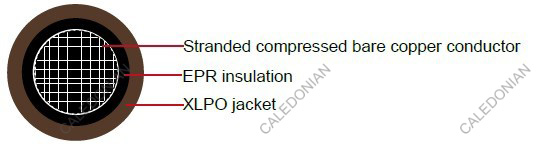

Cable Construction
Conductor:
Class B compressed concentric stranded bare copper in accordance with ASTM B3 and B8 and ICEA.
Insulation:
Being resistant to moisture, most oils, acids, and alkalies EPR (ethylene propylene rubber) insulation
Jacket:
Flame retardant, moisture and sunlight resistant XLPO
Color:
upon request, black is preferable
Technical Compliances
- UL 44 - Thermoset-Insulated Wires and Cables
- UL 1581 - UL Flame Exposure Test (VW-1)
- UL 1685 - UL Flame Exposure Test
- ICEA S-68-516 (NEMA WC8)
- RoHS
Cable Parameter
AWG or kcmil | Strand | Nominal Insulation Thickness Inch/mm | Nominal Jacket Thickness Inch/mm | Nominal Overall Diameter Inch/mm | Cable Weight Lbs/kft kg/km | ||||
2 | 7 | 0.045 | 1.14 | 0.030 | 0.76 | 0.445 | 11.3 | 250 | 372 |
1 | 19 | 0.055 | 1.40 | 0.045 | 1.14 | 0.524 | 13.3 | 335 | 499 |
1/0 | 19 | 0.055 | 1.40 | 0.045 | 1.14 | 0.563 | 14.3 | 410 | 610 |
2/0 | 19 | 0.055 | 1.40 | 0.045 | 1.14 | 0.607 | 15.4 | 503 | 749 |
3/0 | 19 | 0.055 | 1.40 | 0.045 | 1.14 | 0.657 | 16.7 | 673 | 921 |
4/0 | 19 | 0.055 | 1.40 | 0.045 | 1.14 | 0.713 | 18.1 | 764 | 1137 |
250 | 37 | 0.065 | 1.65 | 0.065 | 1.65 | 0.838 | 21.3 | 940 | 1399 |
350 | 37 | 0.065 | 1.65 | 0.065 | 1.65 | 0.944 | 24.0 | 1274 | 1896 |
500 | 37 | 0.065 | 1.65 | 0.065 | 1.65 | 1.076 | 27.3 | 1769 | 2633 |
750 | 61 | 0.080 | 2.03 | 0.065 | 1.65 | 1.291 | 32.8 | 2616 | 3893 |
1000 | 61 | 0.080 | 2.03 | 0.065 | 1.65 | 1.445 | 36.7 | 3428 | 5101 |
