RHH/RHW-2/USE-2, FR-EPR, 600V



Application and Description
RHH/RHW-2/USE-2, FR-EPR type is for use in broad range of commercial, industrial and utility applications where reliability is the major concern, where maximum performance will be demanded and where space is limited, and usually used in free air, raceways or direct burial in accordance with NEC.

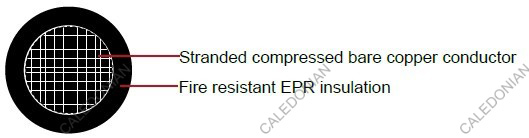

Cable Construction

Conductor:
Compressed stranded annealed bare copper, Class B stranding per ASTM B8
Insulation:
Flame-retardant Ethylene Propylene Rubber (EPR)
Color:
upon request, black is preferable

Industrial Cables RHH/RHW-2/USE-2, FR-EPR, 600V Industrial Cables RHH/RHW-2/USE-2, FR-EPR, 600V

Technical Compliances

- National Electrical Code (NEC)
- UL 44 Type RHH/RHW-2
- UL 854 Type USE-2
- ICEA S-95-658/NEMA WC70)
- "FOR CT USE" on 1/0 AWG and larger in accordance with NEC
- UL Listed VW-1
- UL 1581 VW-1
- For 1/0 AWG and larger: IEEE 383, IEEE 1202/CSA FT4, ICEA T-29-520
- OSHA acceptable



Cable Parameter

AWG or kcmil Strand Conductor Diameter Inch/mm Nominal Insulation Thickness Inch/mm Nominal Overall Diameter Inch/mm Copper weight Lbs/kft kg/km Cable Weight Lbs/kft kg/km
14 7 0.07 1.78 0.045 1.14 0.17 4.32 13 19 24 36
12 7 0.09 2.29 0.045 1.14 0.19 4.83 20 30 33 49
10 7 0.12 3.05 0.045 1.14 0.21 5.33 32 48 48 71
8 7 0.15 3.81 0.060 1.52 0.27 6.86 50 75 78 116
6 7 0.18 4.57 0.060 1.52 0.31 7.87 81 121 114 170
4 7 0.23 5.84 0.060 1.52 0.36 9.14 129 192 169 252
2 7 0.29 7.37 0.060 1.52 0.42 10.67 205 305 254 378
1/0 19 0.37 9.40 0.080 2.03 0.53 13.46 326 485 402 598
2/0 19 0.41 10.41 0.080 2.03 0.58 14.73 411 612 500 744
4/0 19 0.52 13.21 0.080 2.03 0.69 17.53 653 972 759 1130
250 37 0.56 14.22 0.095 2.41 0.77 19.56 772 1149 905 1347
350 37 0.67 17.02 0.095 2.41 0.87 22.10 1081 1609 1235 1838
500 37 0.80 20.32 0.095 2.41 1.00 25.40 1542 2295 1728 2572
750 61 0.98 24.89 0.110 2.79 1.22 30.99 2316 3447 2573 3829
1000 61 1.13 28.70 0.110 2.79 1.37 34.80 3086 4593 3402 5063
