Portuguese Standard Industrial Cables
XZ1

APPLICATIONS:

These cables with zero halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

STANDARD:

IEC 60502-1

CONSTRUCTION:

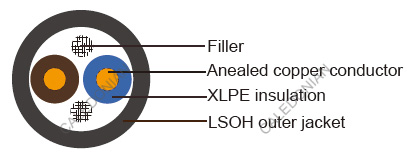

Portuguese Standard Industrial Cables XZ1

Conductor: Plain copper conductor, class 1(<6mmsq)/class2(>6mmsq) to IEC 60228
Insulation: XLPE insulation
Colour Code : HD 308 S2
Filler: Not fibrous and not hygroscopic fill
Over Sheath: Flexible black LSOH outer jacket

PHYSICAL PROPERTIES:

Minimum bending radius: 12 x Ø
Operation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Halogen free: IEC 60754-1, EN 50267-2-1
No corrosive gases: IEC 60754-2, EN 50267-2-2
No toxic gases: NES 02-713, NF X 70-100 Low smoke density: IEC 61034, EN 50268-2
Flame retardant: IEC 60332-1, EN 50265-2-1
Non-flame propagating IEC 60332-3, EN 50266-2
Insulation resistance: 1000 MΩ x km

PARAMETERS:

Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.) Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.)
mm2 mm Kg/Km mm2 mm Kg/Km
1 x 10 8.5 135 4 x 6 14.0 355
1 x 16 9.5 195 4 x 10 16.5 550
1 x 25 11.0 295 3 x 16 + 1 x 10 18.5 745
1 x 35 12.0 385 3 x 25 + 1 x 16 22.0 1140
1 x 50 13.5 510 3 x 35 + 1 x 16 24.0 1330
1 x 70 15.5 715 3 x 50 + 1 x 25 26.5 1795
1 x 95 17.5 970 3 x 70 + 1 x 35 31.0 2535
1 x 120 19.5 1215 3 x 95 + 1 x 50 35.0 3460
1 x 150 21.0 1480 3 x 120 + 1 x 70 38.5 4385
1 x 185 23.5 1840 3 x 150 + 1 x 70 42.5 5295
1 x 240 26.5 2375 3 x 185 + 1 x 95 45.0 6735
1 x 300 28.5 2980 3 x 240 + 1 x 120 52.5 8550
2 x 1,5 9.5 110 5 x 1,5 11.5 175
2 x 2,5 10.0 135 5 x 2,5 12.5 230
2 x 4 11.0 180 5 x 4 13.5 320
2 x 6 12.0 235 5 x 6 15.0 435
2 x 10 14.5 350 5 x 10 18.0 670
2 x 16 16.5 500 3 x 16 + 2G10 20.0 865
3 x 1,5 10.0 125 3 x 25 + 2G16 23.5 1315
3 x 2,5 10.5 160 3 x 35 + 2G16 26.0 1680
3 x 4 11.5 220 3 x 50 + 2G25 29.5 2250
3 x 6 12.5 290 3 x 70 + 2G35 34.0 3160
3 x 10 15.0 440 3 x 95 + 2G50 40.5 4485
3 x 16 17.5 635 3 x 120 + 2G70 46.5 5875
4 x 1,5 10.5 145 3 x 150 + 2G70 49.5 6835
4 x 2,5 11.5 195 3 x 185 + 2G95 51.0 7900
4 x 4 12.5 265 3 x 240 + 2G120 62.5 11115
