Portuguese Standard Industrial Cables
LXV

Application and Description

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Standard and Approval

IEC 60502-1 NP2365

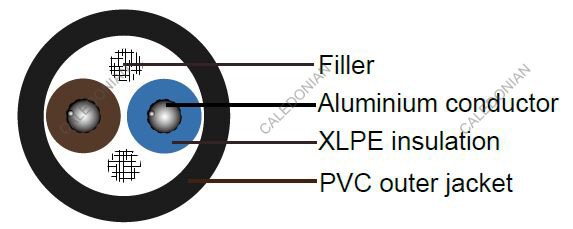

Cable Construction

- Aluminium conductor, class 1/class 2 to NP2363
- XLPE insulation
- Colour coded to HD 308
- Not fibrous and not hygroscopic filler
- Flexible PVC, type ST2 outer jacket

  <

Technical Characteristics

- Voltage Rating: 600/1000V
- Test voltage: 3500 volts
- Minimum bending radius: 12 x Ø
- Operation temperature range: -15 °C to 90 °C
- Short-circuit temperature: 250 °C
- Flame retardant: IEC 60332.1
- Insulation resistance: 1000 MΩ x km

Cable Parameter

No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/km	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/km
1x16	9.0	100	3x16	17.5	380
1x25	10.5	145	3x25	21.0	530
1x35	12.0	175	3x35	20.0	510
1x50	13.0	230	3x50	22.5	620
1x70	15.0	300	3x70	26.5	880
1x95	17.0	395	3x95	30.0	1200
1x120	18.5	460	3x120	33.0	1500
1x150	20.5	590	3x150	37.0	1750
1x185	22.5	720	3x185	41.0	2200
1x240	25.5	910	3x240	46.5	2800
1x300	28.0	1150	3x300	51.5	3500
1x400	32.0	1400	4x16	18.0	330
1x500	35.0	1850	4x25	22.5	480
2x16	17.0	320	4x35	23.0	610
2x25	20.0	470	4x50	26.0	770
2x35	17.5	370	4x70	29.0	1020
2x50	19.5	460	4x95	34.5	1350
2x70	22.5	600	4x120	38.0	1750
2x95	26.0	830	4x150	42.5	2050
2x120	29.0	1020	4x185	47.5	2600
2x150	31.5	1300	4x240	53.5	3400
2x185	35.5	1550	4x300	59.5	4200
2x240	39.5	1900	-	-	-
2x300	43.5	2350	-	-	-
