Portuguese Standard Industrial Cables
H1VV-U
APPLICATIONS:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
STANDARD:

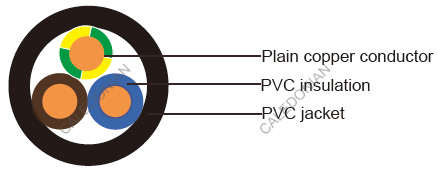

IEC 60502-1CONSTRUCTION:
- Solid copper conductor, class 1 to NP 2363
- PVC insulation
- Color coded to HD 308
- Flexible PVC outer jacket
ETechnical Characteristics:
- Working Voltage: 600/1000 volts
- Test voltage: 3500 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 12 x Ø
- Flexing temperature: -5º C to +50º C
- Fixed installation temperature: - 40º C to +70º C
- Flame retardant: IEC 60332-1, EN 50265-2-1
- Insulation resistance: 100 MΩ x km
PARAMETERS:
| Nominal Cross Section | Overall Diameter (Approx.) | Cable Weight (Approx.) | Nominal Cross Section | Overall Diameter (Approx.) | Cable Weight (Approx.) |
|---|---|---|---|---|---|
| mm2 | mm | Kg/Km | mm2 | mm | Kg/Km |
| 1x1.5 | 6.4 | 58 | 30x1.5 | 26 | 1020 |
| 1x2.5 | 6.8 | 71 | 40x1.5 | 29 | 1290 |
| 2x1.5 | 12 | 205 | 48x1.5 | 32 | 1520 |
| 2x2.5 | 13 | 250 | 61x1.5 | 35 | 1900 |
| 3x1.5 | 13 | 230 | 5x2.5 | 16 | 375 |
| 3x2.5 | 13.5 | 280 | 7x2.5 | 17 | 460 |
| 4x1.5 | 13.5 | 265 | 10x2.5 | 20 | 590 |
| 4x2.5 | 14.5 | 325 | 12x2.5 | 21 | 660 |
| 5x1.5 | 14.5 | 300 | 14x2.5 | 22 | 740 |
| 7x1.5 | 15.5 | 360 | 19x2.5 | 24 | 940 |
| 10x1.5 | 19 | 460 | 21x2.5 | 25 | 1030 |
| 12x1.5 | 19.5 | 510 | 24x2.5 | 27 | 1150 |
| 14x1.5 | 20 | 570 | 30x2.5 | 29 | 1370 |
| 19x1.5 | 22 | 710 | 40x2.5 | 32 | 1810 |
| 21x1.5 | 23 | 770 | 48x2.5 | 36 | 2130 |
| 24x1.5 | 25 | 870 | 61x2.5 | 39 | 2630 |
