JIS Industrial Cables
VVF

For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster.

TIS 11-2531

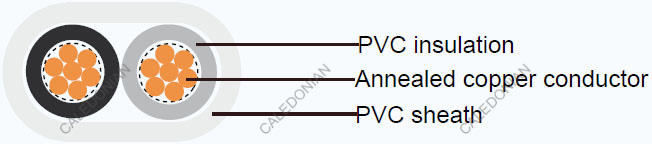

JIS Industrial Cables VVF

Conductor: Solid and stranded annealed copper, Sizes: 1 mm2 up to 35 mm2 Insulation: Polyvinyl chloride (PVC)
Color : Light grey, Black

Sheath: Polyvinyl chloride (PVC), white color

Maximum conductor temperature 70oC
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts

No. of cores	Conductor		Insulation thickness	Sheath thickness	Overall diameter		Maximum continuous current rating in free air	Min. insulation resistance (at20°C)	Cable weight
	size	No. & dia. Of wires			Overall diameter
	size	No. & dia. Of wires			lower limit	upper limit
	mm2	No./mm	mm	mm	mm	mm	A	MOhm/km	kg/km
2	1	1/1.13	0.8	1.4	5.2 x 8.0	6.4 x 9.4	13	0.0141	75
2	1	7/0.40	0.8	1.4	5.4 x 8.0	6.6 x 9.8	13	0.0135	75
2	1.5	1/1.38	0.8	1.4	5.6 x 8.4	6.6 x 10.0	17	0.0123	90
2	1.5	7/0.50	0.8	1.4	5.6 x 8.6	7.0 x 10.5	17	0.0116	90
2	2.5	1/1.78	0.8	1.4	5.8 x 9.2	7.2 x 11.0	22	0.0102	110
2	2.5	7/0.67	0.8	1.4	6.2 x 9.6	7.4 x 11.5	22	0.0093	110
2	4	1/2.25	0.9	1.4	6.6 x 10.5	7.8 x 12.5	30	0.0094	160
2	4	7/0.85	0.9	1.4	6.8 x 11.0	8.2 x 13.0	30	0.0085	160
2	6	7/1.04	0.9	1.4	7.4 x 12.0	8.8 x 14.5	37	0.0073	220
2	10	7/1.35	1.1	1.5	8.8 x 15.0	10.5 x 17.0	52	0.0069	340
2	16	7/1.70	1.1	1.5	9.8 x 17.0	11.5 x 19.5	69	0.0057	480
2	25	7/2.14	1.3	1.6	11.5 x 20.5	13.5 x 23.5	91	0.0054	720
2	35	19/1.53	1.3	1.7	13.0 x 23.0	15.0 x 26.5	112	0.0047	940
