JIS Industrial Cables
FCVVS
Application and Description:
For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.
ReferenFCVVS Standard:
IEC 60502-1
Cable Construction:

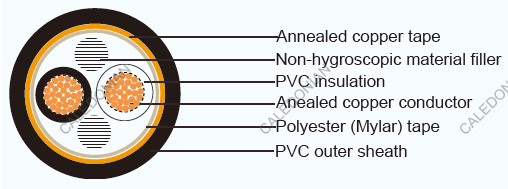

Conductor: Flexible stranded annealed copper wires, Sizes: 0.5 mm2 up to 6 mm2 Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional) Shield: Annealed copper tape, 0.1mm
Outer sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)
Technical Characteristics:
Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts
Cable Parameter:
| No. of cores | Conductor | Insulation thickness | Outer Sheath thickness | Overall diameter | Max. conductor resistance (at 20°C) | Min. insulation resistance (at70°C) | Cable weight | ||
|---|---|---|---|---|---|---|---|---|---|
| size | No. & dia. of wires | diameter | |||||||
| mm2 | No./mm | mm | mm | mm | mm | Ohm/km | MOhm/km | kg/km | |
| 2 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 10.5 | 39.0 | 0.0130 | 130 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 11 | 26.0 | 0.0114 | 140 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 11.5 | 19.5 | 0.0104 | 150 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.3 | 12 | 13.3 | 0.0089 | 180 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.3 | 13.5 | 7.98 | 0.0081 | 230 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.3 | 15 | 4.95 | 0.0076 | 300 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 17 | 3.30 | 0.0061 | 400 | |
| 3 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 11 | 39.0 | 0.0130 | 140 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 11.5 | 26.0 | 0.0114 | 160 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 12 | 19.5 | 0.0104 | 170 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.3 | 12.5 | 13.3 | 0.0089 | 200 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.3 | 14 | 7.98 | 0.0081 | 270 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 16 | 4.95 | 0.0076 | 360 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 18 | 3.30 | 0.0061 | 480 | |
| 4 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 11.5 | 39.0 | 0.0130 | 160 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.3 | 12 | 26.0 | 0.0114 | 180 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.3 | 12.5 | 19.5 | 0.0104 | 200 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.3 | 13.5 | 13.3 | 0.0089 | 240 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.3 | 15 | 7.98 | 0.0081 | 320 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 17 | 4.95 | 0.0076 | 430 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 19.5 | 3.30 | 0.0061 | 580 | |
| 5 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.3 | 12.5 | 39.0 | 0.0130 | 190 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.3 | 13 | 26.0 | 0.0114 | 210 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.3 | 13.5 | 19.5 | 0.0104 | 230 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.3 | 14 | 13.3 | 0.0089 | 280 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 16 | 7.98 | 0.0081 | 380 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 18.5 | 4.95 | 0.0076 | 520 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.5 | 21 | 3.30 | 0.0061 | 700 | |
| 6 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.3 | 13 | 39.0 | 0.0130 | 200 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.3 | 13.5 | 26.0 | 0.0114 | 230 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.3 | 14 | 19.5 | 0.0104 | 250 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.3 | 15 | 13.3 | 0.0089 | 300 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 17.5 | 7.98 | 0.0081 | 410 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.5 | 20 | 4.95 | 0.0076 | 570 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.5 | 23 | 3.30 | 0.0061 | 760 | |
| 7 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.3 | 13 | 39.0 | 0.0130 | 200 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.3 | 13.5 | 26.0 | 0.0114 | 230 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.3 | 14 | 19.5 | 0.0104 | 260 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.3 | 15 | 13.3 | 0.0089 | 310 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 17.5 | 7.98 | 0.0081 | 440 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.5 | 20 | 4.95 | 0.0076 | 610 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.5 | 23 | 3.30 | 0.0061 | 820 | |
| 8 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.3 | 13.5 | 39.0 | 0.0130 | 220 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.3 | 14.5 | 26.0 | 0.0114 | 260 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 15 | 19.5 | 0.0104 | 300 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 16 | 13.3 | 0.0089 | 350 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.5 | 18.5 | 7.98 | 0.0081 | 490 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.5 | 21 | 4.95 | 0.0076 | 680 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.6 | 25 | 3.30 | 0.0061 | 930 | |
| 9 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.3 | 14.5 | 39.0 | 0.0130 | 240 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 15.5 | 26.0 | 0.0114 | 290 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 16 | 19.5 | 0.0104 | 330 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 17 | 13.3 | 0.0089 | 390 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.5 | 20 | 7.98 | 0.0081 | 550 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.6 | 23 | 4.95 | 0.0076 | 770 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.7 | 26.5 | 3.30 | 0.0061 | 1050 | |
| 10 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.3 | 15.5 | 39.0 | 0.0130 | 260 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 16.5 | 26.0 | 0.0114 | 310 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 17 | 19.5 | 0.0104 | 350 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 18 | 13.3 | 0.0089 | 420 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.5 | 21 | 7.98 | 0.0081 | 600 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.6 | 24.5 | 4.95 | 0.0076 | 840 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.7 | 29 | 3.30 | 0.0061 | 1150 | |
| 11 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.3 | 15.5 | 39.0 | 0.0130 | 280 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 17 | 26.0 | 0.0114 | 340 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 17.5 | 19.5 | 0.0104 | 380 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 18.5 | 13.3 | 0.0089 | 460 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.5 | 21.5 | 7.98 | 0.0081 | 650 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.6 | 25 | 4.95 | 0.0076 | 920 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.7 | 29.5 | 3.30 | 0.0061 | 1260 | |
| 12 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 16 | 39.0 | 0.0130 | 290 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 17 | 26.0 | 0.0114 | 340 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 17.5 | 19.5 | 0.0104 | 390 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 18.5 | 13.3 | 0.0089 | 470 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.5 | 21.5 | 7.98 | 0.0081 | 670 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.6 | 25 | 4.95 | 0.0076 | 960 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.7 | 29.5 | 3.30 | 0.0061 | 1310 | |
| 13 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 16.5 | 39.0 | 0.0130 | 320 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 17.5 | 26.0 | 0.0114 | 370 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 18 | 19.5 | 0.0104 | 420 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.5 | 19.5 | 13.3 | 0.0089 | 520 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.6 | 23 | 7.98 | 0.0081 | 740 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.7 | 26.5 | 4.95 | 0.0076 | 1060 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.7 | 31 | 3.30 | 0.0061 | 1430 | |
| 14 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 16.5 | 39.0 | 0.0130 | 320 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 17.5 | 26.0 | 0.0114 | 380 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 18 | 19.5 | 0.0104 | 430 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.5 | 19.5 | 13.3 | 0.0089 | 530 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.6 | 23 | 7.98 | 0.0081 | 760 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.7 | 26.5 | 4.95 | 0.0076 | 1090 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.7 | 31 | 3.30 | 0.0061 | 1480 | |
| 15 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 17 | 39.0 | 0.0130 | 350 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 18 | 26.0 | 0.0114 | 410 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 19 | 19.5 | 0.0104 | 480 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.5 | 20.5 | 13.3 | 0.0089 | 580 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.6 | 24 | 7.98 | 0.0081 | 830 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.7 | 28 | 4.95 | 0.0076 | 1190 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 33 | 3.30 | 0.0061 | 1630 | |
| 16 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 17 | 39.0 | 0.0130 | 350 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 18 | 26.0 | 0.0114 | 420 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 19 | 19.5 | 0.0104 | 480 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.5 | 20.5 | 13.3 | 0.0089 | 590 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.6 | 24 | 7.98 | 0.0081 | 850 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.7 | 28 | 4.95 | 0.0076 | 1220 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 33 | 3.30 | 0.0061 | 1680 | |
| 17 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18 | 39.0 | 0.0130 | 380 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 19 | 26.0 | 0.0114 | 460 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 20 | 19.5 | 0.0104 | 520 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.5 | 21.5 | 13.3 | 0.0089 | 640 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.6 | 25 | 7.98 | 0.0081 | 920 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 29.5 | 4.95 | 0.0076 | 1340 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 34.5 | 3.30 | 0.0061 | 1820 | |
| 18 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18 | 39.0 | 0.0130 | 380 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 19 | 26.0 | 0.0114 | 460 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 20 | 19.5 | 0.0104 | 530 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.5 | 21.5 | 13.3 | 0.0089 | 650 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.6 | 25 | 7.98 | 0.0081 | 940 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 29.5 | 4.95 | 0.0076 | 1370 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 34.5 | 3.30 | 0.0061 | 1870 | |
| 19 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18 | 39.0 | 0.0130 | 390 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 19 | 26.0 | 0.0114 | 470 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 20 | 19.5 | 0.0104 | 540 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.5 | 21.5 | 13.3 | 0.0089 | 660 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.6 | 25 | 7.98 | 0.0081 | 960 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 29.5 | 4.95 | 0.0076 | 1400 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 34.5 | 3.30 | 0.0061 | 1920 | |
| 20 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18.5 | 39.0 | 0.0130 | 420 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 20 | 26.0 | 0.0114 | 500 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 21 | 19.5 | 0.0104 | 580 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.6 | 22.5 | 13.3 | 0.0089 | 720 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.7 | 26.5 | 7.98 | 0.0081 | 1050 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 31 | 4.95 | 0.0076 | 1510 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.9 | 36.5 | 3.30 | 0.0061 | 2080 | |
| 21 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18.5 | 39.0 | 0.0130 | 420 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 20 | 26.0 | 0.0114 | 510 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 21 | 19.5 | 0.0104 | 580 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.6 | 22.5 | 13.3 | 0.0089 | 730 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.7 | 26.5 | 7.98 | 0.0081 | 1060 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 31 | 4.95 | 0.0076 | 1530 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.9 | 36.5 | 3.30 | 0.0061 | 2120 | |
| 22 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 19.5 | 39.0 | 0.0130 | 460 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 20.5 | 26.0 | 0.0114 | 550 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 21.5 | 19.5 | 0.0104 | 630 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.6 | 23.5 | 13.3 | 0.0089 | 780 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.7 | 27.5 | 7.98 | 0.0081 | 1140 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 32 | 4.95 | 0.0076 | 1650 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.9 | 38 | 3.30 | 0.0061 | 2280 | |
| 23 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 19.5 | 39.0 | 0.0130 | 460 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 20.5 | 26.0 | 0.0114 | 550 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.5 | 21.5 | 19.5 | 0.0104 | 630 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.6 | 23.5 | 13.3 | 0.0089 | 790 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.7 | 27.5 | 7.98 | 0.0081 | 1150 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 32 | 4.95 | 0.0076 | 1660 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.9 | 38 | 3.30 | 0.0061 | 2310 | |
| 24 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 20.5 | 39.0 | 0.0130 | 480 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 21.5 | 26.0 | 0.0114 | 570 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 23 | 19.5 | 0.0104 | 670 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.6 | 24.5 | 13.3 | 0.0089 | 820 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.7 | 29 | 7.98 | 0.0081 | 1200 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.9 | 34 | 4.95 | 0.0076 | 1750 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2 | 41 | 3.30 | 0.0061 | 2460 | |
| 25 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 21 | 39.0 | 0.0130 | 500 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 22 | 26.0 | 0.0114 | 600 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 23.5 | 19.5 | 0.0104 | 700 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.6 | 25 | 13.3 | 0.0089 | 870 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.7 | 29.5 | 7.98 | 0.0081 | 1270 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.9 | 35 | 4.95 | 0.0076 | 1850 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2 | 41.5 | 3.30 | 0.0061 | 2600 | |
| 26 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 21 | 39.0 | 0.0130 | 510 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 22 | 26.0 | 0.0114 | 610 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 23.5 | 19.5 | 0.0104 | 710 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.6 | 25 | 13.3 | 0.0089 | 880 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.7 | 29.5 | 7.98 | 0.0081 | 1290 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.9 | 35 | 4.95 | 0.0076 | 1880 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2 | 41.5 | 3.30 | 0.0061 | 2650 | |
| 27 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 21 | 39.0 | 0.0130 | 510 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.5 | 22 | 26.0 | 0.0114 | 610 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 23.5 | 19.5 | 0.0104 | 720 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.6 | 25 | 13.3 | 0.0089 | 890 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 29.5 | 7.98 | 0.0081 | 1320 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.9 | 35 | 4.95 | 0.0076 | 1920 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2 | 41.5 | 3.30 | 0.0061 | 2700 | |
| 28 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 21.5 | 39.0 | 0.0130 | 540 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 23 | 26.0 | 0.0114 | 660 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 24 | 19.5 | 0.0104 | 760 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 26 | 13.3 | 0.0089 | 950 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 30.5 | 7.98 | 0.0081 | 1390 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.9 | 36 | 4.95 | 0.0076 | 2020 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.1 | 43.5 | 3.30 | 0.0061 | 2870 | |
| 29 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 21.5 | 39.0 | 0.0130 | 540 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 23 | 26.0 | 0.0114 | 660 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 24 | 19.5 | 0.0104 | 770 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 26 | 13.3 | 0.0089 | 960 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 30.5 | 7.98 | 0.0081 | 1420 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.9 | 36 | 4.95 | 0.0076 | 2060 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.1 | 43.5 | 3.30 | 0.0061 | 2920 | |
| 30 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 21.5 | 39.0 | 0.0130 | 550 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 23 | 26.0 | 0.0114 | 670 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 24 | 19.5 | 0.0104 | 780 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 26 | 13.3 | 0.0089 | 980 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 30.5 | 7.98 | 0.0081 | 1440 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.9 | 36 | 4.95 | 0.0076 | 2090 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.1 | 43.5 | 3.30 | 0.0061 | 2970 | |
| 31 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 22 | 39.0 | 0.0130 | 580 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 23.5 | 26.0 | 0.0114 | 710 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 25 | 19.5 | 0.0104 | 820 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 27 | 13.3 | 0.0089 | 1030 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 31.5 | 7.98 | 0.0081 | 1520 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2 | 38 | 4.95 | 0.0076 | 2260 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.1 | 45 | 3.30 | 0.0061 | 3140 | |
| 32 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 22 | 39.0 | 0.0130 | 580 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 23.5 | 26.0 | 0.0114 | 710 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 25 | 19.5 | 0.0104 | 830 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 27 | 13.3 | 0.0089 | 1040 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 31.5 | 7.98 | 0.0081 | 1540 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2 | 38 | 4.95 | 0.0076 | 2290 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.1 | 45 | 3.30 | 0.0061 | 3190 | |
| 33 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.5 | 22 | 39.0 | 0.0130 | 590 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 23.5 | 26.0 | 0.0114 | 720 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 25 | 19.5 | 0.0104 | 840 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 27 | 13.3 | 0.0089 | 1060 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 31.5 | 7.98 | 0.0081 | 1560 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2 | 38 | 4.95 | 0.0076 | 2330 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.1 | 45 | 3.30 | 0.0061 | 3240 | |
| 34 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 23 | 39.0 | 0.0130 | 630 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 24.5 | 26.0 | 0.0114 | 760 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 25.5 | 19.5 | 0.0104 | 880 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 27.5 | 13.3 | 0.0089 | 1110 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 33 | 7.98 | 0.0081 | 1660 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2 | 39 | 4.95 | 0.0076 | 2450 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 46.5 | 3.30 | 0.0061 | 3420 | |
| 35 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 23 | 39.0 | 0.0130 | 640 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 24.5 | 26.0 | 0.0114 | 770 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 25.5 | 19.5 | 0.0104 | 890 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 27.5 | 13.3 | 0.0089 | 1120 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 33 | 7.98 | 0.0081 | 1680 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2 | 39 | 4.95 | 0.0076 | 2480 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 46.5 | 3.30 | 0.0061 | 3480 | |
| 36 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 23 | 39.0 | 0.0130 | 640 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 24.5 | 26.0 | 0.0114 | 770 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 25.5 | 19.5 | 0.0104 | 900 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 27.5 | 13.3 | 0.0089 | 1140 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 33 | 7.98 | 0.0081 | 1700 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2 | 39 | 4.95 | 0.0076 | 2520 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 46.5 | 3.30 | 0.0061 | 3530 | |
| 37 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 23 | 39.0 | 0.0130 | 640 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 24.5 | 26.0 | 0.0114 | 780 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.6 | 25.5 | 19.5 | 0.0104 | 910 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 27.5 | 13.3 | 0.0089 | 1150 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 33 | 7.98 | 0.0081 | 1720 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2 | 39 | 4.95 | 0.0076 | 2550 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 46.5 | 3.30 | 0.0061 | 3580 | |
| 38 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 23.5 | 39.0 | 0.0130 | 680 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 25 | 26.0 | 0.0114 | 820 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 26.5 | 19.5 | 0.0104 | 970 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 28.5 | 13.3 | 0.0089 | 1210 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 34 | 7.98 | 0.0081 | 1800 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.1 | 41 | 4.95 | 0.0076 | 2700 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 48.5 | 3.30 | 0.0061 | 3750 | |
| 39 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 23.5 | 39.0 | 0.0130 | 680 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 25 | 26.0 | 0.0114 | 830 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 26.5 | 19.5 | 0.0104 | 980 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 28.5 | 13.3 | 0.0089 | 1220 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 34 | 7.98 | 0.0081 | 1830 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.1 | 41 | 4.95 | 0.0076 | 2730 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 48.5 | 3.30 | 0.0061 | 3800 | |
| 40 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 23.5 | 39.0 | 0.0130 | 680 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.6 | 25 | 26.0 | 0.0114 | 830 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 26.5 | 19.5 | 0.0104 | 980 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.7 | 28.5 | 13.3 | 0.0089 | 1230 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 34 | 7.98 | 0.0081 | 1840 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.1 | 41 | 4.95 | 0.0076 | 2750 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 48.5 | 3.30 | 0.0061 | 3840 | |
| 41 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 25 | 39.0 | 0.0130 | 740 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.7 | 27 | 26.0 | 0.0114 | 900 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 28.5 | 19.5 | 0.0104 | 1050 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 31 | 13.3 | 0.0089 | 1320 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 36.5 | 7.98 | 0.0081 | 1960 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.1 | 44 | 4.95 | 0.0076 | 2920 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.3 | 52.5 | 3.30 | 0.0061 | 4090 | |
| 42 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 25 | 39.0 | 0.0130 | 740 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.7 | 27 | 26.0 | 0.0114 | 910 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 28.5 | 19.5 | 0.0104 | 1060 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 31 | 13.3 | 0.0089 | 1330 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 36.5 | 7.98 | 0.0081 | 1980 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.1 | 44 | 4.95 | 0.0076 | 2960 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.3 | 52.5 | 3.30 | 0.0061 | 4140 | |
| 43 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 25 | 39.0 | 0.0130 | 740 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.7 | 27 | 26.0 | 0.0114 | 910 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 28.5 | 19.5 | 0.0104 | 1060 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 31 | 13.3 | 0.0089 | 1340 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.9 | 36.5 | 7.98 | 0.0081 | 1990 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.1 | 44 | 4.95 | 0.0076 | 2970 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.3 | 52.5 | 3.30 | 0.0061 | 4170 | |
| 44 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 25 | 39.0 | 0.0130 | 750 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.7 | 27 | 26.0 | 0.0114 | 920 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 28.5 | 19.5 | 0.0104 | 1070 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 31 | 13.3 | 0.0089 | 1350 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 2 | 37.5 | 7.98 | 0.0081 | 2070 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 44 | 4.95 | 0.0076 | 3030 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.3 | 53 | 3.30 | 0.0061 | 4280 | |
| 45 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 25.5 | 39.0 | 0.0130 | 780 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.7 | 27.5 | 26.0 | 0.0114 | 960 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 29 | 19.5 | 0.0104 | 1120 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 31.5 | 13.3 | 0.0089 | 1420 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 2 | 38 | 7.98 | 0.0081 | 2170 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 45 | 4.95 | 0.0076 | 3180 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.3 | 53.5 | 3.30 | 0.0061 | 4480 | |
| 46 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 25.5 | 39.0 | 0.0130 | 780 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.7 | 27.5 | 26.0 | 0.0114 | 960 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 29 | 19.5 | 0.0104 | 1120 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 31.5 | 13.3 | 0.0089 | 1420 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 2 | 38 | 7.98 | 0.0081 | 2170 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 45 | 4.95 | 0.0076 | 3190 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.3 | 53.5 | 3.30 | 0.0061 | 4500 | |
| 47 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 25.5 | 39.0 | 0.0130 | 780 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.7 | 27.5 | 26.0 | 0.0114 | 970 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 29 | 19.5 | 0.0104 | 1130 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 31.5 | 13.3 | 0.0089 | 1430 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 2 | 38 | 7.98 | 0.0081 | 2190 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 45 | 4.95 | 0.0076 | 3220 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.3 | 53.5 | 3.30 | 0.0061 | 4550 | |
| 48 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.6 | 25.5 | 39.0 | 0.0130 | 790 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.7 | 27.5 | 26.0 | 0.0114 | 980 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.7 | 29 | 19.5 | 0.0104 | 1140 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 31.5 | 13.3 | 0.0089 | 1450 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 2 | 38 | 7.98 | 0.0081 | 2220 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 45 | 4.95 | 0.0076 | 3270 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.4 | 54 | 3.30 | 0.0061 | 4650 | |
© 2021 Caledonian cables
