JIS C 3605 Cables
EE/CE

Application and Description:

For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

Name Code:

E: Polyethylene
C: Cross-linked polyethylene

Cable Construction:

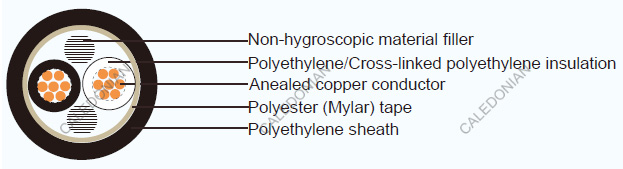

JIS C 3605 Industrial Cables EE/CE

Conductor: Circular, circuar or segmental compacted stranded annealed copper wires
Seperator: A proper separator may be applied to a conductor
Insulation: Polyethylene/Cross-linked polyethylene
Color :
2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyethylene (PE), Black color

Technical Characteristics:

Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts

Cable Parameter:

No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Test Voltage Maximum DC. resistance of Cdr. at 20°C Cable weight (approx.)
mm² mm mm mm mm V Ohm / km kg / km
1 2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 50
3.5 7/0.8 2.4 0.8 1.5 7.0 5.2 1500 65
5.5 7/1.0 3.0 1.0 1.5 8.0 3.33 1500 90
8 7/1.2 3.6 1.0 1.5 8.6 2.31 1500 120
8 compacted 3.4 1.0 1.5 8.4 2.29 1500 120
14 7/1.6 4.8 1.0 1.5 9.8 1.31 2000 185
14 compactcd 4.4 1.0 1.5 9.4 1.30 2000 180
22 7/2.0 6.0 1.2 1.5 11.5 0.824 2000 275
22 compacted 5.5 1.2 1.5 11.0 0.832 2000 265
38 7/2.6 7.8 1.2 1.5 13.5 0.487 2500 430
38 compacted 7.3 1.2 1.5 13.0 0.481 2500 430
60 19/2.0 10.0 1.5 1.5 16.0 0.303 2500 665
60 compacted 9.3 1.5 1.5 15.5 0.305 2500 655
100 19/2.6 13.0 2.0 1.5 20.0 0.180 2500 1100
100 compacted 12.0 2.0 1.5 19.0 0.183 2500 1080
150 37/2.3 16.1 2.0 1.5 24.5 0.118 3000 1630
150 compacted 14.7 2.0 1.5 22.5 0.122 3000 1560
200 37/2.6 18.2 2.5 1.7 27.5 0.0922 3000 2080
200 compacted 17.0 2.5 1.7 26.5 0.0915 3000 2090
250 61/2.3 20.7 2.5 1.8 30.0 0.0722 3000 2660
250 compacted 19.0 2.5 1.8 28.5 0.0739 3000 2600
325 61/2.6 23.4 2.5 1.9 33.5 0.0565 3000 3360
325 compacted 21.7 2.5 1.9 31.5 0.0568 3000 3330
400 61/2.9 26.1 2.5 2.0 34.5 0.0373 3000 4l30
400 compacted 24.1 2.5 2.0 34.5 0.0369 3000 4060
500 61/3.2 28.8 3.0 2.1 40.0 0.0304 3500 5060
500 compacted 26.9 3.0 2.1 43.0 0.0308 3500 5080
600 91/2.9 31.9 3.0 2.3 41.0 0.0369 3500 6140
600 compacted 29.5 3.0 2.2 38.5 0.0369 3500 6050
800 127/2.8 36.4 3.5 2.5 49 0.0234 3500 7980
800 compacted 34.0 3.5 2.5 47.5 0.0231 3500 8060
1 800 segmental  compacted 34.0 3.5 2.5 47.5 0.0231 3500 8060
1000 127/3.2 41.6 3.5 2.6 54.0 0.0179 3500 10300
1000 compacted 38.0 3.5 2.6 51.5 0.0185 3500 9980
1000 segmental  compacted 38.0 3.5 2.6 51.5 0.0187 3500 10100
2 2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 100
3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 1500 145
5.5 7/1.0 3.0 1.0 1.5 13.5 3.4 1500 210
8 7/1.2 3.6 1.0 1.5 15.0 2.36 1500 270
8 compacted 3.4 1.0 1.5 14.5 2.34 1500 260
14 7/1.6 4.8 1.0 1.5 17.5 1.33 2000 415
14 compactcd 4.4 1.0 1.5 16.5 1.34 2000 405
22 7/2.0 6.0 1.2 1.5 21.0 0.840 2000 620
22 compacted 5.5 1.2 1.5 19.5 0.849 2000 595
38 7/2.6 7.8 1.2 1.5 24.0 0.497 2500 975
38 compacted 7.3 1.2 1.5 24.0 0.491 2500 965
60 19/2.0 10.0 1.5 1.5 31.0 0.309 2500 1540
60 compacted 9.3 1.5 1.5 29.0 0.311 2500 1560
100 19/2.6 13.0 2.0 1.5 39.0 0.184 2500 2570
100 compacted 12.0 2.0 1.5 37.0 0.187 2500 2540
150 37/2.3 16.1 2.0 1.5 46.0 0.124 3000 3770
150 compacted 14.7 2.0 1.5 43.0 0.120 3000 3570
200 37/2.6 18.2 2.5 1.7 53.0 0.0940 3000 4860
200 compacted 17.0 2.5 1.7 50.0 0.0933 3000 4600
250 61/2.3 20.7 2.5 1.8 58.0 0.0736 3000 6180
250 compacted 19.0 2.5 1.8 54.0 0.0754 3000 5930
325 61/2.6 23.4 2.5 1.9 64.0 0.0576 3000 7760
325 compacted 21.7 2.5 1.9 60.0 0.0579 3000 7570



3

 2 7/0.6 1.8 0.8 1.5 11.0 9.42 1500 130
3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 1500 185
5.5 7/1.0 3.0 1.0 1.5 14.5 3.4 1500 270
8 7/1.2 3.6 1.0 1.5 16.0 2.36 1500 355
8 compacted 3.4 1.0 1.5 15.5 2.34 1500 350
14 7/1.6 4.8 1.0 1.5 18.5 1.33 2000 560
3 14 compactcd 4.4 1.0 1.5 17.5 1.34 2000 550
22 7/2.0 6.0 1.2 1.5 22.0 0.840 2000 845
22 compacted 5.5 1.2 1.5 21.0 0.849 2000 820
38 7/2.6 7.8 1.2 1.5 26.0 0.497 2500 I350
38 compacted 7.3 1.2 1.5 25.0 0.491 2500 1350
60 19/2.0 10.0 1.5 1.5 33.0 0.309 2500 2 130
60 compacted 9.3 1.5 1.5 31.0 0.311 2500 2 090
100 19/2.6 13.0 2.0 1.5 42.0 0.184 2500 3 580
100 compacted 12.0 2.0 1.5 40.0 0.187 2500 3460
150 37/2.3 16.1 2.0 1.5 49.0 0.124 3000 5270
150 compacted 14.7 2.0 1.5 46.0 0.120 3000 5030
200 37/2.6 18.2 2.5 1.7 57.0 0.0940 3000 6790
200 compacted 17.0 2.5 1.7 54.0 0.0933 3000 6740
250 61/2.3 20.7 2.5 1.8 62.0 0.0736 3000 8670
250 compacted 19.0 2.5 1.8 58.0 0.0754 3000 8360
325 61/2.6 23.4 2.5 1.9 94.0 0.0576 3000 11000
325 compacted 21.7 2.5 1.9 65.0 0.0579 3000 10700
4 2.5 7/0.6 1.8 0.8 1.5 12.0 9.42 1500 160
3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 1500 230
5.5 7/1.0 3.0 1.0 1.5 16.0 3.4 1500 340
8 7/1.2 3.6 1.0 1.5 17.0 2.36 1500 450
8 compacted 3.4 1.0 1.5 16.5 2.34 1500 480
14 7/1.6 4.8 1.0 1.5 20.0 1.33 2000 765
14 compactcd 4.4 1.0 1.5 19.0 1.34 2000 705
22 7/2.0 6.0 1.2 1.5 24 0.840 2000 1100
22 compacted 5.5 1.2 1.5 23 0.849 2000 1070
38 7/2.6 7.8 1.2 1.5 29 0.497 2500 1760
38 compacted 7.3 1.2 1.5 28 0.491 2500 1760
60 19/2.0 10.0 1.5 1.5 37 0.309 2500 2790
60 compacted 9.3 1.5 1.5 35 0.311 2500 2730
100 19/2.6 13.0 2.0 1.5 47 0.184 2500 4680
100 compacted 12.0 2.0 1.5 44 0.187 2500 4530
150 37/2.3 16.1 2.0 1.5 55 0.124 3000 6900
4 150 compacted 14.7 2.0 1.5 SI 0.120 3000 6 600
200 37/2.6 18.2 2.5 1.7 63 0.0940 3000 8900
200 compacted 17.0 2.5 1.7 60 0.0933 3000 8850
250 61/2.3 20.7 2.5 1.8 70 0.0736 3000 11400
250 compacted 19.0 2.5 1.8 65 0.0754 3000 11000
325 61/2.6 23.4 2.5 1.9 77 0.0576 3000 14400
325 compacted 21.7 2.5 1.9 72 0.0579 3000 14100
