JIS C 3401 Cables
CEV

Application and Description:

For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

Name Code:

C: For control

E: Polythylene

V: Vinyl

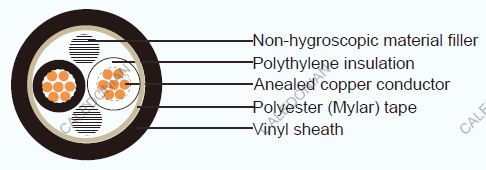

Cable Construction:

Conductor: Circular or compacted circuar stranded annealed copper wires
Seperator: A proper separator may be applied to a conductor
Insulation: Polyethylene
Color :
2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyvinyl chloride (PVC), Black color

Technical Characteristics:

Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 2000 volts

Cable Parameter:

No. of cores	Nominal sectional area	No. of wire	Diameter of Conductor (approx.)	Thickness of insulation	Thickness of sheath	Overall diameter (approx.)	Maximum DC. resistance of Cdr. at 20°C	Cable weight (approx.)
	mm²		mm	mm	mm	mm	Ohm / km	kg / km
2	1.25	7/0.45	1.35	0.8	1.5	9.4	16.8	95
	2	7/0.6	1.8	0.8	1.5	10.5	9.42	125
	3.5	7/0.8	2.4	0.8	1.5	11.5	5.3	165
	5.5	7/1.0	3	1	1.5	13.5	3.4	235
	8	7/1.2	3.6	1	1.5	15	2.36	300
	8	compacted	3.4	1	1.5	14.5	2.34	290
	14	7/1.6	4.8	1	1.5	17.5	1.33	450
	14	compacted	4.4	1	1.5	16.5	1.34	435
	22	7/2.0	6	1.2	1.5	2]	0.84	660
	22	compacted	5.5		1.5	19.5	0.849	635
3	1.25	7/0.45	1.35	0.8	1.5	9.9	16.8	115
	2	7/0.6	1.8	0.8	1.5	11	9.42	150
	3.5	7/0.8	2.4	0.8	1.5	12.5	5.3	210
	5.5	7/1.0	3	1	1.5	t4.5	3.4	300
	8	7/1.2	3.6	1	1.5	16	2.36	390
	8	compacted	3.4	1	1.5	15.5	2.34	380
	14	7/1.6	4.8	1	1.5	18.5	1.33	600
	14	compacted	4.4	1	1.5	17.5	1.34	585
	22	7/2.0	6	1.2	1.5	22	0.84	890
	22	compacted	5.5	1.2	1.5	21	0.849	8ω
4	1.25	7/0.45	1.35	0.8	1.5	11	16.8	135
	2	7/0.6	1.8	0.8	1.5	12	9.42	180
	3.5	7/0.8	2.4	0.8	1.5	13.5	5.3	260
	5.5	7/1.0	3	1	1.5	16	3.4	375
	8	41832	3.6	1	1.5	17	2.36	490
	8	compacted	3.4	1	1.5	16.5	2.34	475
	14	7/1.6	4.8	1	1.5	20	1.33	765
	14	compacted	4.4	1	1.5	19	1.34	745
	22	7/2.0	6	1.2	1.6	24	0.84	1160
	22	compacted	5.5	1.2	1.6	23	0.849	1120
5	1.25	7/0.45	1.35	0.8	1.5	11.5	16.8	160
	2	7/0.6	1.8	0.8	1.5	13	9.42	215
	3.5	7/0.8	2.4	0.8	1.5	14.5	5.3	310
	5.5	7/1.0	3	1	1.5	17	3.4	450
	8	7/ 1.2	3.6	1	1.5	19	2.36	595
		compacted	3.4	1	1.5	18.5	2.34	580
	14	7/1.6	4.8	1	1.6	23	1.33	945
		compacted	4.4	1	1.5	21	1.34	915
6	1.25	7/0.45	1.35	0.8	1.5	12.5	16.8	185
	2	7/0.6	1.8	0.8	1.5	14	9.42	250
	3.5	7/0.8	2.4	0.8	1.5	15.5	5.3	365
	5.5	7/1.0	3	1	1.5	18.5	3.4	530
	8	7/1.2	3.6	1	1.5	21	2.36	705
	8	compacted	3.4	1	1.5	20	2.34	690
	14	711.6	4.8	1	1.6	25	1.33	1130
	14	compacted	4.4	1	1.6	23	1.34	1100
7	1.25	7/0.45	1.35	0.8	1.5	12.5	16.8	195
	2	7/0.6	1.8	0.8	1.5	14	9.42	270
	3.5	7/0.8	2.4	0.8	1.5	15.5	5.3	395
	5.5	7/ 1.0	3	1	1.5	18.5	3.4	585
	8	7/1.2	3.6	1	1.5	21	2.36	780
	8	compacted	3.4	1	1.5	20	2.34	760
8	1.25	7/0.45	1.35	0.8	1.5	13.5	16.8	220
	2	7/0.6	1.8	0.8	1.5	15	9.42	305
	3.5	7/0.8	2.4	0.8	1.5	17	5.3	450
	5.5	7/1.0	3	1	1.5	20	3.4	665
	8	7/ 1.2	3.6	1	1.6	23	2.36	900
	8	compacted	3.4	1	1.5	22	2.34	870
10	1.25	7/0.45	1.35	0.8	1.5	15.5	16.8	275
	2	7/0.6	1.8	0.8	1.5	17.5	9.42	390
	3.5	7/0.8	2.4	0.8	1.5	19.5	5.3	575
	5.5	7/1.0	3	1	1.6	24	3.4	865
	8	7/ 1.2	3.6	1	1.7	27	2.36	1170
	8	compacted	3.4	1	1.7	26	2.34	1140
12	1.25	7/0.45	1.35	0.8	1.5	16	16.8	310
	2	7/0.6	1.8	0.8	1.5	18	9.42	440
	3.5	7/0.8	2.4	0.8	1.5	21	5.3	655
	5.5	7/1.0	3	1	1.7	25	3.4	1000
	8	7/ 1.2	3.6	1	1.8	28	2.36	1350
	8	compacted	3.4	1	1.7	27	2.34	1310
15	1.25	7/ 0.45	1.35	0.8	1.5	17	16.8	365
	2	7/0.6	1.8	0.8	1.5	19..0	9.42	525
	3.5	7/0.8	2.4	0.8	1.5	22	5.3	790
	5.5	7/1.0	3	l.0	1.7	27	3.4	1210
20	1.25	7/0.45	1.35	0.8	1.5	19	16.8	460
	2	7/0.6	1.8	0.8	1.5	22	9.42	670
	3.5	7/0.8	2.4	0.8	1.6	25	5.3	1030
	5.5	7/ 1.0	3	1	1.9	3J	3.4	1 590
30	1.25	7/0.45	1.35	0.8	1.6	23	.16.8	665
	2	7/0.6	1.8	0.8	1.7	26	9.42	990
	3.5	7/0.8	2.4	0.8	1.8	30	5.3	1530
