JIS C 3401 Cables
CEE
Application and Description:
For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.
Name Code:
C: For control
E: Polythylene
E: Polythylene

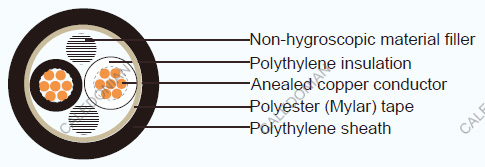

Cable Construction:
Conductor: Circular or compacted circuar stranded annealed copper wires
Seperator: A proper separator may be applied to a conductor
Insulation: Polyethylene
Color :
2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyethylene (PE), Black color
Technical Characteristics:
Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 2000 volts
Cable Parameter:
| No. of cores | Nominal sectional area | No. of wire | Diameter of Conductor (approx.) | Thickness of insulation | Thickness of sheath | Overall diameter (approx.) | Maximum DC. resistance of Cdr. at 20°C | Cable weight (approx.) |
|---|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | Ohm / km | kg / km | ||
| 2 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 9.4 | 16.8 | 80 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 10.5 | 9.42 | 105 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 11.5 | 5.3 | 145 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 13.5 | 3.4 | 205 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 15 | 2.36 | 270 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 14.5 | 2.34 | 260 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 17.5 | 1.33 | 415 | |
| 14 | compacted | 4.4 | 1 | 1.5 | 16.5 | 1.34 | 405 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.5 | 2] | 0.84 | 620 | |
| 22 | compacted | 5.5 | 1.5 | 19.5 | 0.849 | 595 | ||
| 3 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 9.9 | 16.8 | 95 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 11 | 9.42 | 130 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 12.5 | 5.3 | 185 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | t4.5 | 3.4 | 270 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 16 | 2.36 | 355 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 15.5 | 2.34 | 345 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 18.5 | 1.33 | 560 | |
| 14 | compacted | 4.4 | 1 | 1.5 | 17.5 | 1.34 | 550 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.5 | 22 | 0.84 | 845 | |
| 22 | compacted | 5.5 | 1.2 | 1.5 | 21 | 0.849 | 815 | |
| 4 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 11 | 16.8 | 115 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 12 | 9.42 | 160 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 13.5 | 5.3 | 230 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 16 | 3.4 | 340 | |
| 8 | 41832 | 3.6 | 1 | 1.5 | 17 | 2.36 | 455 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 16.5 | 2.34 | 445 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 20 | 1.33 | 720 | |
| 14 | compacted | 4.4 | 1 | 1.5 | 19 | 1.34 | 705 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.6 | 24 | 0.84 | 1100 | |
| 22 | compacted | 5.5 | 1.2 | 1.6 | 23 | 0.849 | 1070 | |
| 5 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 11.5 | 16.8 | 135 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 13 | 9.42 | 190 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 14.5 | 5.3 | 280 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 17 | 3.4 | 415 | |
| 8 | 7/ 1.2 | 3.6 | 1 | 1.5 | 19 | 2.36 | 555 | |
| compacted | 3.4 | 1 | 1.5 | 18.5 | 2.34 | 545 | ||
| 14 | 7/1.6 | 4.8 | 1 | 1.6 | 23 | 1.33 | 895 | |
| compacted | 4.4 | 1 | 1.5 | 21 | 1.34 | 870 | ||
| 6 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 12.5 | 16.8 | 160 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 14 | 9.42 | 225 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 15.5 | 5.3 | 330 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 18.5 | 3.4 | 495 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 21 | 2.36 | 665 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 20 | 2.34 | 650 | |
| 14 | 711.6 | 4.8 | 1 | 1.6 | 25 | 1.33 | 1070 | |
| 14 | compacted | 4.4 | 1 | 1.6 | 23 | 1.34 | 1050 | |
| 7 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 12.5 | 16.8 | 170 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 14 | 9.42 | 240 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 15.5 | 5.3 | 365 | |
| 5.5 | 7/ 1.0 | 3 | 1 | 1.5 | 18.5 | 3.4 | 545 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 21 | 2.36 | 735 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 20 | 2.34 | 720 | |
| 8 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 13.5 | 16.8 | 190 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 15 | 9.42 | 275 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 17 | 5.3 | 420 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 20 | 3.4 | 625 | |
| 8 | 7/ 1.2 | 3.6 | 1 | 1.6 | 23 | 2.36 | 855 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 22 | 2.34 | 830 | |
| 10 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 15.5 | 16.8 | 245 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 17.5 | 9.42 | 355 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 19.5 | 5.3 | 535 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.6 | 24 | 3.4 | 810 | |
| 8 | 7/ 1.2 | 3.6 | 1 | 1.7 | 27 | 2.36 | 1100 | |
| 8 | compacted | 3.4 | 1 | 1.7 | 26 | 2.34 | 1080 | |
| 12 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 16 | 16.8 | 275 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 18 | 9.42 | 400 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 21 | 5.3 | 615 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.7 | 25 | 3.4 | 940 | |
| 8 | 7/ 1.2 | 3.6 | 1 | 1.8 | 28 | 2.36 | 1280 | |
| 8 | compacted | 3.4 | 1 | 1.7 | 27 | 2.34 | 1250 | |
| 15 | 1.25 | 7/ 0.45 | 1.35 | 0.8 | 1.5 | 17 | 16.8 | 330 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 19..0 | 9.42 | 485 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 22 | 5.3 | 745 | |
| 5.5 | 7/1.0 | 3 | l.0 | 1.7 | 27 | 3.4 | 1140 | |
| 20 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 19 | 16.8 | 420 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 22 | 9.42 | 625 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.6 | 25 | 5.3 | 975 | |
| 5.5 | 7/ 1.0 | 3 | 1 | 1.9 | 3J | 3.4 | 1510 | |
| 30 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.6 | 23 | .16.8 | 615 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.7 | 26 | 9.42 | 930 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.8 | 30 | 5.3 | 1460 |
