JIS Industrial Cables
CE

Application and Description:

For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

Reference Standard:

IEC 60502-1

Cable Construction:

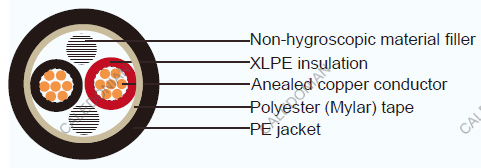

JIS Industrial Cables CE

Conductor: Circle or circle compacted stranded annealed copper wires Insulation: Cross-linked polyethylene(XLPE)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)

Sheath: Polyethylene(PE), Black color.(A special flame retardant sheath can be supplied).

Technical Characteristics:

Maximum conductor temperature 90oC Circuit voltage not exceeding 600 volts Test voltage 3500 volts

Cable Parameter:

Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20°C Cable weight (approx.)
mm² mm mm mm mm Ohm / km kg / km
1 core
1.5 7/0.53 1.59 0.7 1.4 6.3 12.1 40
2.5 7/0.67 2.01 0.7 1.4 6.7 7.41 55
4 7/0.85 2.55 0.7 1.4 7.2 4.61 70
6 7/1.04 3.12 0.7 1.4 7.8 3.08 90
10 7/1.35 4.05 0.7 1.4 9.4 1.83 150
16 compacted 4.7 0.7 1.4 10.0 1.15 180
25 compacted 5.9 0.9 1.4 12.0 0.727 280
35 compacted 6.9 0.9 1.4 13.0 0.524 370
50 compacted 8.1 1.0 1.4 14.5 0.387 480
70 compacted 9.8 1.1 1.4 16.0 0.268 680
95 compacted 11.4 1.1 1.5 18.5 0.193 920
120 compacted 12.9 1.2 1.5 20 0.153 1,150
150 compacted 14.4 1.4 1.6 22 0.124 1,420
185 compacted 15.9 1.6 1.6 24 0.0991 1,770
240 compacted 18.3 1.7 1.7 27 0.0754 2,310
300 compacted 20.5 1.8 1.8 30 0.0601 2,880
400 * 23.2 2.0 1.9 34 0.0470 3,680
500 * 26.4 2.2 2.0 37 0.0366 4,710
630 * 30.2 2.4 2.2 42 0.0283 6,060
2 cores
1.5 7/0.53 1.59 0.7 1.8 11.0 12.1 90
2.5 7/0.67 2.01 0.7 1.8 12.0 7.41 120
4 7/0.85 2.55 0.7 1.8 13.0 4.61 160
6 7/1.04 3.12 0.7 1.8 14.0 3.08 210
10 7/1.35 4.05 0.7 1.8 17.0 1.83 290
16 compacted 4.7 0.7 1.8 18.5 1.15 400
25 compacted 5.9 0.9 1.8 22.0 0.727 600
35 compacted 6.9 0.9 1.8 24.0 0.524 820
50 compacted 8.1 1.0 1.8 27 0.387 1,080
70 compacted 9.8 1.1 1.8 31 0.268 1,520
95 compacted 11.4 1.1 1.9 35 0.193 2,070
120 compacted 12.9 1.2 2.0 38 0.153 2,550
150 compacted 14.4 1.4 2.2 43 0.124 3,160
185 compacted 15.9 1.6 2.3 47 0.0991 3,940
240 compacted 18.3 1.7 2.5 53 0.0754 5,130
300 compacted 20.5 1.8 2.6 58 0.0601 6,380
3 cores
1.5 7/0.53 1.59 0.7 1.8 11.5 12.1 120
2.5 7/0.67 2.01 0.7 1.8 12.5 7.41 150
4 7/0.85 2.55 0.7 1.8 13.5 4.61 210
6 7/1.04 3.12 0.7 1.8 14.5 3.08 280
10 7/1.35 4.05 0.7 1.8 18.0 1.83 410
16 compacted 4.7 0.7 1.8 19.5 1.15 560
25 compacted 5.9 0.9 1.8 23 0.727 840
35 compacted 6.9 0.9 1.8 25 0.524 1,140
50 compacted 8.1 1.0 1.8 29 0.387 1,480
70 compacted 9.8 1.1 1.9 33 0.268 2,100
95 compacted 11.4 1.1 2.0 37 0.193 2,850
120 compacted 12.9 1.2 2.1 41 0.153 3,640
150 compacted 14.4 1.4 2.3 46 0.124 4,500
185 compacted 15.9 1.6 2.4 50 0.0991 5,630
240 compacted 18.3 1.7 2.6 57 0.0754 7,330
300 compacted 20.5 1.8 2.7 62 0.0601 9,110
4 cores
1.5 7/0.53 1.59 0.7 1.8 12.5 12.1 140
2.5 7/0.67 2.01 0.7 1.8 13.5 7.41 190
4 7/0.85 2.55 0.7 1.8 14.5 4.61 260
6 7/1.04 3.12 0.7 1.8 16.0 3.08 340
10 7/1.35 4.05 0.7 1.8 20 1.83 530
16 compacted 4.7 0.7 1.8 22 1.15 730
25 compacted 5.9 0.9 1.8 26 0.727 1,110
35 compacted 6.9 0.9 1.8 28 0.524 1,480
50 compacted 8.1 1.0 1.9 32 0.387 1,970
70 compacted 9.8 1.1 2.0 36 0.268 2,820
95 compacted 11.4 1.1 2.1 42 0.193 3,830
120 compacted 12.9 1.2 2.3 46 0.153 4,810
150 compacted 14.4 1.4 2.4 51 0.124 5,940
185 compacted 15.9 1.6 2.6 56 0.0991 7,430
240 compacted 18.3 1.7 2.8 63 0.0754 9,670
300 compacted 20.5 1.8 3.0 70 0.0601 12,040
