JIS Industrial Cables
CCES
Application and Description:
For used in control circuits required electrostatic shielding in underground duct, conduit and open air.
ReferenCCES Standard:
IEC 60502-1

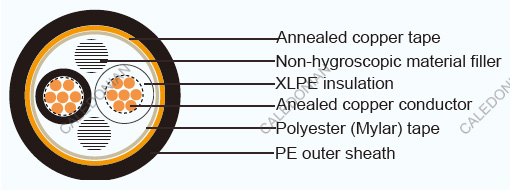

Cable Construction:
Conductor: Stranded annealed copper wires, Sizes: 1.5 mm2 up to 10 mm2 Insulation: Cross-linked polyethylene(XLPE)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional) Shield: Annealed copper tape, 0.1mm
Outer sheath: Polyethylene(PE), Black color (A special flame retardant can be supplied)
Technical Characteristics:
Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts
Cable Parameter:
| NO. of Cores | Conductor | Thickness of insulation | Thickness of outer Sheath | Overall diameter | Maximum conductor resistance (at 20°c) | Cable weight | ||
|---|---|---|---|---|---|---|---|---|
| Nominal cross- sectional area | No.& dia. of wires | Diameter | ||||||
| mm2 | mm | mm | mm | mm | mm | Ohm/km | kg/km | |
| 2 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 11.4 | 12.1 | 148 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 12.3 | 7.41 | 173 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 14.2 | 4.61 | 237 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 15.4 | 3.08 | 290 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 16.9 | 1.83 | 343 | |
| 3 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 11.9 | 12.1 | 169 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 12.9 | 7.41 | 214 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 15.0 | 4.61 | 301 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 16.2 | 3.08 | 375 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 17.9 | 1.83 | 457 | |
| 4 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 12.8 | 12.1 | 197 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 13.9 | 7.41 | 245 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 16.2 | 4.61 | 345 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 17.6 | 3.08 | 433 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 19.5 | 1.83 | 575 | |
| 5 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 13.8 | 12.1 | 227 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 15.0 | 7.41 | 287 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 17.3 | 4.61 | 410 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 19.2 | 3.08 | 526 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 21.4 | 1.83 | 690 | |
| 6 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 14.8 | 12.1 | 248 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 16.1 | 7.41 | 322 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 19.0 | 4.61 | 486 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 20.8 | 3.08 | 614 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 23.2 | 1.83 | 838 | |
| 7 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 14.8 | 12.1 | 279 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 16.1 | 7.41 | 362 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 19.0 | 4.61 | 543 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 20.8 | 3.08 | 710 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 23.2 | 1.83 | 972 | |
| 8 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 15.8 | 12.1 | 312 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 17.3 | 7.41 | 408 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 20.5 | 4.61 | 608 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 21.7 | 3.08 | 789 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 24.5 | 1.83 | 1074 | |
| 10 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 18.2 | 12.1 | 408 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 19.9 | 7.41 | 532 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 23.8 | 4.61 | 792 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 22.4 | 3.08 | 1019 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 29.6 | 1.83 | 1392 | |
| 12 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 18.7 | 12.1 | 462 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 20.5 | 7.41 | 597 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 24.6 | 4.61 | 898 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 27.0 | 3.08 | 1176 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 30.5 | 1.83 | 1629 | |
| 15 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 20.0 | 12.1 | 537 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 22.1 | 7.41 | 717 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 26.4 | 4.61 | 1066 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 29.1 | 3.08 | 1402 | |
| 20 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 22.1 | 12.1 | 646 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 24.5 | 7.41 | 871 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 29.5 | 4.61 | 1367 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 32.5 | 3.08 | 1826 | |
| 30 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 26.3 | 12.1 | 942 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 28.2 | 7.41 | 1242 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.9 | 35.6 | 4.61 | 1964 | |
