Italian Standard Industrial Cables
H05VVC4V5-K

Application and Description

These cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened termination and connection cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies. Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working processes.

Standard and Approval

  • <HAR> HD 21.13 S1
  • VDE-0281 Part-13
  • CEI 20-20/13
  • CEI 20-35 (EN60332-1)
  • CEI 20-52
  • UL 2464

Cable Construction

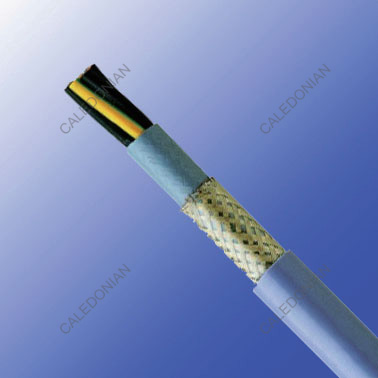

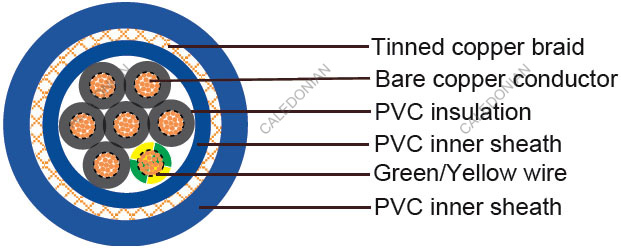

H05VVC4V5-F H05VVC4V5-F - Italian Standard Industrial Cables
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
PVC insulation T12 to DIN VDE 0281 part 1
Green-yellow grounding (3 conductors and above)
Cores to VDE-0293 colors
PVC inner sheath TM2 to DIN VDE 0281 part 1
Tinned copper braided shielding, covering approx. 85%
PVC outer jacket TM5 to DIN VDE 0281 part 1

Technical Characteristics

Working voltage 300/500v
Test voltage 2000volts
Flexing bending radius 10 x Ø
Static bending radius 5 x Ø
Flexing Temperature -5 ºC to +70 ºC
Static temperature -40 ºC to +70 ºC
Flame retardant IEC 60332.1
Insulation resistance 20 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Inner Sheath Nominal Thickness of outer Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm² mm mm mm mm kg/km kg/km
20(16/32) 2 x 0,50 0.6 0.7 0.9 7,7 35 105
18(24/32) 2 x 0,75 0.6 0.7 0.9 8 39 115
17(32/32) 2 x 1,0 0.6 0.7 0.9 8,2 44 125
16(30/30) 2 x 1,50 0.7 0.7 1.0 9,3 58 160
14(50/30) 2 x 2,50 0.8 0.7 1.1 10,7 82 215
20(16/32) 3 x 0,50 0.6 0.7 0.9 8 40 115
18(24/32) 3 x 0,75 0.6 0.7 0.9 8,3 47 125
17(32/32) 3 x 1,0 0.6 0.7 1.0 8,8 54 145
16(30/30) 3 x 1,50 0.7 0.7 1.0 9,7 73 185
14(50/30) 3 x 2,50 0.8 0.7 1.1 11,3 106 250
20(16/32) 4 x 0,50 0.6 0.7 0.9 8,5 44 125
18(24/32) 4 x 0,75 0.6 0.7 1.0 9,1 58 155
17(32/32) 4 x 1,0 0.6 0.7 1.0 9,4 68 170
16(30/30) 4 x 1,50 0.7 0.7 1.1 10,7 93 220
14(50/30) 4 x 2,50 0.8 0.8 1.2 12,6 135 305
20(16/32) 5 x 0,50 0.6 0.7 1.0 9,3 55 155
18(24/32) 5 x 0,75 0.6 0.7 1.1 9,7 66 175
17(32/32) 5 x 1,0 0.6 0.7 1.1 10,3 78 200
16(30/30) 5 x 1,50 0.7 0.8 1.2 11,8 106 265
14(50/30) 5 x 2,50 0.8 0.8 1.3 13,9 181 385
20(16/32) 7 x 0,50 0.6 0.7 1.1 10,8 69 205
18(24/32) 7 x 0,75 0.6 0.7 1.2 11,5 84 250
17(32/32) 7 x 1,0 0.6 0.8 1.2 12,2 107 275
16(30/30) 7 x 1,50 0.7 0.8 1.3 14,1 162 395
14(50/30) 7 x 2,50 0.8 0.8 1.5 16,5 238 525
20(16/32) 12 x 0,50 0.6 0.8 1.3 13,3 98 285
18(24/32) 12 x 0,75 0.6 0.8 1.3 13,9 125 330
17(32/32) 12 x 1,0 0.6 0.8 1.4 14,7 176 400
16(30/30) 12 x 1,50 0.7 0.8 1.5 16,7 243 525
14(50/30) 12 x 2,50 0.8 0.8 1.7 19,9 367 745
20(16/32) 18 x 0,50 0.6 0.9 1.3 18,6 147 385
18(24/32) 18 x 0,75 0.6 0.8 1.5 19,9 200 475
17(32/32) 18 x 1,0 0.6 0.8 1.5 20,8 243 525
16(30/30) 18 x 1,50 0.7 0.8 1.7 24,1 338 720
14(50/30) 18 x 2,50 0.8 0.9 2.0 28,5 555 1075
20(16/32) 25 x 0,50 0.6 0.8 1.6 22,1 199 505
18(24/32) 25 x 0,75 0.6 0.9 1.7 23,7 273 625
17(32/32) 25 x 1,0 0.6 0.9 1.7 24,7 351 723
16(30/30) 25 x 1,50 0.7 0.9 2.0 28,6 494 990
14(50/30) 25 x 2,50 0.8 1.0 2.3 34,5 792 1440
20(16/32) 36 x 0.50 0.6 0.9 1.7 24.7 317 620
18(24/32) 36 x 0.75 0.6 0.9 1.8 26.2 358 889
17(32/32) 36 x 1,0 0.6 0.9 1.9 27,6 438 910
16(30/50) 36 x 1,50 0.7 1.0 2.2 32,5 662 1305
14(30/32) 36 x 2,50 0.8 1.0 2.4 38,5 1028 1850
20(16/32) 48 x 0,50 0.6 0.9 1.9 28,3 353 845
18(24/32) 48 x 0,75 0.6 1.0 2.1 30,4 490 1060
17(32/32) 48 x 1,0 0.6 1.0 2.1 31,9 604 1210
16(30/30) 48 x 1,50 0.7 1.1 2.4 37 855 1665
14(50/30) 48 x 2,50 0.8 1.2 2.4 43,7 1389 2390
20(16/32) 60 x 0,50 0.6 1.0 2.1 31,1 432 1045
18(24/32) 60 x 0,75 0.6 1.0 2.3 329 576 1265
17(32/32) 60 x 1,0 0.6 1.0 2.3 34,7 720 1455
16(30/30) 60 x 1,50 0.7 1.1 2.4 39,9 1050 1990
14(50/30) 60 x 2,50 0.8 1.2 2.4 47,2 1706 2870
