Itanlian Standard Industrial Cables
H05V-K

Application and Description

These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.

Standard and Approval

  • NF C 32-201-3
  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC

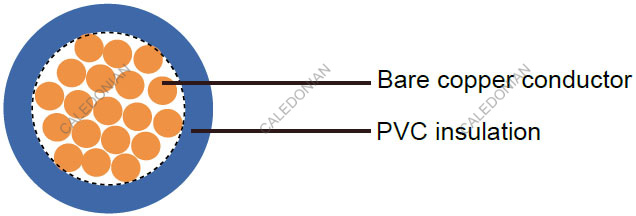

Cable Construction

H05V-K H05V-K
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart

Technical Characteristics

Working voltage 300/500v
Test voltage 2000 volts
Flexing bending radius 12.5 x Ø
Static bending radius 12.5 x Ø
Flexing temperature -5ºC to +70ºC
Static temperature -30ºC to +80ºC
Flame retardant NF C 32-070
Insulation resistance 10 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
  # x mm² mm mm kg/km kg/km
20(16/32) 1 x 0.5 0.6 2.1 4.9 10
18(24/32) 1 x 0.75 0.6 2.4 7.2 13
17(32/32) 1 x 1 0.6 2.6 9.6 15
