German Standard Industrial Cables
LiHCH TP
Application and Description
LiHCH TP is for use in flexible or stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry, moist and wet conditions. Commonly used as connecting cable for signal, measuring, control, call-announcing and two-way intercom systems, clock installations, electronic weighing machines and electrical apparatus for office use. The halogenfree thermoplastic jacket is flame retardant and will give off no corrosive or toxic gases in the case of fire. Commonly installed in public buildings, laboratories, trading and transportation centers. The twisted pair design will reduce internal interference (crosstalk) while the tinned copper braid shield offers added protection and interference-free signal and data transfers. Not permitted for outdoor use.
Standard and Approval
VDE 0482 part 267, VDE 0812, CE Low Voltage Directive 73/23/EEC and 93/68/EEC,

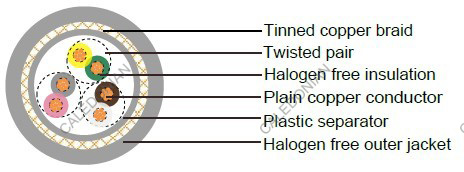

Cable Construction
- Plain copper conductor
- Stranded to DIN VDE 0295 cl. 5, IEC 60228 cl.5
- Halogen free core insulation
- Color coded to DIN 47100, but without color repetition
- Cores twisted into layers
- Plastic foil separator
- 85% tinned copper braid
- Halogen free outer jacket
Technical Characteristics
- Working voltage: 250 volts
- Test voltage: 1200 volts
- Minimum bending radius: 5 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -40º C to +70º C
- Flame retardant: IEC 60332.1-2
- Mutual Capacitance: Conductor./conductor: 80 nF/km
Conductor./shield: 120 nF/km
- Halogen free: DIN EN 50267/IEC 60754
- Smoke density: DIN EN50268/IEC 61034
- Insulation resistance: 20 MΩ x km
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Copper Weight kg / km | Cable Weight kg / km |
---|---|---|---|---|
26(18/38) | 2x2x0.14 | 5.2 | 19.1 | 34 |
26(18/38) | 3x2x0.14 | 5.7 | 23.4 | 41 |
26(18/38) | 4x2x0.14 | 6.5 | 27.8 | 53 |
26(18/38) | 5x2x0.14 | 7.0 | 31.9 | 60 |
26(18/38) | 6x2x0.14 | 7.2 | 36.2 | 68 |
26(18/38) | 8x2x0.14 | 7.8 | 43.4 | 80 |
26(18/38) | 10x2x0.14 | 8.9 | 50.6 | 100 |
26(18/38) | 12x2x0.14 | 9.7 | 58.2 | 111 |
26(18/38) | 16x2x0.14 | 10.5 | 71.4 | 136 |
26(18/38) | 18x2x0.14 | 11.1 | 92.8 | 159 |
26(18/38) | 20x2x0.14 | 11.7 | 98.1 | 164 |
26(18/38) | 24x2x0.14 | 12.3 | 114.8 | 203 |
26(18/38) | 25x2x0.14 | 12.8 | 117.5 | 207 |
26(18/38) | 28x2x0.14 | 13.1 | 125.7 | 221 |
26(18/38) | 30x2x0.14 | 13.8 | 135.6 | 237 |
26(18/38) | 36x2x0.14 | 14.6 | 157.8 | 275 |
26(18/38) | 40x2x0.14 | 14.9 | 168.2 | 296 |
26(18/38) | 44x2x0.14 | 16.3 | 205.9 | 348 |
26(18/38) | 52x2x0.14 | 17.0 | 228.1 | 388 |
26(18/38) | 61x2x0.14 | 18.3 | 263.2 | 443 |
24(14/34) | 2x2x0.25 | 5.7 | 24.9 | 42 |
24(14/34) | 3x2x0.25 | 6.4 | 31.4 | 55 |
24(14/34) | 4x2x0.25 | 7.8 | 44.9 | 81 |
24(14/34) | 6x2x0.25 | 7.9 | 50.7 | 85 |
24(14/34) | 8x2x0.25 | 9.0 | 62.1 | 109 |
24(14/34) | 10x2x0.25 | 9.8 | 73.9 | 132 |
24(14/34) | 12x2x0.25 | 10.9 | 101.9 | 160 |
24(14/34) | 16x2x0.25 | 11.9 | 126.8 | 195 |
24(14/34) | 18x2x0.25 | 12.7 | 136.6 | 222 |
24(14/34) | 24x2x0.25 | 14.2 | 170.3 | 270 |
22(7/30) | 2x2x0.34 | 6.8 | 31.5 | 57 |
22(7/30) | 3x2x0.34 | 7.4 | 39.7 | 72 |
22(7/30) | 4x2x0.34 | 8.8 | 49.8 | 99 |
22(7/30) | 5x2x0.34 | 9.5 | 58.5 | 116 |
22(7/30) | 6x2x0.34 | 9.7 | 65.1 | 128 |
22(7/30) | 8x2x0.34 | 10.6 | 80.7 | 144 |
22(7/30) | 12x2x0.34 | 13.4 | 133.1 | 225 |
22(7/30) | 16x2x0.34 | 14.6 | 165.0 | 280 |
22(7/30) | 18x2x0.34 | 15.1 | 178.3 | 306 |
22(7/30) | 24x2x0.34 | 17.6 | 255.1 | 415 |
20(16/32) | 2x2x0.5 | 7.2 | 39.3 | 66 |
20(16/32) | 3x2x0.5 | 7.9 | 50.1 | 84 |
20(16/32) | 4x2x0.5 | 9.6 | 82.0 | 146 |
20(16/32) | 6x2x0.5 | 10.4 | 86.0 | 146 |
20(16/32) | 8x2x0.5 | 10.9 | 111.5 | 166 |
20(16/32) | 10x2x0.5 | 13.2 | 146.5 | 229 |
20(16/32) | 12x2x0.5 | 14.4 | 175.7 | 268 |
20(16/32) | 16x2x0.5 | 16.3 | 241.3 | 368 |
20(16/32) | 18x2x0.5 | 16.9 | 261.0 | 399 |
20(16/32) | 20x2x0.5 | 16.9 | 280.2 | 418 |
20(16/32) | 24x2x0.5 | 19.0 | 330.4 | 491 |
18(24/32) | 2x2x0.75 | 8.5 | 52.4 | 92 |
18(24/32) | 3x2x0.75 | 9.4 | 69.4 | 112 |
18(24/32) | 4x2x0.75 | 10.9 | 108.0 | 179 |
18(24/32) | 6x2x0.75 | 12.5 | 136.5 | 218 |
18(24/32) | 8x2x0.75 | 14.9 | 180.0 | 305 |
18(24/32) | 12x2x0.75 | 17.1 | 261.2 | 385 |
18(24/32) | 16x2x0.75 | 18.6 | 329.9 | 482 |
18(24/32) | 18x2x0.75 | 19.3 | 369.3 | 535 |
18(24/32) | 24x2x0.75 | 21.8 | 469.2 | 661 |
17(32/32) | 2x2x1.0 | 10.5 | 84.0 | 142 |
17(32/32) | 3x2x1.0 | 10.6 | 96.0 | 173 |
17(32/32) | 4x2x1.0 | 11.5 | 121.0 | 212 |
17(32/32) | 5x2x1.0 | 12.0 | 161.0 | 266 |
