German Standard Industrial Cables
Li2YCY/ Li2YCYv TP
Application and Description
The PE-insulated data cable is designed for computer application and data transmission. It is specially
designed for wiring data systems with transmission rates up to 10MB/s, eg. for interfaces of types RS
422, RS 485. The twisted pair lay-up prevents electrical unbalances within the cable and this effectively
suppresses cross-talk effect. It is designed for limited flexible use as well as for fixed installation in dry and
damp interiors. Yv version reinforced with a black outer sheath suitable for outdoor and indoor use as well as
for direct burial.
Standard and Approval
CE Low Voltage Directive 73/23/EEC and 93/68/EEC,

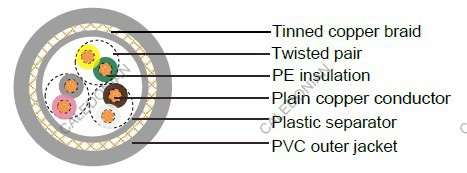

Cable Construction
- Plain copper conductor
- 7-wires strands to DIN VDE 0881, Suitable for Termi-Point and solder-free connection technique
- PE core insulation type 2YI1 to DIN VDE 0207 part 2
- Color coded to DIN 47100 with color repetition
- Cores twisted into layers
- Plastic foil separator
- 85% tinned copper braid
- PVC outer jacket type YM2 grey to DIN VDE 0207 part 5
Technical Characteristics
- Working voltage: 250 volts
- Test voltage: Conductor to conductor 2000 V
Conductor to shield 1000 V
- Minimum bending radius: 7.5 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -30º C to +80º C
- Flame retardant: IEC 60332.1-2
- Insulation resistance: 5GΩ x km
- Impedance: 100 Ω + 15Ω
- Mutual capacitance at 800 Hz: max. 60 nF/km
- Loop resistance: max. 160 Ohm/km
- Inductance: approx. 0.66 mH/km
- Cross-Talk Attenuation: Up 1 MHz min. 50 dB / Up 10 MHz min. 40 dB
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Copper Weight kg / km | Cable Weight kg / km |
---|---|---|---|---|
24(7/32) | 2 x 2 x 0.22 | 7.3 | 31.0 | 95 |
24(7/32) | 3 x 2 x 0.22 | 7.5 | 34.0 | 105 |
24(7/32) | 4 x 2 x 0.22 | 9.3 | 45.0 | 140 |
24(7/32) | 8 x 2 x 0.22 | 13.5 | 97.0 | 245 |
24(7/32) | 10 x 2 x 0.22 | 14.0 | 108.0 | 325 |
22(7/30) | 2 x 2 x 0.34 | 9.5 | 62.0 | 125 |
22(7/30) | 3 x 2 x 0.34 | 10.0 | 78.2 | 140 |
22(7/30) | 4 x 2 x 0.34 | 12.0 | 124.1 | 205 |
22(7/30) | 8 x 2 x 0.34 | 17.0 | 178.7 | 330 |
22(7/30) | 10 x 2 x 0.34 | 17.2 | 213.9 | 420 |
20(7/28) | 2 x 2 x 0.50 | 10.1 | 73.1 | 139 |
20(7/28) | 3 x 2 x 0.50 | 11.0 | 88.1 | 157 |
20(7/28) | 4 x 2 x 0.50 | 12.4 | 137.2 | 213 |
20(7/28) | 8 x 2 x 0.50 | 16.0 | 247.2 | 385 |
20(7/28) | 10 x 2 x 0.50 | 17.6 | 288.7 | 433 |
