German Standard Industrial Cables
H00V-D

Application and Description

These high flexible earth conductors are used for earthing of portable equipment and short circuiting. These cables perform a protective function in the live repair of high voltage power supply in railway systems, failing current equipment, alternating current systems and in networks of transmission and distribution. Because of that these are designated as safety cables. These earthing cables offer special characteristics with low weights, high flexibility to a wide temperature range and the behavior in high temperature. The protective overall PVC jacket assure essential function for proper protection against mechanical and chemical stresses.

Standard and Approval

EN61138, VDE-0283 Part-3, DIN 46438 & DIN 46440,

Cable Construction

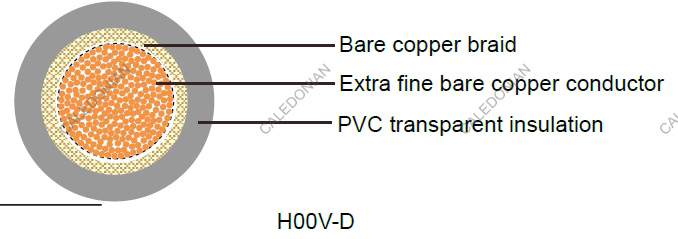

- Extra fine bare copper strands
- Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
- Overall bare copper wire braid (for ESUY type)
- PVC transparent jacket TM2
- High stress resistance
- Spark Test 6, 4 & 2 AWG: 5000V
- Spark Test 1 & 2/0 AWG: 6000V
- Spark Test 3/0 - 500 MCM: 8000V

Technical Characteristics

- Working voltage: 300/500Vearthing only
- Test voltage: 2000 volts
- Minimal bending radius: 12.0 x Ø
- Temperature range: -5º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

H00V-D German Standard Industrial Cables

Cable Parameter

H00V-D (ESEU type)

AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Overall Diameter mm Nominal Copper Weight kg/Km Nominal Weight kg/Km
6(4200/41) 1 x 16 9.1 194 230
4(3192/38) 1 x 25 10.5 280 335
2(4480/38) 1 x 35 12.5 415 475
1(6383/38) 1 x 50 14.2 585 670
2/0(8918/38) 1 x 70 16.8 820 905
3/0(12100/38) 1 x 95 19.8 1090 1220
4/0(15300/38) 1 x 120 21.5 1360 1505
300MCM(19152/38) 1 x 150 24 1650 1940
350MCM(23580/38) 1 x 185 27.6 2150 2390
500MCM(30600/38) 1 x 240 31 2750 3090

H00V-D (ESY type)

AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Overall Diameter mm Nominal Copper Weight kg/Km Nominal Weight kg/Km
6(525/32) 1 x 16 8.5 155 185
4(798/32) 1 x 25 10.0 240 270
2(1120/32) 1 x 35 12.5 336 390
1(1617/32) 1 x 50 14.0 480 575
2/0(2254/32) 1 x 70 17.2 672 810
3/0(3087/32) 1 x 95 19.5 912 1080
4/0(3822/32) 1 x 120 22.8 1152 1320
300MCM(4802/32) 1 x 150 25.4 1440 1680
