French Standard Industrial Cables
U-1000 RVFV
Application and Description
With a sheath and armor, U-1000 RVFV is an enhanced version of the cables and U-1000 R2V They are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion (rank BE3 NF C 15-100) with mechanical protection is necessary and in this case the intensity must be reduced by 15%.
Standard and Approval
NF C 32-322

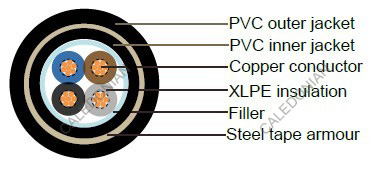

Cable Construction
- Flexible copper strands
- Strands to IEC 60228, ≤4mm2,class 1, ≥6mm2,class 2
- XLPE insulation according to XP C 32-321
- Color codes to HD 308 S2(XP C32-321)
- Not fibrous and not hygroscopic filler
- PVC inner jacket
- Two steel tapes helically wraped armour
- Flexible black PVC outer jacket
Technical Characteristics
- Working Voltage: 600/1000 volts
- Test voltage: 1000 volts
- Minimum bending radius: 6 x Ø
- Operation temperature rage: -10 °C to 60 °C
- Short-circuit temperature: 250 °C
- Flame retardant: NF C 32-070 C2
- Insulation resistance: 20 MΩ x km
Cable Parameter
AWG | Cross Section mm2 | Insulation thickness mm | Amour thickness mm | Minimum Sheath thickness mm | Maximum Overall diameter mm | Approx Cable weight kg/km |
---|---|---|---|---|---|---|
16 | 2x1.5 | 0.7 | 0.2 | 1.3 | 11.5 | 230 |
14 | 2x2.5 | 0.7 | 0.2 | 1.3 | 12.5 | 275 |
12 | 2x4 | 0.7 | 0.2 | 1.4 | 13.5 | 330 |
10 | 2x6 | 0.7 | 0.2 | 1.4 | 15.5 | 430 |
8 | 2x10 | 0.7 | 0.2 | 1.4 | 16.5 | 555 |
6 | 2x16 | 0.7 | 0.2 | 1.5 | 19 | 770 |
4 | 2x25 | 0.9 | 0.2 | 1.6 | 22.5 | 1080 |
2 | 2x35 | 0.9 | 0.2 | 1.7 | 25 | 1390 |
16 | 3x1.5 | 0.7 | 0.2 | 1.3 | 12 | 255 |
14 | 3x2.5 | 0.7 | 0.2 | 1.3 | 13 | 305 |
12 | 3x4 | 0.7 | 0.2 | 1.4 | 14 | 380 |
10 | 3x6 | 0.7 | 0.2 | 1.4 | 16 | 500 |
8 | 3x10 | 0.7 | 0.2 | 1.5 | 17.5 | 665 |
6 | 3x16 | 0.7 | 0.2 | 1.5 | 20 | 930 |
4 | 3x25 | 0.9 | 0.2 | 1.6 | 24 | 1325 |
2 | 3x35 | 0.9 | 0.2 | 1.7 | 26.5 | 1720 |
1 | 3x50 | 0.9 | 0.2 | 1.8 | 29 | 2125 |
2/0 | 3x70 | 1.1 | 0.2 | 2 | 34.5 | 3080 |
3/0 | 3x95 | 1.1 | 0.5 | 2.1 | 40 | 4505 |
4/0 | 3x120 | 1.2 | 0.5 | 2.3 | 44.5 | 5540 |
300MCM | 3x150 | 1.4 | 0.5 | 2.4 | 48.5 | 6655 |
500MCM | 3x185 | 1.6 | 0.5 | 2.5 | 53.5 | 8150 |
750MCM | 3x240 | 1.7 | 0.5 | 2.7 | 61 | 10575 |
- | 3x300 | 1.8 | 0.5 | 2.9 | 66.5 | 13055 |
1 | 3x50+35 | 1.0/09 | 0.2 | 1.9 | 33 | 2730 |
2/0 | 3x70+50 | 1.1/0.9 | 0.2 | 2 | 36 | 3440 |
3/0 | 3x95+50 | 1.1/1.0 | 0.5 | 2.2 | 42.5 | 5080 |
4/0 | 3x120+70 | 1.2/1.1 | 0.5 | 2.3 | 46.5 | 6275 |
300MCM | 3x150+70 | 1.4/1.1 | 0.5 | 2.5 | 50 | 7340 |
500MCM | 3x185+70 | 1.6/1.1 | 0.5 | 2.6 | 56 | 8975 |
750MCM | 3x240+95 | 1.7/1.1 | 0.5 | 2.8 | 62.5 | 11435 |
16 | 4x1.5 | 0.7 | 0.2 | 1.3 | 13 | 290 |
14 | 4x2.5 | 0.7 | 0.2 | 1.4 | 14 | 355 |
12 | 4x4 | 0.7 | 0.2 | 1.4 | 15 | 440 |
10 | 4x6 | 0.7 | 0.2 | 1.4 | 17 | 585 |
8 | 4x10 | 0.7 | 0.2 | 1.5 | 19 | 800 |
6 | 4x16 | 0.7 | 0.2 | 1.6 | 22 | 1120 |
4 | 4x25 | 0.9 | 0.2 | 1.7 | 26 | 1650 |
2 | 4x35 | 0.9 | 0.2 | 1.8 | 29 | 2135 |
1 | 4x50 | 1 | 0.2 | 1.9 | 32.5 | 2745 |
2/0 | 4x70 | 1.1 | 0.5 | 2.1 | 39 | 4295 |
3/0 | 4x95 | 1.1 | 0.5 | 2.3 | 44.5 | 5660 |
4/0 | 4x120 | 1.2 | 0.5 | 2.4 | 48.5 | 6880 |
300MCM | 4x150 | 1.4 | 0.5 | 2.6 | 53 | 8315 |
500MCM | 4x185 | 1.6 | 0.5 | 2.7 | 60.5 | 10510 |
750MCM | 4x240 | 1.7 | 0.5 | 2.9 | 67 | 13370 |
- | 4x300 | 1.8 | 0.5 | 3.1 | 73 | 16360 |
16 | 5x1.5 | 0.7 | 0.2 | 1.4 | 14 | 335 |
14 | 5x2.5 | 0.7 | 0.2 | 1.4 | 15 | 415 |
12 | 5x4 | 0.7 | 0.2 | 1.4 | 16 | 515 |
10 | 5x6 | 0.7 | 0.2 | 1.5 | 18.5 | 705 |
8 | 5x10 | 0.7 | 0.2 | 1.6 | 21 | 955 |
6 | 5x16 | 0.7 | 0.2 | 1.8 | 23.5 | 1340 |
4 | 5x25 | 0.9 | 0.2 | 1.8 | 29.5 | 2085 |
16 | 7x1.5 | 0.7 | 0.2 | 1.4 | 15 | 395 |
14 | 7x2.5 | 0.7 | 0.2 | 1.4 | 16 | 495 |
16 | 12x1.5 | 0.7 | 0.2 | 1.5 | 19 | 605 |
14 | 12x2.5 | 0.7 | 0.2 | 1.5 | 20.5 | 750 |
16 | 19x1.5 | 0.7 | 0.2 | 1.5 | 21.5 | 775 |
14 | 19x2.5 | 0.7 | 0.2 | 1.6 | 24 | 1045 |
16 | 24x1.5 | 0.7 | 0.2 | 1.6 | 24.5 | 980 |
14 | 24x2.5 | 0.7 | 0.5 | 1.7 | 29 | 1570 |
16 | 27x1.5 | 0.7 | 0.2 | 1.7 | 25 | 1050 |
14 | 27x2.5 | 0.7 | 0.2 | 1.8 | 28.5 | 1410 |
16 | 37x1.5 | 0.7 | 0.2 | 1.7 | 28 | 1320 |
14 | 37x2.5 | 0.7 | 0.2 | 1.8 | 31.5 | 1790 |
