CVVS
Application and Description
For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet
cable trenches.

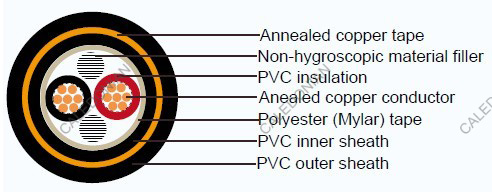

Cable Construction
Conductor: Concentric Stranded annealed copper wires, Sizes: 0.5 mm2 up to 6 mm2
Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Inner sheath: Polyvinyl chloride (PVC), Black color
Shield: Annealed copper tape, 0.1mm
Outer sheath: Polyvinyl chloride (PVC), Black color (A Special FR-PVC flame retardant sheath can be
supplied)
Technical Characteristics
Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 2000volts(JIS) / 3500 volts(IEC)
Cable Parameter
Cables to IEC 60502-1
No. of cores |
Conductor |
Thickness of insulation |
Thickness of inner Sheath |
Thickness of outer Sheath |
Overall diameter |
Maximum conductor resistance (at 20°c) | Minimum insulation resistance (at 70°c) |
Cable weight |
||
Nominal cross-sectional area | No.& dia.of wire | Diameter | ||||||||
mm² |
mm | mm |
mm |
mm | mm |
mm |
Ohm / km |
MOhm/km |
kg / km |
|
2 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 12.5 | 36 | 0.0162 | 180 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 13 | 24.5 | 0.0142 | 190 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 13.5 | 18.1 | 0.0128 | 210 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 14 | 12.1 | 0.0112 | 230 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 15 | 7.41 | 0.0093 | 270 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 17 | 4.61 | 0.0092 | 360 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 18 | 3.08 | 0.0078 | 440 | |
3 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 13 | 36 | 0.0162 | 200 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 13.5 | 24.5 | 0.0142 | 220 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 14 | 18.1 | 0.0128 | 230 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 14.5 | 12.1 | 0.0112 | 260 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 15.5 | 7.41 | 0.0093 | 320 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 17.5 | 4.61 | 0.0092 | 430 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 19 | 3.08 | 0.0078 | 520 | |
4 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 14 | 36 | 0.0162 | 220 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 14.5 | 24.5 | 0.0142 | 240 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 15 | 18.1 | 0.0128 | 270 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 15.5 | 12.1 | 0.0112 | 300 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 16.5 | 7.41 | 0.0093 | 370 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 19 | 4.61 | 0.0092 | 510 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 20.5 | 3.08 | 0.0078 | 630 | |
5 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.8 | 14.5 | 36 | 0.0162 | 250 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.8 | 15 | 24.5 | 0.0142 | 280 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.8 | 15.5 | 18.1 | 0.0128 | 310 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.8 | 16.5 | 12.1 | 0.0112 | 350 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.8 | 17.5 | 7.41 | 0.0093 | 440 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.8 | 20.5 | 4.61 | 0.0092 | 610 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.8 | 22 | 3.08 | 0.0078 | 760 | |
6 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 15.5 |
36 | 0.0162 |
260 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 16 | 24.5 |
0.0142 |
300 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 16.5 |
18.1 |
0.0128 |
330 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 17.5 |
12.1 |
0.0112 |
380 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 19 | 7.41 |
0.0093 |
470 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 22 | 4.61 |
0.0092 |
660 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 23.5 |
3.08 |
0.0078 |
830 |
|
7 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 15.5 |
36 | 0.0162 |
270 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 16 | 24.5 |
0.0142 |
310 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 16.5 |
18.1 |
0.0128 |
340 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 17.5 |
12.1 |
0.0112 |
390 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 19 | 7.41 |
0.0093 |
500 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 22 | 4.61 |
0.0092 |
700 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 23.5 |
3.08 |
0.0078 |
880 |
|
8 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 16.5 |
36 | 0.0162 |
300 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 17 | 24.5 |
0.0142 |
340 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 17.5 |
18.1 |
0.0128 |
370 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 18.5 |
12.1 |
0.0112 |
430 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 20 | 7.41 |
0.0093 |
550 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 23.5 |
4.61 |
0.0092 |
780 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 25 | 3.08 |
0.0078 |
990 |
|
9 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 17 | 36 | 0.0162 |
330 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 18 | 24.5 |
0.0142 |
370 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 18.5 |
18.1 |
0.0128 |
410 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 19.5 |
12.1 |
0.0112 |
480 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 21 | 7.41 |
0.0093 |
610 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 25 | 4.61 |
0.0092 |
870 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 27 | 3.08 |
0.0078 |
1110 |
|
10 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 18 | 36 | 0.0162 |
350 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 19 | 24.5 |
0.0142 |
400 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 20 | 18.1 |
0.0128 |
440 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 21 | 12.1 |
0.0112 |
520 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 22.5 |
7.41 |
0.0093 |
670 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 26.5 |
4.61 |
0.0092 |
950 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 29 | 3.08 |
0.0078 |
1210 |
|
11 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 18.5 |
36 | 0.0162 |
370 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 19.5 |
24.5 |
0.0142 |
430 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 20.5 |
18.1 |
0.0128 |
480 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 21.5 |
12.1 |
0.0112 |
560 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 23.5 |
7.41 |
0.0093 |
730 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 27.5 |
4.61 |
0.0092 |
1040 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 30 | 3.08 |
0.0078 |
1330 |
|
12 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 18.5 |
36 | 0.0162 |
380 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 19.5 |
24.5 |
0.0142 |
440 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 20.5 |
18.1 |
0.0128 |
490 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 21.5 |
12.1 |
0.0112 |
580 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 23.5 |
7.41 |
0.0093 |
750 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 27.5 |
4.61 |
0.0092 |
1080 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 30 | 3.08 |
0.0078 |
1390 |
|
13 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 19.5 |
36 | 0.0162 |
410 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 20.5 |
24.5 |
0.0142 |
470 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 21 | 18.1 |
0.0128 |
530 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 22.5 |
12.1 |
0.0112 |
630 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 24.5 |
7.41 |
0.0093 |
810 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 28.5 |
4.61 |
0.0092 |
1180 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 31 | 3.08 |
0.0078 |
1520 |
|
14 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 19.5 |
36 | 0.0162 |
420 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 20.5 |
24.5 |
0.0142 |
480 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 21 | 18.1 |
0.0128 |
540 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 22.5 |
12.1 |
0.0112 |
640 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 24.5 |
7.41 |
0.0093 |
840 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 28.5 |
4.61 |
0.0092 |
1210 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.8 | 31 | 3.08 |
0.0078 |
1570 |
|
15 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 20 | 36 | 0.0162 |
450 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 21 | 24.5 |
0.0142 |
520 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 22 | 18.1 |
0.0128 |
590 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 23 | 12.1 |
0.0112 |
700 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 25.5 |
7.41 |
0.0093 |
910 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 30 | 4.61 |
0.0092 |
1320 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.9 | 33 | 3.08 |
0.0078 |
1730 |
|
16 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 20 | 36 | 0.0162 |
460 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 21 | 24.5 |
0.0142 |
530 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 22 | 18.1 |
0.0128 |
600 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 23 | 12.1 |
0.0112 |
710 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 25.5 |
7.41 |
0.0093 |
930 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 30 | 4.61 |
0.0092 |
1360 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.9 | 33 | 3.08 |
0.0078 |
1780 |
|
17 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 21 | 36 | 0.0162 |
490 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 22 | 24.5 |
0.0142 |
570 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 23 | 18.1 |
0.0128 |
640 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 24 | 12.1 |
0.0112 |
770 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 26.5 |
7.41 |
0.0093 |
1010 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 31.5 |
4.61 |
0.0092 |
1470 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.9 | 34.5 |
3.08 |
0.0078 |
1930 |
|
18 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 21 | 36 | 0.0162 |
500 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 22 | 24.5 |
0.0142 |
580 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 23 | 18.1 |
0.0128 |
650 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 24 | 12.1 |
0.0112 |
780 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 26.5 |
7.41 |
0.0093 |
1030 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 31.5 |
4.61 |
0.0092 |
1510 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.9 | 34.5 |
3.08 |
0.0078 |
1990 |
|
19 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 21 | 36 | 0.0162 |
500 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 22 | 24.5 |
0.0142 |
590 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 23 | 18.1 |
0.0128 |
660 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 24 | 12.1 |
0.0112 |
790 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 26.5 |
7.41 |
0.0093 |
1050 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.8 | 31.5 |
4.61 |
0.0092 |
1540 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.9 | 34.5 |
3.08 |
0.0078 |
2040 |
|
20 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 22 | 36 | 0.0162 |
530 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 23 | 24.5 |
0.0142 |
620 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 24 | 18.1 |
0.0128 |
710 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 25.5 |
12.1 |
0.0112 |
850 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 27.5 |
7.41 |
0.0093 |
1130 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.9 | 33 | 4.61 |
0.0092 |
1680 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2 | 37 | 3.08 |
0.0078 |
2250 |
|
21 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 22 | 36 | 0.0162 |
540 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 23 | 24.5 |
0.0142 |
630 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 24 | 18.1 |
0.0128 |
720 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 25.5 |
12.1 |
0.0112 |
860 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 27.5 |
7.41 |
0.0093 |
1150 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.9 | 33 | 4.61 |
0.0092 |
1700 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2 | 37 | 3.08 |
0.0078 |
2280 |
|
22 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 22.5 |
36 | 0.0162 |
580 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 24 | 24.5 |
0.0142 |
680 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 25 | 18.1 |
0.0128 |
770 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 26.5 |
12.1 |
0.0112 |
930 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 29 | 7.41 |
0.0093 |
1240 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.9 | 34.5 |
4.61 |
0.0092 |
1840 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2 | 38.5 |
3.08 |
0.0078 |
2460 |
|
23 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 22.5 |
36 | 0.0162 |
590 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 24 | 24.5 |
0.0142 |
690 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 25 | 18.1 |
0.0128 |
780 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 26.5 |
12.1 |
0.0112 |
940 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 29 | 7.41 |
0.0093 |
1260 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.9 | 34.5 |
4.61 |
0.0092 |
1880 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2 | 38.5 |
3.08 |
0.0078 |
2520 |
|
24 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 23.5 |
36 | 0.0162 |
600 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 25 | 24.5 |
0.0142 |
710 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 26 | 18.1 |
0.0128 |
810 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 27.5 |
12.1 |
0.0112 |
970 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 30.5 |
7.41 |
0.0093 |
1300 |
|
4 | 7/0.85 |
2.55 |
1 | 1.2 | 2 | 37.5 |
4.61 |
0.0092 |
1980 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2.1 | 41 | 3.08 |
0.0078 |
2600 |
|
25 | 0.5 |
7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 24 | 36 | 0.0162 |
630 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 25.5 |
24.5 |
0.0142 |
740 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 26.5 |
18.1 |
0.0128 |
850 |
|
1.5 |
7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 28 | 12.1 |
0.0112 |
1030 |
|
2.5 |
7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 31 | 7.41 |
0.0093 |
1370 |
|
4 | 7/0.85 |
2.55 |
1 | 1.2 | 2 | 38 | 4.61 |
0.0092 |
2100 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2.1 | 42 | 3.08 |
0.0078 |
2760 |
|
26 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 24 | 36 | 0.0162 |
640 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 25.5 |
24.5 |
0.0142 |
750 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 26.5 |
18.1 |
0.0128 |
860 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 28 | 12.1 |
0.0112 |
1040 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 31 | 7.41 |
0.0093 |
1390 |
|
4 | 7/0.85 |
2.55 |
1 | 1.2 | 2 | 38 | 4.61 |
0.0092 |
2130 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2.1 | 42 | 3.08 |
0.0078 |
2800 |
|
27 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 24 | 36 | 0.0162 |
650 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 25.5 |
24.5 |
0.0142 |
760 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 26.5 |
18.1 |
0.0128 |
870 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 28 | 12.1 |
0.0112 |
1050 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 31 | 7.41 |
0.0093 |
1410 |
|
4 | 7/0.85 |
2.55 |
1 | 1.2 | 2 | 38 | 4.61 |
0.0092 |
2170 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2.1 | 42 | 3.08 |
0.0078 |
2860 |
|
28 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 25 | 36 | 0.0162 |
680 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 26 | 24.5 |
0.0142 |
800 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 27.5 |
18.1 |
0.0128 |
920 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 29 | 12.1 |
0.0112 |
1110 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 32 | 7.41 |
0.0093 |
1490 |
|
4 | 7/0.85 |
2.55 |
1 | 1.2 | 2 | 39.5 |
4.61 |
0.0092 |
2290 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2.2 | 43.5 |
3.08 |
0.0078 |
3040 |
|
29 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 25 | 36 | 0.0162 |
690 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 26 | 24.5 |
0.0142 |
810 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 27.5 |
18.1 |
0.0128 |
930 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 29 | 12.1 |
0.0112 |
1130 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 32 | 7.41 |
0.0093 |
1510 |
|
4 | 7/0.85 |
2.55 |
1 | 1.2 | 2 | 39.5 |
4.61 |
0.0092 |
2330 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2.2 | 43.5 |
3.08 |
0.0078 |
3100 |
|
30 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.8 | 25 | 36 | 0.0162 |
700 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.8 | 26 | 24.5 |
0.0142 |
820 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.8 | 27.5 |
18.1 |
0.0128 |
940 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.8 | 29 | 12.1 |
0.0112 |
1140 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.8 | 32 | 7.41 |
0.0093 |
1540 |
|
4 | 7/0.85 |
2.55 |
1 | 1.2 | 2 | 39.5 |
4.61 |
0.0092 |
2360 |
|
6 | 7/1.04 |
3.12 |
1 | 1.2 | 2.2 | 43.5 |
3.08 |
0.0078 |
3150 |
Cables to JIS C 3401
No. of cores |
Conductor |
Thickness of insulation |
Thickness of inner Sheath |
Thickness of outer Sheath |
Overall diameter |
Maximum conductor resistance (at 20°c) |
Minimum insulation resistance (at 20°c) |
Cable weight |
||
Nominal cross- sectional area | No.& dia. of wires | Diameter |
||||||||
mm2 |
mm |
mm |
mm |
mm |
mm | mm |
Ohm/km |
Ohm/km |
kg/km |
|
2 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
13 | 19.5 |
0.05 |
152 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
14 | 13.3 |
0.05 |
173 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
15 | 7.98 |
0.05 |
208 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
16 | 4.95 |
0.05 |
256 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.35 |
18 | 3.3 | 0.05 |
334 |
|
3 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
13 | 19.5 |
0.05 |
172 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
14 | 13.3 |
0.05 |
199 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
15 | 7.98 |
0.05 |
245 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
16 | 4.95 |
0.05 |
310 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.35 |
18 | 3.3 | 0.05 |
411 |
|
4 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
14 | 19.5 |
0.05 |
197 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
15 | 13.3 |
0.05 |
231 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
16 | 7.98 |
0.05 |
289 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
17 | 4.95 |
0.05 |
371 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.35 |
20 | 3.3 | 0.05 |
501 |
|
5 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
15 | 19.5 |
0.05 |
224 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
16 | 13.3 |
0.05 |
265 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
17 | 7.98 |
0.05 |
335 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
18 | 4.95 |
0.05 |
435 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.35 |
21 | 3.3 | 0.05 |
595 |
|
6 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
16 | 19.5 |
0.05 |
252 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
17 | 13.3 |
0.05 |
300 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
18 | 7.98 |
0.05 |
384 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
20 | 4.95 |
0.05 |
503 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.35 |
22 | 3.3 | 0.05 |
692 |
|
7 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
16 | 19.5 |
0.05 |
264 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
17 | 13.3 |
0.05 |
318 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
18 | 7.98 |
0.05 |
411 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
20 | 4.95 |
0.05 |
544 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.35 |
22 | 3.3 | 0.05 |
754 |
|
8 | 1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
17 | 19.5 |
0.05 |
293 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
18 | 13.3 |
0.05 |
354 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
19 | 7.98 |
0.05 |
461 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
21 | 4.95 |
0.05 |
613 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.35 |
24 | 3.3 | 0.05 |
853 |
|
9 | 1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
17 | 19.5 |
0.05 |
323 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
19 | 13.3 |
0.05 |
390 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
20 | 7.98 |
0.05 |
511 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
22 | 4.95 |
0.05 |
683 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.35 |
25 | 3.3 | 0.05 |
954 |
|
10 | 1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
18 | 19.5 |
0.05 |
357 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
20 | 13.3 |
0.05 |
434 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
21 | 7.98 |
0.05 |
568 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
24 | 4.95 |
0.05 |
761 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.44 |
28 | 3.3 | 0.05 |
1077 |
|
11 | 1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
18 | 19.5 |
0.05 |
369 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
20 | 13.3 |
0.05 |
452 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
21 | 7.98 |
0.05 |
596 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
24 | 4.95 |
0.05 |
802 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.44 |
28 | 3.3 | 0.05 |
1140 |
|
12 | 1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
19 | 19.5 |
0.05 |
391 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
20 | 13.3 |
0.05 |
479 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
22 | 7.98 |
0.05 |
635 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
24 | 4.95 |
0.05 |
860 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.53 |
29 | 3.3 | 0.05 |
1234 |
|
13 | 1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
20 | 19.5 |
0.05 |
418 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
21 | 13.3 |
0.05 |
514 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
23 | 7.98 |
0.05 |
684 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
25 | 4.95 |
0.05 |
927 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.53 |
30 | 3.3 | 0.05 |
1334 |
|
14 | 1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
20 | 19.5 |
0.05 |
432 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
21 | 13.3 |
0.05 |
533 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
23 | 7.98 |
0.05 |
711 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
25 | 4.95 |
0.05 |
969 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.53 |
30 | 3.3 | 0.05 |
1396 |
|
15 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
20 | 19.5 |
0.05 |
461 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
22 | 13.3 |
0.05 |
570 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
24 | 7.98 |
0.05 |
763 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.35 |
26 | 4.95 |
0.05 |
1041 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.53 |
32 | 3.3 | 0.05 |
1501 |
|
16 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
20 | 19.5 |
0.05 |
474 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
22 | 13.3 |
0.05 |
588 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
24 | 7.98 |
0.05 |
791 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.44 |
27 | 4.95 |
0.05 |
1092 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1 | 1.62 |
32 | 3.3 | 0.05 |
1575 |
|
17 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
21 | 19.5 |
0.05 |
484 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
23 | 13.3 |
0.05 |
601 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
25 | 7.98 |
0.05 |
809 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.44 |
28 | 4.95 |
0.05 |
1119 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1.2 | 1.62 |
36 | 3.3 | 0.05 |
1641 |
|
18 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
21 | 19.5 |
0.05 |
499 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
23 | 13.3 |
0.05 |
622 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
25 | 7.98 |
0.05 |
840 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.44 |
28 | 4.95 |
0.05 |
1166 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1.2 | 1.62 |
34 | 3.3 | 0.05 |
1712 |
|
19 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
21 | 19.5 |
0.05 |
515 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
23 | 13.3 |
0.05 |
643 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
25 | 7.98 |
0.05 |
872 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.44 |
28 | 4.95 |
0.05 |
1214 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1.2 | 1.62 |
34 | 3.3 | 0.05 |
1783 |
|
20 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
22 | 19.5 |
0.05 |
541 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
24 | 13.3 |
0.05 |
676 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
26 | 7.98 |
0.05 |
917 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.44 |
30 | 4.95 |
0.05 |
1277 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1.2 | 1.62 |
36 | 3.3 | 0.05 |
1892 |
|
21 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
22 | 19.5 |
0.05 |
556 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
24 | 13.3 |
0.05 |
697 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.35 |
26 | 7.98 |
0.05 |
949 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1 | 1.44 |
30 | 4.95 |
0.05 |
1324 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1.2 | 1.62 |
36 | 3.3 | 0.05 |
1963 |
|
22 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 23 | 19.5 | 0.05 | 582 |
1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 25 | 13.3 | 0.05 | 731 | |
2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 28 | 7.98 | 0.05 | 994 | |
4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 31 | 4.95 | 0.05 | 1388 | |
6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 37 | 3.3 | 0.05 | 2058 | |
23 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 23 | 19.5 | 0.05 | 598 |
1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 25 | 13.3 | 0.05 | 752 | |
2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.35 | 28 | 7.98 | 0.05 | 1026 | |
4 | 7/0.85 | 2.55 | 0.72 | 1 | 1.44 | 31 | 4.95 | 0.05 | 1435 | |
6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 37 | 3.3 | 0.05 | 2129 | |
24 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 24 | 19.5 | 0.05 | 627 |
1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 26 | 13.3 | 0.05 | 788 | |
2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.44 | 29 | 7.98 | 0.05 | 1086 | |
4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 33 | 4.95 | 0.05 | 1555 | |
6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 39 | 3.3 | 0.05 | 2229 | |
25 | 1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
24 | 19.5 |
0.05 |
642 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
26 | 13.3 |
0.05 |
809 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1 | 1.44 |
29 | 7.98 |
0.05 |
1118 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1.2 | 1.62 |
33 | 4.95 |
0.05 |
1603 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1.2 | 1.62 |
39 | 3.3 | 0.05 |
2301 |
|
26 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 24 | 19.5 | 0.05 | 658 |
1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 26 | 13.3 | 0.05 | 830 | |
2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.44 | 29 | 7.98 | 0.05 | 1149 | |
4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 33 | 4.95 | 0.05 | 1650 | |
6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 39 | 3.3 | 0.05 | 2372 | |
27 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 24 | 19.5 | 0.05 | 679 |
1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 26 | 13.3 | 0.05 | 858 | |
2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.53 | 30 | 7.98 | 0.05 | 1199 | |
4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 34 | 4.95 | 0.05 | 1706 | |
6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 40 | 3.3 | 0.05 | 2455 | |
28 | 1 | 7/0.43 | 1.29 | 0.72 | 1 | 1.35 | 25 | 19.5 | 0.05 | 703 |
1.5 | 7/0.52 | 1.56 | 0.72 | 1 | 1.35 | 27 | 13.3 | 0.05 | 889 | |
2.5 | 7/0.67 | 2.01 | 0.72 | 1 | 1.53 | 31 | 7.98 | 0.05 | 1243 | |
4 | 7/0.85 | 2.55 | 0.72 | 1.2 | 1.62 | 35 | 4.95 | 0.05 | 1784 | |
6 | 7/1.04 | 3.12 | 0.9 | 1.2 | 1.62 | 41 | 3.3 | 0.05 | 2546 | |
29 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.35 |
25 | 19.5 |
0.05 |
719 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.35 |
27 | 13.3 |
0.05 |
910 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.53 |
31 | 7.98 |
0.05 |
1275 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1.2 | 1.62 |
35 | 4.95 |
0.05 |
1831 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1.2 | 1.62 |
41 | 3.3 | 0.05 |
2617 |
|
30 |
1 | 7/0.43 |
1.29 |
0.72 |
1 | 1.44 |
25 | 19.5 |
0.05 |
743 |
1.5 | 7/0.52 |
1.56 |
0.72 |
1 | 1.44 |
28 | 13.3 |
0.05 |
941 |
|
2.5 | 7/0.67 |
2.01 |
0.72 |
1 | 1.53 |
31 | 7.98 |
0.05 |
1306 |
|
4 | 7/0.85 |
2.55 |
0.72 |
1.2 | 1.62 |
35 | 4.95 |
0.05 |
1878 |
|
6 | 7/1.04 |
3.12 |
0.9 | 1.2 | 1.62 |
41 | 3.3 | 0.05 |
2688 |
