CVV-SWA
Application and Description
For use in duct, tray and for direct burying in ground. The cable is subject to immerse in water all the
line.

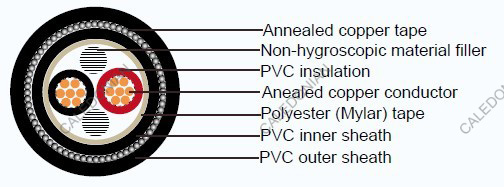

Cable Construction
Conductor: Concentric Stranded annealed copper wires, Sizes: 0.5 mm2 up to 6 mm2
Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Inner sheath: Polyvinyl chloride (PVC), Black color
Armour: Galvanized steel wire
Separator Tape : Polyester (Mylar) tape
Outer sheath: Polyvinyl chloride (PVC), Black color(A Special FR-PVC flame retardant sheath can be
supplied)
Technical Characteristics
Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts
Cable Parameter
Cables to IEC 60502-1
No. of cores |
Conductor |
Thickness of insulation |
Thickness of inner Sheath |
Diameter of steel wire armour | Thickness of outer Sheath |
Overall diameter |
Maximum conductor resistance (at 20°c) | Minimum insulation resistance (at 70°c) |
Cable weight |
||
Nominal cross-sectional area | No.& dia.of wire | Diameter | |||||||||
mm² |
mm | mm |
mm |
mm | mm | mm |
mm |
Ohm / km |
MOhm/km |
kg / km |
|
2 |
0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 0.8 | 1.8 |
14.5 |
36 | 0.0162 |
300 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 0.8 | 1.8 |
15 | 24.5 |
0.0142 |
320 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 0.8 | 1.8 |
15.5 |
18.1 |
0.0128 |
340 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 0.8 | 1.8 |
16 | 12.1 |
0.0112 |
370 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 0.8 | 1.8 |
17 | 7.41 |
0.0093 |
430 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.25 |
1.8 |
20 | 4.61 |
0.0092 |
670 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.25 |
1.8 |
21 | 3.08 |
0.0078 |
760 |
|
3 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 0.8 | 1.8 |
15 | 36 | 0.0162 |
320 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 0.8 | 1.8 |
15.5 |
24.5 |
0.0142 |
350 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 0.8 | 1.8 |
16 | 18.1 |
0.0128 |
370 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 0.8 | 1.8 |
16.5 |
12.1 |
0.0112 |
410 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 0.8 | 1.8 |
17.5 |
7.41 |
0.0093 |
480 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.25 |
1.8 |
20.5 |
4.61 |
0.0092 |
750 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.25 |
1.8 |
22 | 3.08 |
0.0078 |
870 |
|
4 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 0.8 | 1.8 |
16 | 36 | 0.0162 |
360 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 0.8 | 1.8 |
16.5 |
24.5 |
0.0142 |
390 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 0.8 | 1.8 |
17 | 18.1 |
0.0128 |
420 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 0.8 | 1.8 |
17.5 |
12.1 |
0.0112 |
460 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.25 |
1.8 |
19.5 |
7.41 |
0.0093 |
660 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.25 |
1.8 |
22 | 4.61 |
0.0092 |
860 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.25 |
1.8 |
23.5 |
3.08 |
0.0078 |
1010 |
|
5 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 0.8 | 1.8 |
16.5 |
36 | 0.0162 |
400 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 0.8 | 1.8 |
17.5 |
24.5 |
0.0142 |
430 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 0.8 | 1.8 |
18 | 18.1 |
0.0128 |
470 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.25 |
1.8 |
19.5 |
12.1 |
0.0112 |
640 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.25 |
1.8 |
20.5 |
7.41 |
0.0093 |
760 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.25 |
1.8 |
23.5 |
4.61 |
0.0092 |
990 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.25 |
1.8 |
25 | 3.08 |
0.0078 |
1170 |
|
6 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 36 | 0.0162 | 420 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 18 | 24.5 | 0.0142 | 470 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 18.1 | 0.0128 | 620 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 12.1 | 0.0112 | 690 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 22 | 7.41 | 0.0093 | 820 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 25 | 4.61 | 0.0092 | 1070 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 27 | 3.08 | 0.0078 | 1420 | |
7 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 36 | 0.0162 | 430 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 18 | 24.5 | 0.0142 | 480 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 18.1 | 0.0128 | 630 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 12.1 | 0.0112 | 700 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 22 | 7.41 | 0.0093 | 840 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 25 | 4.61 | 0.0092 | 1100 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 27 | 3.08 | 0.0078 | 1470 | |
8 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 36 | 0.0162 | 580 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 20 | 24.5 | 0.0142 | 640 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 18.1 | 0.0128 | 690 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 12.1 | 0.0112 | 770 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 23 | 7.41 | 0.0093 | 930 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 27 | 4.61 | 0.0092 | 1370 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 29 | 3.08 | 0.0078 | 1640 | |
9 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 20 | 36 | 0.0162 | 640 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 21 | 24.5 | 0.0142 | 700 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 18.1 | 0.0128 | 750 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 12.1 | 0.0112 | 840 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 24 | 7.41 | 0.0093 | 1010 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 28.5 | 4.61 | 0.0092 | 1500 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 30.5 | 3.08 | 0.0078 | 1800 | |
10 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 21 | 36 | 0.0162 | 680 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 22 | 24.5 | 0.0142 | 740 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 23 | 18.1 | 0.0128 | 810 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 24 | 12.1 | 0.0112 | 910 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 7.41 | 0.0093 | 1240 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 30.5 | 4.61 | 0.0092 | 1620 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 33 | 3.08 | 0.0078 | 1980 | |
11 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.25 |
1.8 |
21.5 |
36 | 0.0162 |
710 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.25 |
1.8 |
22.5 |
24.5 |
0.0142 |
790 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.25 |
1.8 |
23.5 |
18.1 |
0.0128 |
850 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.25 |
1.8 |
24.5 |
12.1 |
0.0112 |
960 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.6 | 1.8 |
27 | 7.41 |
0.0093 |
1310 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.6 | 1.8 |
31 | 4.61 |
0.0092 |
1750 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.6 | 1.9 |
33.5 |
3.08 |
0.0078 |
2130 |
|
12 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.25 |
1.8 |
21.5 |
36 | 0.0162 |
720 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.25 |
1.8 |
22.5 |
24.5 |
0.0142 |
800 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.25 |
1.8 |
23.5 |
18.1 |
0.0128 |
860 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.25 |
1.8 |
24.5 |
12.1 |
0.0112 |
980 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.6 | 1.8 |
27 | 7.41 |
0.0093 |
1330 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.6 | 1.8 |
31 | 4.61 |
0.0092 |
1780 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.6 | 1.9 |
33.5 |
3.08 |
0.0078 |
2190 |
|
13 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.25 |
1.8 |
22.5 |
36 | 0.0162 |
760 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.25 |
1.8 |
23.5 |
24.5 |
0.0142 |
840 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.25 |
1.8 |
24 | 18.1 |
0.0128 |
920 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.6 | 1.8 |
26 | 12.1 |
0.0112 |
1190 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.6 | 1.8 |
28 | 7.41 |
0.0093 |
1430 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.6 | 1.8 |
32.5 |
4.61 |
0.0092 |
1910 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.6 | 1.9 |
35 | 3.08 |
0.0078 |
2350 |
|
14 | 0.5 | 7/0.30 |
0.9 | 0.8 | 1 | 1.25 |
1.8 |
22.5 |
36 | 0.0162 |
770 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.25 |
1.8 |
23.5 |
24.5 |
0.0142 |
850 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.25 |
1.8 |
24 | 18.1 |
0.0128 |
930 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.6 | 1.8 |
26 | 12.1 |
0.0112 |
1200 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.6 |
1.8 |
28 | 7.41 |
0.0093 |
1450 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.6 |
1.8 |
32.5 |
4.61 |
0.0092 |
1950 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.6 |
1.9 |
35 | 3.08 |
0.0078 |
2400 |
|
15 | 0.5 | 7/0.30 |
0.9 |
0.8 | 1 | 1.25 |
1.8 |
23 | 36 | 0.0162 |
820 |
0.75 |
7/0.37 |
1.11 |
0.8 | 1 | 1.25 |
1.8 |
24 | 24.5 |
0.0142 |
920 |
|
1 | 7/0.43 |
1.29 |
0.8 | 1 | 1.25 |
1.8 |
25 | 18.1 |
0.0128 |
1000 |
|
1.5 | 7/0.52 |
1.56 |
0.8 | 1 | 1.6 | 1.8 |
27 | 12.1 |
0.0112 |
1280 |
|
2.5 | 7/0.67 |
2.01 |
0.8 | 1 | 1.6 | 1.8 |
29 | 7.41 |
0.0093 |
1560 |
|
4 | 7/0.85 |
2.55 |
1 | 1 | 1.6 | 1.9 |
34 | 4.61 |
0.0092 |
2120 |
|
6 | 7/1.04 |
3.12 |
1 | 1 | 1.6 | 2 | 37 | 3.08 |
0.0078 |
2600 |
|
16 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 23 | 36 | 0.0162 | 830 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 24 | 24.5 | 0.0142 | 930 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 25 | 18.1 | 0.0128 | 1010 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 27 | 12.1 | 0.0112 | 1300 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 29 | 7.41 | 0.0093 | 1580 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 34 | 4.61 | 0.0092 | 2160 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 2 | 37 | 3.08 | 0.0078 | 2660 | |
17 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 24 | 36 | 0.0162 | 880 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 25 | 24.5 | 0.0142 | 980 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 18.1 | 0.0128 | 1220 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 28 | 12.1 | 0.0112 | 1390 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 30 | 7.41 | 0.0093 | 1690 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 35.5 | 4.61 | 0.0092 | 2320 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 2 | 2 | 39.5 | 3.08 | 0.0078 | 3120 | |
18 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 24 | 36 | 0.0162 | 890 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 25 | 24.5 | 0.0142 | 990 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 18.1 | 0.0128 | 1230 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 28 | 12.1 | 0.0112 | 1400 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 30 | 7.41 | 0.0093 | 1700 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 35.5 | 4.61 | 0.0092 | 2350 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 2 | 2 | 39.5 | 3.08 | 0.0078 | 3170 | |
19 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 24 | 36 | 0.0162 | 900 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 25 | 24.5 | 0.0142 | 1000 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 18.1 | 0.0128 | 1240 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 28 | 12.1 | 0.0112 | 1410 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 30 | 7.41 | 0.0093 | 1730 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 35.5 | 4.61 | 0.0092 | 2390 | |
6 | 7/1.04 | 3.12 | 1 | 1 | 2 | 2 | 39.5 | 3.08 | 0.0078 | 3220 | |
20 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 25 | 36 | 0.0162 | 940 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 24.5 | 0.0142 | 1200 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 18.1 | 0.0128 | 1310 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 29 | 12.1 | 0.0112 | 1500 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 31.5 | 7.41 | 0.0093 | 1860 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 2 | 37 | 4.61 | 0.0092 | 2570 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.1 | 41.5 | 3.08 | 0.0078 | 3500 | |
21 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 25 | 36 | 0.0162 | 950 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 24.5 | 0.0142 | 1210 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 18.1 | 0.0128 | 1320 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 29 | 12.1 | 0.0112 | 1510 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 31.5 | 7.41 | 0.0093 | 1870 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 2 | 37 | 4.61 | 0.0092 | 2590 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.1 | 41.5 | 3.08 | 0.0078 | 3540 | |
22 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 36 | 0.0162 | 1150 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 24.5 | 0.0142 | 1280 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 18.1 | 0.0128 | 1400 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 30 | 12.1 | 0.0112 | 1600 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 33 | 7.41 | 0.0093 | 2000 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 2 | 2.1 | 39.5 | 4.61 | 0.0092 | 3040 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 43.5 | 3.08 | 0.0078 | 3810 | |
23 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 36 | 0.0162 | 1160 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 24.5 | 0.0142 | 1290 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 18.1 | 0.0128 | 1420 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 30 | 12.1 | 0.0112 | 1620 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 33 | 7.41 | 0.0093 | 2030 | |
4 | 7/0.85 | 2.55 | 1 | 1 | 2 | 2.1 | 39.5 | 4.61 | 0.0092 | 3080 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 43.5 | 3.08 | 0.0078 | 3870 | |
24 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 36 | 0.0162 | 1210 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 24.5 | 0.0142 | 1340 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 29.5 | 18.1 | 0.0128 | 1470 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 31.5 | 12.1 | 0.0112 | 1680 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 34.5 | 7.41 | 0.0093 | 2110 | |
4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.1 | 42 | 4.61 | 0.0092 | 3260 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 45.5 | 3.08 | 0.0078 | 4010 | |
25 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28 | 36 | 0.0162 | 1250 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 29 | 24.5 | 0.0142 | 1390 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 30 | 18.1 | 0.0128 | 1530 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 32 | 12.1 | 0.0112 | 1760 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 35 | 7.41 | 0.0093 | 2200 | |
4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.1 | 43 | 4.61 | 0.0092 | 3400 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 46.5 | 3.08 | 0.0078 | 4220 | |
26 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28 | 36 | 0.0162 | 1260 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 29 | 24.5 | 0.0142 | 1400 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 30 | 18.1 | 0.0128 | 1540 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 32 | 12.1 | 0.0112 | 1780 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 35 | 7.41 | 0.0093 | 2220 | |
4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.1 | 43 | 4.61 | 0.0092 | 3440 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 46.5 | 3.08 | 0.0078 | 4270 | |
27 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28 | 36 | 0.0162 | 1270 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 29 | 24.5 | 0.0142 | 1410 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 30 | 18.1 | 0.0128 | 1550 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 32 | 12.1 | 0.0112 | 1790 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 35 | 7.41 | 0.0093 | 2240 | |
4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.1 | 43 | 4.61 | 0.0092 | 3470 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 46.5 | 3.08 | 0.0078 | 4320 | |
28 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 36 | 0.0162 | 1310 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 30 | 24.5 | 0.0142 | 1480 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 31 | 18.1 | 0.0128 | 1630 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 33 | 12.1 | 0.0112 | 1880 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 36 | 7.41 | 0.0093 | 2350 | |
4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.2 | 44.5 | 4.61 | 0.0092 | 3670 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.3 | 48 | 3.08 | 0.0078 | 4550 | |
29 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 36 | 0.0162 | 1320 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 30 | 24.5 | 0.0142 | 1490 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 31 | 18.1 | 0.0128 | 1640 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.9 | 33 | 12.1 | 0.0112 | 1900 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 36 | 7.41 | 0.0093 | 2370 | |
4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.2 | 44.5 | 4.61 | 0.0092 | 3700 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.3 | 48 | 3.08 | 0.0078 | 4600 | |
30 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 36 | 0.0162 | 1330 |
0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 30 | 24.5 | 0.0142 | 1500 | |
1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 31 | 18.1 | 0.0128 | 1650 | |
1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.9 | 33 | 12.1 | 0.0112 | 1910 | |
2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 36 | 7.41 | 0.0093 | 2400 | |
4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.2 | 44.5 | 4.61 | 0.0092 | 3740 | |
6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.3 | 48 | 3.08 | 0.0078 | 4660 |
