Coil End Lead Cable to BS 6195 type 4

Application and Description

These cables are designed as power leads for permanent connection to coil winding motors, panel wiring and electrical machinery. They are able to withstand high temperature and immersion in varnish. Other applications include vehicle wiring, The HOFR sheath resists oil and varnish and the stranding is designed as a compromise between flexibility and positional stability. Also they are suitable for use as an alternative to tri-rated and bi-rated cable in certain applications.

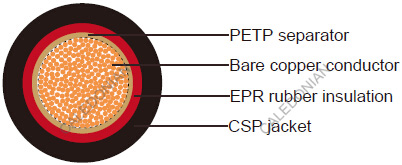

Cable Construction

• - Fine bare copper strands
  - Stranding to BS 6360 CL-5 or IEC 60228 CL-5
  - PETP(Polyethylene Terephthalate) tape separator
  - EPR-HOFR( Ethylene Propylene Rubber-Heat and Oil Resistant and Flame Retardant) insulation,
  type FR1 (for type 4A & 4C) & type FR2 (for type 4D & 4E&4F) to BS 7655-1.5, type EI2 (for type 5) to
  EN 50363-1
  - CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) sheath
  to BS 6899, black

Technical Characteristics

• - Working voltage: Type A: 300/500V
  Type C: 600/1000V
  Type D: 1900/3300V
  Type E: 3800/6600V
  Type F: 6350/11000V
  - Minimum bending radius: 4xOverall diameter
  - Operating temperature max. : +90º C(for type 4), +180º C(for type 5)

Cable Parameter
