British Standard Industrial Cables
6241B/6242B/ 6243B to BS 7211

Application and Description

These cables are suitable for fixed installation particularly for situations in which low emission smoke and domestic wiring cable for the surface wiring of sockets and lighting where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Can be installed in fixed installations in dry
or damp premises on walls, boards or trays, in channels or embedded in plaster. Suitable for laying in conduit or trunking where mechanical protection is required.

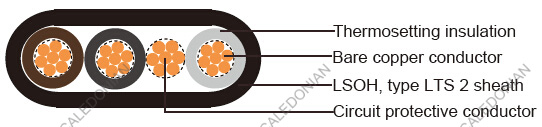

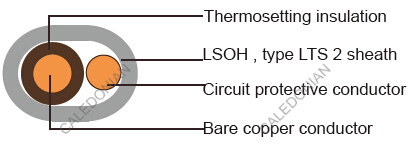

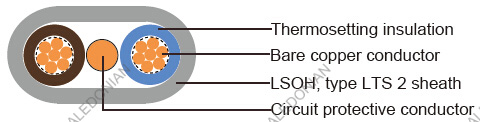

Cable Construction

British Standard Industrial Cables
6241B/6242B/ 6243B to BS 7211British Standard Industrial Cables
6241B/6242B/ 6243B to BS 7211



British Standard Industrial Cables
6241B/6242B/ 6243B to BS 7211

British Standard Industrial Cables
6241B/6242B/ 6243B to BS 7211

  • - Fine bare copper strands
    - Stranding to IEC 60228 CL-1 or 2
    - Thermosetting core insulation type EI5 or GP 8
    - The core or cores shall be laid parallel with the uninsulated circuit protective conductor
    - For twin cores, the protective conductor centrally placed between cores in same plane
    - For 3 cores, the protective conductor centrally placed between black and grey cores in same plane
    - LSOH sheath, type LTS 2, white

Core Identification

  • 2 cores: brown and blue, or, for 2 × 1.0 and 2 × 1.5 cables, brown and brown
    3 cores: brown, black (centre core) and grey

Technical Characteristics

  • - Working voltage: 300/500v
    - Test voltage: 2000 volts
    - Flexing bending radius: 15xOverall diameter
    - Static bending radius: 10xOverall diameter
    - Flexing temperature: +5º C to +90º C
    - Short circuit temperature: +250º C
    - Insulation resistance: 10 MΩxkm
    - Halogen free acc. to EN 50267-2-1 / IEC 60754-1
    - Smoke density acc. to EN 50268-2 / IEC 61034-2
    - Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2
    - Flame retardancy acc. to EN 50265-2-1, IEC 60332-1

Cable Parameter

AWG (No of Strands/ Strand Diameter) No. of Cores x Nominal Cross Sectional Area #xmm2 Nominal Thickness of Insulation mm Nominal Thickness of Sheath mm Nominal overall dimensions Circuit protective conductor AWG Nominal Weight kg/km
lower limit mm upper limit mm
6241B
17 1 × 1.0 0.7 0.9 4.1 × 5.2 5.0 × 6.3 17 45
16 1 × 1.5 0.7 0.9 4.4 × 5.4 5.3 × 6.6 17 55
6242B
17 2 × 1.0 0.7 0.9 4.1 × 7.6 5.0 × 9.1 17 68
17(7/26) 2 × 1.0 0.7 0.9 4.2 × 7.8 5.1 × 9.4 17 73
16 2 × 1.5 0.7 0.9 4.4 × 8.1 5.3 × 9.7 17 85
16(7/24) 2 × 1.5 0.7 0.9 4.5 × 8.3 5.4 × 10 17 90
14 2 × 2.5 0.7 1.0 4.9 × 9.3 6 × 11.2 16 120
14(7/22) 2 × 2.5 0.7 1.0 5.0 × 9.5 6.1 × 11.4 16 125
12(7/20) 2 × 4 0.7 1.0 5.5 × 10.4 6.7 × 12.6 16 175
10(7/18) 2 × 6 0.7 1.1 6.2 × 12.0 7.5 × 14.6 14 240
8(7/16) 2 × 10 0.7 1.2 7.3 × 14.5 8.8 × 17.6 12(7/20) 390
6(7/14) 2 × 16 0.7 1.3 8.4 × 17.0 10.1 × 20.5 10(7/18) 560
6243B
17 3 × 1.0 0.7 0.9 4.1 × 10 5.1 × 12.1 17 91
16 3 × 1.5 0.7 0.9 4.4 × 10.7 5.3 × 12.9 17 115
14 3 × 2.5 0.7 1.0 4.9 × 12.0 6 × 14.6 17 170
12(7/20) 3 × 4 0.7 1.0 5.5 × 14 6.7 × 16.9 16 196
10(7/18) 3 × 6 0.7 1.1 6.2 × 16.2 7.5 × 19.5 14 291
8(7/16) 3 × 10 0.7 1.2 7.3 × 19.5 8.8 × 23.6 12(7/20) 440
6(7/14) 3 × 16 0.7 1.3 8.4 × 22.8 10.1 × 27.6 10(7/18) 670
