Industrial Cables Australian Standard (MV)
12.7/22kV Three Core Individual Screened & PVC Sheathed (Al Conductor)
Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.
Standard
AS/NZS 1429.1

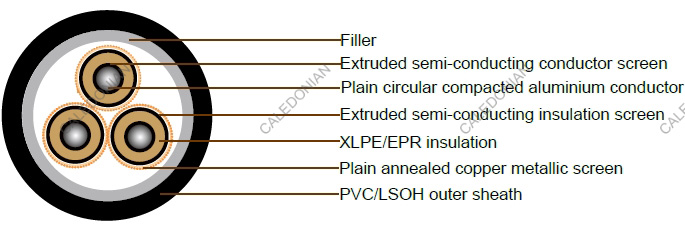

Cable Construction
- CONDUCTOR: Plain circular compacted aluminium to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
- CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
- INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
- INSULATION SCREEN: Extruded semi-conducting compound
- METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
- SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
- Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
Technical Characteristics
LIGHT DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 35 |
0.868 |
1.11 |
0.14 |
15000 |
0.157 |
3.62 |
137 |
132 |
112 |
| 50 |
0.641 |
0.821 |
0.134 |
14000 |
0.172 |
3.47 |
164 |
156 |
134 |
| 70 |
0.443 |
0.568 |
0.124 |
13000 |
0.192 |
3.3 |
203 |
190 |
163 |
| 95 |
0.32 |
0.41 |
0.117 |
11000 |
0.214 |
3.17 |
246 |
227 |
195 |
| 120 |
0.253 |
0.325 |
0.113 |
10000 |
0.232 |
3.08 |
282 |
259 |
221 |
| 150 |
0.206 |
0.265 |
0.11 |
9700 |
0.25 |
3.01 |
319 |
289 |
247 |
| 185 |
0.164 |
0.211 |
0.106 |
9000 |
0.269 |
2.95 |
365 |
328 |
285 |
| 240 |
0.125 |
0.161 |
0.102 |
8100 |
0.298 |
2.87 |
428 |
379 |
330 |
Cable Parameter
LIGHT DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 35 |
6.9 |
5.5 |
19.2 |
7.4 |
13 x 0.85 |
20.1 |
52.9 |
208 |
| 50 |
8.1 |
5.5 |
20.3 |
7.9 |
14 x 0.85 |
21.3 |
55.7 |
236 |
| 70 |
9.6 |
5.5 |
21.9 |
8.5 |
15 x 0.85 |
22.8 |
59.2 |
273 |
| 95 |
11.4 |
5.5 |
23.6 |
9.1 |
16 x 0.85 |
24.5 |
63.1 |
318 |
| 120 |
12.8 |
5.5 |
25 |
9.6 |
17 x 0.85 |
25.9 |
66.3 |
358 |
| 150 |
14.2 |
5.5 |
26.4 |
10.2 |
18 x 0.85 |
27.3 |
69.5 |
402 |
| 185 |
15.7 |
5.5 |
27.9 |
10.8 |
19 x 0.85 |
29.0 |
73.4 |
456 |
| 240 |
18 |
5.5 |
30.3 |
11.3 |
20 x 0.85 |
31.4 |
79.0 |
540 |
Technical Characteristics
HEAVY DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 35 |
0.868 |
1.11 |
0.14 |
15000 |
0.157 |
3.62 |
137 |
132 |
112 |
| 50 |
0.641 |
0.821 |
0.134 |
14000 |
0.172 |
3.47 |
164 |
156 |
134 |
| 70 |
0.443 |
0.568 |
0.124 |
13000 |
0.192 |
3.3 |
203 |
190 |
163 |
| 95 |
0.32 |
0.41 |
0.117 |
11000 |
0.214 |
3.17 |
246 |
227 |
195 |
| 120 |
0.253 |
0.325 |
0.113 |
10000 |
0.232 |
3.08 |
282 |
259 |
221 |
| 150 |
0.206 |
0.265 |
0.11 |
9700 |
0.25 |
3.01 |
319 |
289 |
247 |
| 185 |
0.164 |
0.211 |
0.106 |
9000 |
0.269 |
2.95 |
365 |
328 |
285 |
| 240 |
0.125 |
0.161 |
0.102 |
8100 |
0.298 |
2.87 |
428 |
379 |
330 |
| 300 |
0.1 |
0.13 |
0.0996 |
7400 |
0.327 |
2.81 |
? |
? |
? |
| 400 |
0.0778 |
0.102 |
0.0951 |
6700 |
0.363 |
2.75 |
? |
? |
? |
| 500 |
0.0617 |
0.0819 |
0.0915 |
5900 |
0.407 |
2.69 |
? |
? |
? |
Cable Parameter
HEAVY DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 35 |
6.9 |
5.5 |
19.2 |
7.9 |
14 x 0.85 |
22.5 |
54.7 |
225 |
| 50 |
8.1 |
5.5 |
20.3 |
10.8 |
19 x 0.85 |
23.6 |
57.4 |
260 |
| 70 |
9.6 |
5.5 |
21.9 |
15.3 |
27 x 0.85 |
25.2 |
61 |
310 |
| 95 |
11.4 |
5.5 |
23.6 |
20.4 |
36 x 0.85 |
26.9 |
64.9 |
370 |
| 120 |
12.8 |
5.5 |
25 |
22.7 |
40 x 0.85 |
28.3 |
68.1 |
415 |
| 150 |
14.2 |
5.5 |
26.4 |
22.7 |
40 x 0.85 |
29.7 |
71.4 |
460 |
| 185 |
15.7 |
5.5 |
27.9 |
22.7 |
40 x 0.85 |
31.2 |
74.8 |
505 |
| 240 |
18 |
5.5 |
30.3 |
22.7 |
40 x 0.85 |
33.6 |
80.2 |
585 |
| 300 |
20.1 |
5.5 |
32.6 |
22.7 |
40 x 0.85 |
36.1 |
86 |
685 |
| 400 |
23 |
5.5 |
35.4 |
22.7 |
40 x 0.85 |
38.9 |
92.7 |
800 |
| 500 |
26.5 |
5.5 |
39 |
22.7 |
40 x 0.85 |
42.5 |
100.8 |
960 |
