12.7/22kV Three Core Individual Screened & PVC Sheathed (Cu Conductor)
Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.
Standard
AS/NZS 1429.1

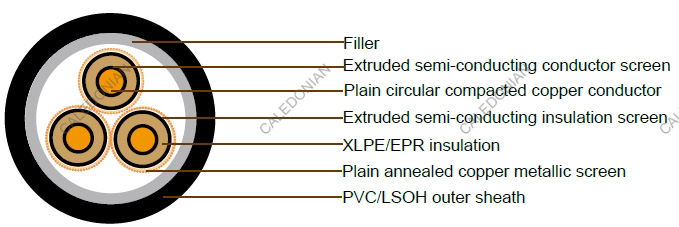

Cable Construction
- CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
- CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
- INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
- INSULATION SCREEN: Extruded semi-conducting compound
- METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper ire: 10kA for nominal 1 second(HEAVY DUTY)
- SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
- Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
Technical Characteristics
LIGHT DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 35 |
0.524 |
0.668 |
0.141 |
16000 |
0.156 |
3.63 |
177 |
170 |
144 |
| 50 |
0.387 |
0.494 |
0.134 |
14000 |
0.171 |
3.48 |
212 |
201 |
173 |
| 70 |
0.268 |
0.342 |
0.127 |
13000 |
0.192 |
3.31 |
261 |
245 |
210 |
| 95 |
0.193 |
0.247 |
0.117 |
11000 |
0.216 |
3.16 |
317 |
293 |
251 |
| 120 |
0.153 |
0.196 |
0.112 |
10000 |
0.236 |
3.07 |
363 |
333 |
285 |
| 150 |
0.124 |
0.16 |
0.109 |
9500 |
0.254 |
3 |
411 |
373 |
319 |
| 185 |
0.0991 |
0.128 |
0.105 |
8800 |
0.274 |
2.93 |
469 |
421 |
366 |
| 240 |
0.0754 |
0.0981 |
0.101 |
7900 |
0.305 |
2.85 |
549 |
486 |
423 |
Cable Parameter
LIGHT DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 35 |
6.8 |
5.5 |
19.1 |
7.4 |
13 x 0.85 |
20.1 |
52.9 |
276 |
| 50 |
8 |
5.5 |
20.3 |
7.9 |
14 x 0.85 |
21.4 |
56.0 |
328 |
| 70 |
9.6 |
5.5 |
21.9 |
8.5 |
15 x 0.85 |
22.8 |
59.2 |
404 |
| 95 |
11.5 |
5.5 |
23.8 |
9.1 |
16 x 0.85 |
24.5 |
63.1 |
499 |
| 120 |
13.1 |
5.5 |
25.3 |
9.6 |
17 x 0.85 |
25.9 |
66.6 |
590 |
| 150 |
14.5 |
5.5 |
26.8 |
10.2 |
18 x 0.85 |
27.3 |
69.8 |
685 |
| 185 |
16.1 |
5.5 |
28.4 |
10.8 |
19 x 0.85 |
29.1 |
73.9 |
810 |
| 240 |
18.5 |
5.5 |
30.8 |
11.3 |
20 x 0.85 |
31.4 |
79.3 |
1005 |
Technical Characteristics
HEAVY DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 35 |
0.524 |
0.668 |
0.141 |
16000 |
0.156 |
3.63 |
177 |
170 |
144 |
| 50 |
0.387 |
0.494 |
0.134 |
14000 |
0.171 |
3.48 |
212 |
201 |
173 |
| 70 |
0.268 |
0.342 |
0.127 |
13000 |
0.192 |
3.31 |
261 |
245 |
210 |
| 95 |
0.193 |
0.247 |
0.117 |
11000 |
0.216 |
3.16 |
317 |
293 |
251 |
| 120 |
0.153 |
0.196 |
0.112 |
10000 |
0.236 |
3.07 |
363 |
333 |
285 |
| 150 |
0.124 |
0.16 |
0.109 |
9500 |
0.254 |
3 |
411 |
373 |
319 |
| 185 |
0.0991 |
0.128 |
0.105 |
8800 |
0.274 |
2.93 |
469 |
421 |
366 |
| 240 |
0.0754 |
0.0981 |
0.101 |
7900 |
0.305 |
2.85 |
549 |
486 |
423 |
| 300 |
0.0601 |
0.0792 |
0.0988 |
7200 |
0.334 |
2.79 |
? |
? |
? |
| 400 |
0.047 |
0.0633 |
0.0944 |
6500 |
0.371 |
2.73 |
? |
? |
? |
| 500 |
0.0373 |
0.0518 |
0.0915 |
5900 |
0.407 |
2.69 |
? |
? |
? |
Cable Parameter
HEAVY DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 35 |
6.8 |
5.5 |
19.1 |
11.3 |
20 x 0.85 |
22.4 |
54.6 |
300 |
| 50 |
8 |
5.5 |
20.3 |
16.5 |
29 x 0.85 |
23.6 |
57.3 |
360 |
| 70 |
9.6 |
5.5 |
21.9 |
22.7 |
40 x 0.85 |
25.2 |
60.9 |
460 |
| 95 |
11.5 |
5.5 |
23.8 |
22.7 |
40 x 0.85 |
27.1 |
65.2 |
560 |
| 120 |
13.1 |
5.5 |
25.3 |
22.7 |
40 x 0.85 |
28.6 |
68.9 |
650 |
| 150 |
14.5 |
5.5 |
26.8 |
22.7 |
40 x 0.85 |
30.1 |
72.2 |
750 |
| 185 |
16.1 |
5.5 |
28.4 |
22.7 |
40 x 0.85 |
31.7 |
75.9 |
855 |
| 240 |
18.5 |
5.5 |
30.8 |
22.7 |
40 x 0.85 |
34.1 |
81.5 |
1060 |
| 300 |
20.7 |
5.5 |
33.2 |
22.7 |
40 x 0.85 |
36.7 |
87.5 |
1270 |
| 400 |
23.6 |
5.5 |
36.1 |
22.7 |
40 x 0.85 |
39.6 |
94.1 |
1570 |
| 500 |
26.5 |
5.5 |
39 |
22.7 |
40 x 0.85 |
42.5 |
100.8 |
1910 |
