Industrial Cables Australian Standard (MV)
6.35/11kV Three Core Individual Screened & PVC Sheathed (Cu Conductor)
Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.
Standard
AS/NZS 1429.1

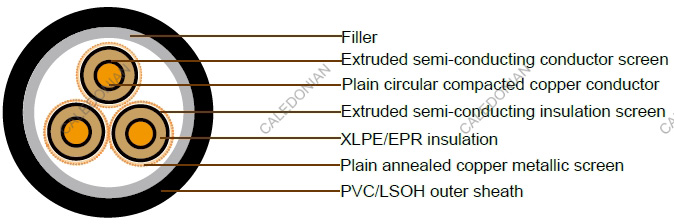

Cable Construction
- CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
- CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
- INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
- INSULATION SCREEN: Extruded semi-conducting compound
- METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
- SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
- Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
Technical Characteristics
LIGHT DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 16 |
1.15 |
1.47 |
0.142 |
14000 |
0.177 |
2.77 |
111 |
112 |
93 |
| 25 |
0.727 |
0.927 |
0.134 |
12000 |
0.198 |
2.65 |
145 |
143 |
119 |
| 35 |
0.524 |
0.668 |
0.127 |
11000 |
0.219 |
2.55 |
175 |
171 |
143 |
| 50 |
0.387 |
0.494 |
0.121 |
10000 |
0.242 |
2.46 |
210 |
202 |
169 |
| 70 |
0.268 |
0.342 |
0.115 |
8800 |
0.275 |
2.37 |
259 |
246 |
206 |
| 95 |
0.193 |
0.247 |
0.106 |
7700 |
0.314 |
2.3 |
315 |
294 |
246 |
| 120 |
0.153 |
0.196 |
0.102 |
7000 |
0.346 |
2.25 |
360 |
333 |
284 |
| 150 |
0.124 |
0.16 |
0.099 |
6400 |
0.374 |
2.21 |
408 |
373 |
318 |
| 185 |
0.0991 |
0.128 |
0.0961 |
5900 |
0.407 |
2.17 |
466 |
421 |
358 |
| 240 |
0.0754 |
0.0985 |
0.0926 |
5300 |
0.456 |
2.13 |
546 |
486 |
414 |
| 300 |
0.0601 |
0.0796 |
0.0904 |
4800 |
0.503 |
2.1 |
622 |
547 |
474 |
| 400 |
0.047 |
0.0638 |
0.087 |
4300 |
0.561 |
2.07 |
714 |
618 |
536 |
Cable Parameter
LIGHT DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 16 |
4.8 |
3.4 |
12.8 |
5.7 |
10 x 0.85 |
14.1 |
40 |
146 |
| 25 |
5.8 |
3.4 |
13.8 |
6.8 |
12 x 0.85 |
15.3 |
42.3 |
186 |
| 35 |
6.8 |
3.4 |
14.8 |
6.8 |
12 x 0.85 |
16.3 |
44.7 |
220 |
| 50 |
8 |
3.4 |
16 |
6.8 |
12 x 0.85 |
17.6 |
47.4 |
267 |
| 70 |
9.6 |
3.4 |
17.6 |
7.4 |
13 x 0.85 |
19.0 |
51 |
342 |
| 95 |
11.5 |
3.4 |
19.4 |
7.9 |
14 x 0.85 |
20.7 |
55.3 |
432 |
| 120 |
13.1 |
3.4 |
21 |
8.5 |
15 x 0.85 |
22.1 |
58.9 |
520 |
| 150 |
14.5 |
3.4 |
22.4 |
8.5 |
15 x 0.85 |
23.5 |
62.3 |
610 |
| 185 |
16.1 |
3.4 |
24.1 |
9.6 |
17 x 0.85 |
25.3 |
66 |
735 |
| 240 |
18.5 |
3.4 |
26.5 |
10.2 |
18 x 0.85 |
27.6 |
71.6 |
920 |
| 300 |
20.7 |
3.4 |
28.9 |
11.3 |
20 x 0.85 |
29.8 |
76.9 |
1120 |
| 400 |
23.6 |
3.4 |
31.8 |
11.9 |
21 x 0.85 |
33.2 |
84.2 |
1405 |
Technical Characteristics
HEAVY DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 16 |
1.15 |
1.47 |
0.142 |
14000 |
0.177 |
2.77 |
111 |
112 |
93 |
| 25 |
0.727 |
0.927 |
0.134 |
12000 |
0.198 |
2.65 |
145 |
143 |
119 |
| 35 |
0.524 |
0.668 |
0.127 |
11000 |
0.219 |
2.55 |
175 |
171 |
143 |
| 50 |
0.387 |
0.494 |
0.121 |
10000 |
0.242 |
2.46 |
210 |
202 |
169 |
| 70 |
0.268 |
0.342 |
0.115 |
8800 |
0.275 |
2.37 |
259 |
246 |
206 |
| 95 |
0.193 |
0.247 |
0.106 |
7700 |
0.314 |
2.3 |
315 |
294 |
246 |
| 120 |
0.153 |
0.196 |
0.102 |
7000 |
0.346 |
2.25 |
360 |
333 |
284 |
| 150 |
0.124 |
0.16 |
0.099 |
6400 |
0.374 |
2.21 |
408 |
373 |
318 |
| 185 |
0.0991 |
0.128 |
0.0961 |
5900 |
0.407 |
2.17 |
466 |
421 |
358 |
| 240 |
0.0754 |
0.0985 |
0.0926 |
5300 |
0.456 |
2.13 |
546 |
486 |
414 |
| 300 |
0.0601 |
0.0796 |
0.0904 |
4800 |
0.503 |
2.1 |
622 |
547 |
474 |
| 400 |
0.047 |
0.0638 |
0.087 |
4300 |
0.561 |
2.07 |
714 |
618 |
536 |
| 500 |
0.0373 |
0.0525 |
0.0847 |
3900 |
0.62 |
2.05 |
? |
? |
? |
Cable Parameter
HEAVY DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 16 |
4.8 |
3.4 |
12.8 |
5.7 |
10 x 0.85 |
16.1 |
40 |
150 |
| 25 |
5.8 |
3.4 |
13.8 |
8.5 |
15 x 0.85 |
17.1 |
42.3 |
195 |
| 35 |
6.8 |
3.4 |
14.8 |
11.3 |
20 x 0.85 |
18.1 |
44.7 |
240 |
| 50 |
8 |
3.4 |
16 |
16.5 |
29 x 0.85 |
19.3 |
47.4 |
295 |
| 70 |
9.6 |
3.4 |
17.6 |
22.7 |
40 x 0.85 |
20.9 |
51 |
390 |
| 95 |
11.5 |
3.4 |
19.4 |
22.7 |
40 x 0.85 |
22.7 |
55.3 |
480 |
| 120 |
13.1 |
3.4 |
21 |
22.7 |
40 x 0.85 |
24.3 |
58.9 |
575 |
| 150 |
14.5 |
3.4 |
22.4 |
22.7 |
40 x 0.85 |
25.7 |
62.3 |
665 |
| 185 |
16.1 |
3.4 |
24.1 |
22.7 |
40 x 0.85 |
27.4 |
66 |
770 |
| 240 |
18.5 |
3.4 |
26.5 |
22.7 |
40 x 0.85 |
29.8 |
71.6 |
965 |
| 300 |
20.7 |
3.4 |
28.9 |
22.7 |
40 x 0.85 |
32.2 |
76.9 |
1160 |
| 400 |
23.6 |
3.4 |
31.8 |
22.7 |
40 x 0.85 |
35.3 |
84.2 |
1460 |
