Industrial Cables Australian Standard (MV)
3.8/6.6kV Three Core Individual Screened & PVC Sheathed (Al Conductor)
Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.
Standard
AS/NZS 1429.1

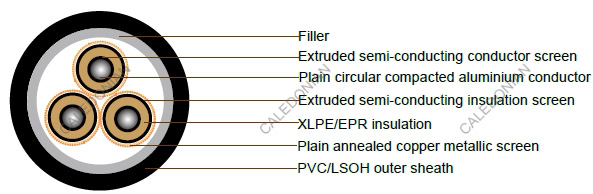

Cable Construction
- CONDUCTOR: Plain circular compacted aluminium to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
- CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
- INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
- INSULATION SCREEN: Extruded semi-conducting compound
- METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper ire: 10kA for nominal 1 second(HEAVY DUTY)
- SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
- Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
Technical Characteristics
LIGHT DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 35 |
0.868 |
1.11 |
0.12 |
8700 |
0.278 |
1.92 |
122 |
137 |
114 |
| 50 |
0.641 |
0.822 |
0.115 |
7800 |
0.309 |
1.87 |
95 |
166 |
137 |
| 70 |
0.443 |
0.569 |
0.106 |
6800 |
0.353 |
1.82 |
185 |
193 |
176 |
| 95 |
0.32 |
0.41 |
0.101 |
6000 |
0.4 |
1.77 |
222 |
238 |
198 |
| 120 |
0.253 |
0.325 |
0.0976 |
5500 |
0.439 |
1.74 |
257 |
270 |
225 |
| 150 |
0.206 |
0.265 |
0.0948 |
5100 |
0.477 |
1.72 |
293 |
306 |
254 |
| 185 |
0.164 |
0.211 |
0.0923 |
4700 |
0.518 |
1.7 |
333 |
342 |
292 |
| 240 |
0.125 |
0.162 |
0.0896 |
4300 |
0.561 |
1.62 |
390 |
394 |
331 |
| 300 |
0.1 |
0.13 |
0.0885 |
4100 |
0.582 |
1.5 |
447 |
447 |
378 |
Cable Parameter
LIGHT DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 35 |
6.9 |
2.5 |
13 |
6.8 |
|
14.5 |
39.5 |
123 |
| 50 |
8.1 |
2.5 |
14.2 |
6.8 |
|
15.6 |
42.1 |
141 |
| 70 |
9.6 |
2.5 |
15.8 |
7.9 |
|
17.3 |
45.9 |
174 |
| 95 |
11.4 |
2.5 |
17.5 |
8.5 |
|
18.9 |
49.6 |
209 |
| 120 |
12.8 |
2.5 |
18.9 |
9.1 |
|
20.5 |
53.2 |
241 |
| 150 |
14.2 |
2.5 |
20.3 |
9.6 |
|
21.9 |
56.4 |
276 |
| 185 |
15.7 |
2.5 |
21.8 |
10.2 |
|
23.5 |
60.1 |
320 |
| 240 |
18 |
2.6 |
24.3 |
10.8 |
|
26.1 |
66.2 |
392 |
| 300 |
20.1 |
2.8 |
27 |
11.9 |
|
29.0 |
72.7 |
473 |
Technical Characteristics
HEAVY DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 35 |
0.868 |
1.11 |
0.12 |
8700 |
0.278 |
1.92 |
122 |
137 |
114 |
| 50 |
0.641 |
0.822 |
0.115 |
7800 |
0.309 |
1.87 |
95 |
166 |
137 |
| 70 |
0.443 |
0.569 |
0.106 |
6800 |
0.353 |
1.82 |
185 |
193 |
176 |
| 95 |
0.32 |
0.41 |
0.101 |
6000 |
0.4 |
1.77 |
222 |
238 |
198 |
| 120 |
0.253 |
0.325 |
0.0976 |
5500 |
0.439 |
1.74 |
257 |
270 |
225 |
| 150 |
0.206 |
0.265 |
0.0948 |
5100 |
0.477 |
1.72 |
293 |
306 |
254 |
| 185 |
0.164 |
0.211 |
0.0923 |
4700 |
0.518 |
1.7 |
333 |
342 |
292 |
| 240 |
0.125 |
0.162 |
0.0896 |
4300 |
0.561 |
1.62 |
390 |
394 |
331 |
| 300 |
0.1 |
0.13 |
0.0885 |
4100 |
0.582 |
1.5 |
447 |
447 |
378 |
| 400 |
0.0778 |
0.102 |
0.0857 |
3900 |
0.613 |
1.39 |
|
|
? |
Cable Parameter
HEAVY DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 35 |
6.9 |
2.5 |
13 |
7.9 |
14 x 0.85 |
16.3 |
40.5 |
140 |
| 50 |
8.1 |
2.5 |
14.2 |
10.8 |
19 x 0.85 |
17.5 |
43.1 |
170 |
| 70 |
9.6 |
2.5 |
15.8 |
15.3 |
27 x 0.85 |
19.1 |
46.8 |
210 |
| 95 |
11.4 |
2.5 |
17.5 |
20.4 |
36 x 0.85 |
20.8 |
50.8 |
270 |
| 120 |
12.8 |
2.5 |
18.9 |
22.7 |
40 x 0.85 |
22.2 |
54.1 |
305 |
| 150 |
14.2 |
2.5 |
20.3 |
22.7 |
40 x 0.85 |
23.6 |
57.3 |
340 |
| 185 |
15.7 |
2.5 |
21.8 |
22.7 |
40 x 0.85 |
25.1 |
60.8 |
385 |
| 240 |
18 |
2.6 |
24.3 |
22.7 |
40 x 0.85 |
27.6 |
66.6 |
465 |
| 300 |
20.1 |
2.8 |
27 |
22.7 |
40 x 0.85 |
30.3 |
72.8 |
550 |
| 400 |
23 |
3 |
30.3 |
22.7 |
40 x 0.85 |
33.6 |
80.3 |
660 |
