Industrial Cables Australian Standard (MV)
3.8/6.6kV Three Core Individual Screened & PVC Sheathed (Cu Conductor)
Application
These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.
Standard
AS/NZS 1429.1

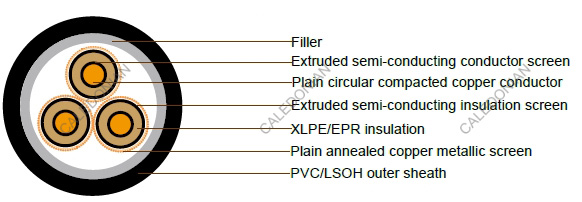

Cable Construction
- CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
- CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
- INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
- INSULATION SCREEN: Extruded semi-conducting compound
- METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper ire: 10kA for nominal 1 second(HEAVY DUTY)
- SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
- Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative
Technical Characteristics
LIGHT DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unen
closed
In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm2 |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 16 |
1.15 |
1.47 |
0.134 |
11000 |
0.221 |
2.06 |
100 |
115 |
95 |
| 25 |
0.727 |
0.927 |
0.127 |
9700 |
0.248 |
1.99 |
129 |
147 |
122 |
| 35 |
0.524 |
0.668 |
0.12 |
8700 |
0.276 |
1.93 |
156 |
176 |
150 |
| 50 |
0.387 |
0.494 |
0.115 |
7800 |
0.308 |
1.87 |
193 |
213 |
176 |
| 70 |
0.268 |
0.342 |
0.109 |
6900 |
0.352 |
1.82 |
238 |
247 |
225 |
| 95 |
0.193 |
0.247 |
0.101 |
6000 |
0.404 |
1.77 |
284 |
304 |
253 |
| 120 |
0.153 |
0.196 |
0.0969 |
5400 |
0.447 |
1.74 |
329 |
345 |
289 |
| 150 |
0.124 |
0.16 |
0.0942 |
5000 |
0.486 |
1.72 |
375 |
392 |
325 |
| 185 |
0.0991 |
0.128 |
0.0917 |
4600 |
0.53 |
1.69 |
426 |
436 |
373 |
| 240 |
0.0754 |
0.0986 |
0.089 |
4200 |
0.576 |
1.61 |
497 |
501 |
422 |
| 300 |
0.0601 |
0.0798 |
0.0879 |
4000 |
0.597 |
1.49 |
567 |
567 |
479 |
Cable Parameter
LIGHT DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 16 |
4.8 |
2.5 |
11 |
5.7 |
9 x 0.85 |
12.4 |
34.6 |
120 |
| 25 |
5.8 |
2.5 |
12 |
6.2 |
|
13.6 |
37.3 |
154 |
| 35 |
6.8 |
2.5 |
13 |
6.8 |
|
14.5 |
39.5 |
190 |
| 50 |
8 |
2.5 |
14.1 |
6.8 |
|
15.6 |
42.1 |
231 |
| 70 |
9.6 |
2.5 |
15.7 |
7.9 |
|
17.3 |
45.9 |
302 |
| 95 |
11.5 |
2.5 |
17.6 |
8.5 |
|
18.9 |
49.6 |
387 |
| 120 |
13.1 |
2.5 |
19.2 |
9.1 |
|
20.5 |
53.2 |
467 |
| 150 |
14.5 |
2.5 |
20.6 |
9.6 |
|
21.9 |
56.4 |
554 |
| 185 |
16.1 |
2.5 |
22.2 |
10.2 |
|
23.5 |
60.1 |
669 |
| 240 |
18.5 |
2.6 |
24.9 |
10.8 |
|
26.1 |
66.2 |
859 |
| 300 |
20.7 |
2.8 |
27.6 |
11.9 |
|
29.0 |
72.7 |
1059 |
Technical Characteristics
HEAVY DUTY
| Nominal conductor area |
Maximum Conductor DC resistance at 20°C |
Cond. AC resistance at 50Hz and 90°C |
Inductive reactance at 50Hz |
Insulation resistance at 20°C |
Conductor to screen capacitance |
Maximum diaelectric stress |
Current Ratings |
| Unenclosed In Air |
Unenclosed In Air |
Unenclosed In Air |
| mm |
Ohm/km |
Ohm/km |
Ohm/km |
MegOhm.km |
μF x km |
kV x mm |
A |
A |
A |
| 16 |
1.15 |
1.47 |
0.134 |
11000 |
0.221 |
2.06 |
100 |
115 |
95 |
| 25 |
0.727 |
0.927 |
0.127 |
9700 |
0.248 |
1.99 |
129 |
147 |
120 |
| 35 |
0.524 |
0.668 |
0.12 |
8700 |
0.276 |
1.93 |
156 |
176 |
147 |
| 50 |
0.387 |
0.494 |
0.115 |
7800 |
0.308 |
1.87 |
193 |
213 |
176 |
| 70 |
0.268 |
0.342 |
0.109 |
6900 |
0.352 |
1.82 |
238 |
247 |
225 |
| 95 |
0.193 |
0.247 |
0.101 |
6000 |
0.404 |
1.77 |
284 |
304 |
253 |
| 120 |
0.153 |
0.196 |
0.0969 |
5400 |
0.447 |
1.74 |
329 |
345 |
289 |
| 150 |
0.124 |
0.16 |
0.0942 |
5000 |
0.486 |
1.72 |
375 |
392 |
325 |
| 185 |
0.0991 |
0.128 |
0.0917 |
4600 |
0.53 |
1.69 |
426 |
436 |
373 |
| 240 |
0.0754 |
0.0986 |
0.089 |
4200 |
0.576 |
1.61 |
497 |
501 |
430 |
| 300 |
0.0601 |
0.0798 |
0.0879 |
4000 |
0.597 |
1.49 |
567 |
567 |
488 |
| 400 |
0.047 |
0.064 |
0.0852 |
3800 |
0.627 |
1.38 |
? |
? |
? |
Cable Parameter
HEAVY DUTY
| Sectional Area of Conductor |
Nom. Conductor Diameter |
Nom. Insulation Thickness |
Nom. Diamete Over insulation |
Screen Area on Each core |
No. and Diamter of Screened Wires |
Nom. Diamete Over Screened Wires |
Nom. Overall Diameter |
Approx. mass |
| mm2 |
mm |
mm |
mm |
mm2 |
no x mm |
mm |
mm |
kg/100m |
| 16 |
4.8 |
2.5 |
11 |
5.7 |
10 x 0.85 |
14.3 |
35.6 |
130 |
| 25 |
5.8 |
2.5 |
12 |
8.5 |
15 x 0.85 |
15.3 |
37.9 |
170 |
| 35 |
6.8 |
2.5 |
13 |
11.3 |
20 x 0.85 |
16.3 |
40.3 |
215 |
| 50 |
8 |
2.5 |
14.1 |
16.5 |
29 x 0.85 |
17.4 |
43 |
275 |
| 70 |
9.6 |
2.5 |
15.7 |
22.7 |
40 x 0.85 |
19 |
46.7 |
360 |
| 95 |
11.5 |
2.5 |
17.6 |
22.7 |
40 x 0.85 |
20.9 |
51.1 |
455 |
| 120 |
13.1 |
2.5 |
19.2 |
22.7 |
40 x 0.85 |
22.5 |
54.8 |
545 |
| 150 |
14.5 |
2.5 |
20.6 |
22.7 |
40 x 0.85 |
23.9 |
58.2 |
630 |
| 185 |
16.1 |
2.5 |
22.2 |
22.7 |
40 x 0.85 |
25.5 |
61.8 |
735 |
| 240 |
18.5 |
2.6 |
24.9 |
22.7 |
40 x 0.85 |
28.2 |
67.9 |
930 |
| 300 |
20.7 |
2.8 |
27.6 |
22.7 |
40 x 0.85 |
30.9 |
74.3 |
1130 |
| 400 |
23.6 |
3 |
30.9 |
22.7 |
40 x 0.85 |
34.2 |
81.8 |
1440 |
