Zero Halogen Flame Retardant 110℃
Double Insulated Cable, 0.6/1kV
Application
These cables are used in power and switchboard fixed applications.
Standard
Cable Construction

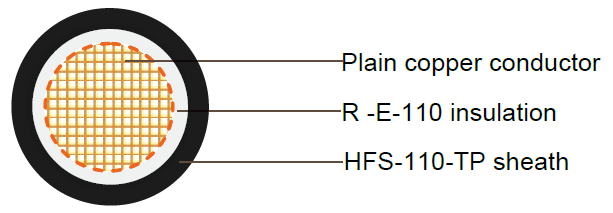

| Conductor |
Nominal 0.2mm stranded flexible plain copper wire to AS 1125 |
| Insulation |
R -E-110 to AS3808 |
| Insulation Colour: |
White |
| Sheath: |
HFS-110-TP to comply with AS3808 |
| Sheath Colours: |
Orange , Black - other colours available by request |
Technical Characteristics
| Conductor Size mm2 |
Electrical
Resistance
@20.C |
Current Ratìng' AMPS 2 single cores |
Voltage Drop mV 1Am at Max operating Temperature |
| mm2 |
Ohm/km |
Single Phase |
Three Phase |
| 10 |
1.910 |
105 |
4.97 |
4.30 |
| 16 |
1.210 |
135 |
3.13 |
2.70 |
| 25 |
0.780 |
185 |
1.99 |
1.72 |
| 35 |
0.554 |
225 |
1.44 |
1.24 |
| 50 |
0.386 |
275 |
1.07 |
0.92 |
| 70 |
0.272 |
350 |
0.769 |
0.65 |
| 95 |
0.206 |
435 |
0.567 |
0.48 |
| 120 |
0.161 |
510 |
0.465 |
0.39 |
Cable Parameter
| Conductor Size |
No.of cores |
Conductor No./ OD |
Nominal
Insulation Thickness |
Nominal
Sheath Thickness |
Nominal O.D. |
Approx.cable
weight |
| mm2 |
|
mm |
mm |
mm |
mm |
kg/100m |
| 10 |
1 |
322/0.2 |
1.0 |
1.4 |
9.1 |
16.30 |
| 16 |
1 |
511/0.2 |
1.0 |
1.4 |
10.1 |
23.40 |
| 25 |
1 |
784/0.2 |
1.2 |
1.4 |
11.8 |
33.60 |
| 35 |
1 |
1120102 |
1.2 |
1.4 |
13.1 |
44.60 |
| 50 |
1 |
1568/0.2 |
1.4 |
1.4 |
14.9 |
62.50 |
| 70 |
1 |
2240/0.2 |
1.4 |
1.4 |
17.0 |
81 .80 |
| 95 |
1 |
3040/0.2 |
1.6 |
1.5 |
19.3 |
113.00 |
| 120 |
1 |
3800/0.2 |
1.6 |
1.5 |
20.8 |
137.40 |
