VSD/EMC Cables (Copper Tape Screened), 0.6/1kV

Application

These cables are used to supply motors from variable speed controls unenclosed, enclosed in conduit, mounted on tray, or in underground ducts for industrial plants, where not subject to mechanical damage. They are designed to significantly reduce radiated interference from electrical noise by using
symmetrical, balanced and screened construction.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3808
  • AS/NZS 1125

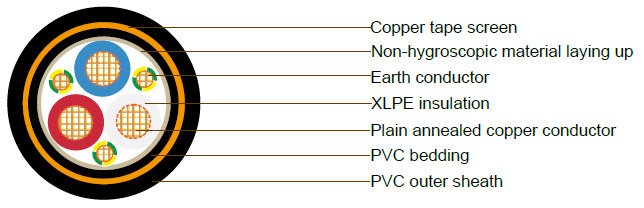

Cable Construction

Australian Standard Industrial Cables(ASLV)

Conductor Plain annealed copper, class 2 strands
Insulation XLPE, X-90
Insulation colour: Red, White, Blue & Green/Yellow
Laying up: Non-hygroscopic material(optional)
Bedding: Flame retardant polyvinyl chloride PVC V90
Screen: Plain annealed copper tape with 100% coverage
Sheath: Flame retardant polyvinyl chloride PVC V90
Sheath colour: Black

Technical Characteristics

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed Touching
A		 Unenclosed In Air
A		 Buried In Ducts
A		 Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @90°C Ohm/km Reactance Ohm/km Three Phase Voltage Drop mV/Am
2.5 29 24 32 7.41 9.45 0.0988 16.4
4 39 32 41 4.61 5.88 0.0930 10.2
6 50 42 51 3.08 3.93 0.0887 6.80
10 68 58 68 1.83 2.33 0.0840 4.05
16 91 77 89 1.21 1.54 0.0805 2.68
25 121 108 118 0.780 0.932 0.0808 1.62
35 149 127 144 0.554 0.684 0.0786 1.19
50 187 154 171 0.386 0.513 0.0751 0.902
70 237 193 214 0.272 0.340 0.0741 0.608
95 292 231 257 0.206 0.266 0.0725 0.485
120 336 275 294 0.161 0.206 0.0713 0.387
150 385 308 332 0.129 0.162 0.0718 0.317
185 446 358 380 0.106 0.134 0.0720 0.275
240 528 424 449 0.0801 0.105 0.0709 0.233
300 605 - 508 0.0641 0.0836 0.0704 0.205

Cable Parameter

No. of Core Nom. conductor area mm² Core diameter mm Earth conductor area mm² Earth core diameter mm Over bedding diameter mm Cable diameter mm Approx. mass kg/km
3C+E 2.5 3.7 2.5 3.5 10.9 15.0 330
3C+E 4 4.7 4 4.7 13 15.3 375
3C+3E 6 5.3 1.5 3.0 13.8 16.9 415
3C+3E 10 6.2 1.5 3.0 14.8 17.8 550
3C+3E 16 7.4 2.5 3.5 17 21.0 760
3C+3E 25 9.1 4 4.7 19.2 24.4 1130
3C+3E 35 10.3 6 5.3 21.9 27.2 1480
3C+3E 50 12.3 10 6.2 25.1 30.8 2110
3C+3E 70 14.0 10 6.2 28.1 35.7 2740
3C+3E 95 15.3 16 7.4 33.9 39.9 3590
3C+3E 120 17.1 16 7.4 38.9 43.8 4400
3C+3E 150 19.2 25 9.1 42.6 48.4 5450
3C+3E 185 21.5 25 9.1 47.5 54.1 6760
3C+3E 240 24.2 35 10.3 53.6 60.2 8600
3C+3E 300 26.8 50 12.3 59.6 66.3 10640
