PVC Insulated, PVC Sheathed 4 core+E Unarmored Cables, 0.6/1kV

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

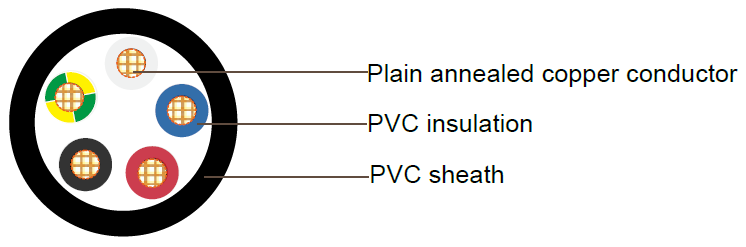

Cable Construction

Conductor Plain annealed copper.
Insulation Polyvinylchloride compound PVC V-90
Insulation colour: 4C + E - Red, White, Blue, black, Green/yellow
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Black, other colors are available upon request

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A		 Buried Direct A Buried In Ducts
A		 Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Three Phase Voltage Drop @75°C mV/Am
1.5 15 13 19 13.6 16.5 0.111 28.6
2.5 22 18 26 7.41 9.01 0.102 15.6
4 29 24 34 4.61 5.61 0.102 9.71
6 37 31 43 3.08 3.75 0.0967 6.49
10 51 42 57 1.83 2.23 0.0906 3.86
16 68 56 74 1.15 1.40 0.0861 2.43
25 91 79 96 0.727 0.884 0.0853 1.54
35 110 92 115 0.524 0.638 0.0826 1.11
50 135 110 140 0.387 0.471 0.0797 0.829
70 170 140 175 0.268 0.327 0.0770 0.583
95 215 165 210 0.193 0.236 0.0766 0.431
120 245 195 240 0.153 0.188 0.0743 0.351
150 280 225 270 0.124 0.153 0.0745 0.296
185 325 260 310 0.0991 0.123 0.0744 0.251
240 385 305 370 0.0754 0.0955 0.0735 0.210

Cable Parameter

Nom. conductor area
mm2		 Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
mm2		 Nom. earth conductor insulation thickness mm Nom. overall diameter mm Approx. mass kg/km
1.5 7/0.50 0.8 1.5 0.6 12.4 225
2.5 7/0.67 0.8 2.5 0.7 13.7 280
4 7/0.85 1.0 2.5 0.7 15.6 400
6 7/1.04 1.0 2.5 0.7 16.8 510
10 7/1.35 1.0 4.0 1.0 20.3 730
16 7/1.70 1.0 6.0 1.0 22.9 1015
25 7/2.14 1.2 6.0 1.0 26.9 1540
35* 7/2.65 1.2 10 1.0 27.7 1930
50* 19/1.89 1.4 16 1.0 33.5 2470
70* 19/2.24 1.4 25 1.2 37.0 3710
95* 19/2.65 1.6 25 1.2 44.8 5025
120* 19/2.94 1.6 35 1.2 48.5 5870
150* 19/3.28 1.8 50 1.4 51.0 7150
185* 37/2.65 2.0 70 1.4 56.7 8990
240* 37/2.94 2.2 95 1.6 64.6 11910
