XLPE Insulated, PVC Sheathed 4 core+E Unarmored Cables 0.6/1kV

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

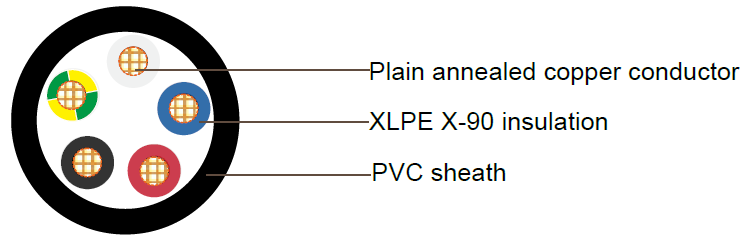

Cable Construction

Conductor Plain annealed copper.
Insulation XLPE X-90.
Insulation colour: 4C + E - Red, White, Blue, black, Green/yellow
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Black, other colors are available upon request

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A		 Buried Direct A Buried In Ducts
A		 Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @90°C Ohm/km Reactance Ohm/km Three Phase Voltage Drop @90°C mV/Am
10 68 91 68 1.83 2.33 0.084 4.05
16 91 118 89 1.15 1.47 0.081 2.55
25 121 155 118 0.727 0.927 0.081 1.61
35 149 182 144 0.524 0.669 0.079 1.17
50 187 219 171 0.387 0.494 0.075 0.868
70 237 268 214 0.268 0.343 0.074 0.609
95 292 321 257 0.193 0.248 0.073 0.450
120 305 250 275 0.153 0.197 0.0713 0.366
150 350 280 310 0.124 0.16 0.0718 0.307
185 405 325 355 0.0991 0.129 0.072 0.259
240 480 385 420 0.0754 0.0998 0.0709 0.216

Cable Parameter

Nom. conductor area
mm2		 Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
mm2		 Nom. earth conductor insulation thickness mm Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
10 7/1.35 0.7 4 0.7 1.4 16.0 475
16 7/1.70 0.7 6 0.7 1.4 18.3 690
25 7/2.14 0.9 6 0.7 1.4 21.8 1020
35 7/2.65 0.9 10 0.7 1.4 26.9 1400
50 19/1.89 1.0 16 0.7 1.4 30.7 1900
70 19/2.24 1.1 25 0.9 1.4 35.9 2600
95 19/2.65 1.1 25 0.9 1.5 38.0 3050
120 19/2.94 1.2 35 0.9 1.6 41.8 4200
150 19/3.28 1.4 50 1.0 1.7 43.0 5250
185 37/2.65 1.6 70 1.1 1.8 48.4 6620
240 37/2.94 1.7 95 1.1 2.0 54.5 8720
