PVC Insulated, PVC Sheathed 3 core+E Unarmored Cables, 0.6/1kV

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

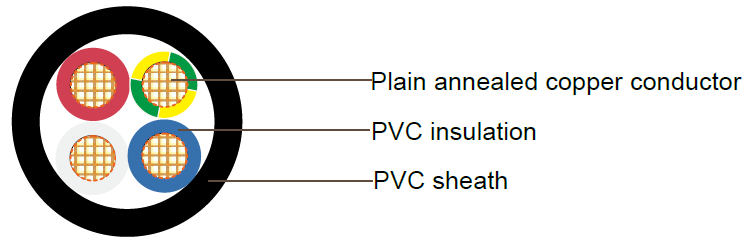

Cable Construction

Conductor Plain annealed copper.
Insulation Polyvinylchloride compound PVC V-90
Insulation colour: 3C + E – Red, White, Blue, Green/yellow
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Black, other colors are available upon request

Technical Characteristics

Australian Standard Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A		 Buried Direct A Buried In Ducts A Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Single Phase Voltage Drop @75°C mV/Am
1.5 15 13 19 13.6 16.5 0.111 28.6
2.5 22 18 26 7.41 9.01 0.102 15.6
4 29 24 34 4.61 5.61 0.102 9.71
6 37 31 43 3.08 3.75 0.0967 6.49
10 51 42 57 1.83 2.23 0.0906 3.86
16 68 56 74 1.15 1.40 0.0861 2.43
25 91 79 96 0.727 0.884 0.0853 1.54
35 110 92 115 0.524 0.638 0.0826 1.11
50 135 110 140 0.387 0.471 0.0797 0.829
70 170 140 175 0.268 0.327 0.0770 0.583
95 215 165 210 0.193 0.236 0.0766 0.431
120 245 195 240 0.153 0.188 0.0743 0.351
150 280 225 270 0.124 0.153 0.0745 0.296
185 325 260 310 0.0991 0.123 0.0744 0.251
240 385 305 370 0.0754 0.0955 0.0735 0.210

Cable Parameter

Nom. conductor area
mm2		 Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
mm2		 Nom. earth conductor insulation thickness mm Nom. overall diameter mm Approx. mass kg/km
1.5 7/0.50 0.8 1.5 0.6 11.5 190
2.5 7/0.67 0.8 2.5 0.7 12.6 250
4 7/0.85 1.0 2.5 0.7 14.2 350
6 7/1.04 1.0 2.5 0.7 15.4 400
10 7/1.35 1.0 4.0 1.0 17.5 605
16 7/1.70 1.0 6.0 1.0 19.8 825
25 7/2.14 1.2 6.0 1.0 23.5 1190
35 7/2.65 1.2 6.0 1.0 25.0 1535
50 19/1.89 1.4 16 1.0 30.4 2175
70 19/2.24 1.4 25 1.2 33.0 2870
95 19/2.65 1.6 25 1.2 38.4 3880
120 19/2.94 1.6 35 1.2 40.6 4640
150 19/3.28 1.8 50 1.4 45.2 5500
185 37/2.65 2.0 70 1.4 50.3 6930
240 37/2.94 2.2 95 1.6 57.2 9170
