PVC Insulated, PVC Sheathed
3 core+E Round Cables, 450/750V
Application
These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried
direct or in underground ducts for buildings and industrial plants where not subject to mechanical
damage.
Standard
- AS/NZS 5000.1
- AS/NZS 3008
- AS/NZS 1125

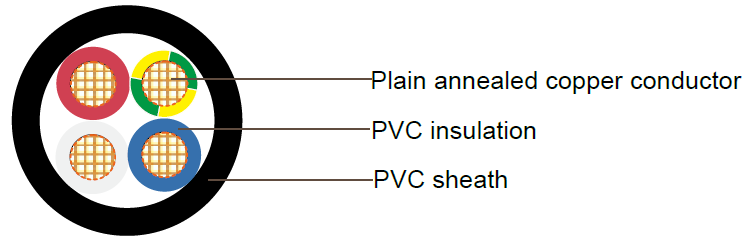

Cable Construction
| Conductor |
Plain annealed copper. |
| Insulation |
Polyvinylchloride compound PVC V-90 |
| Insulation colour: |
3C + E – Red, White, Blue, Green/yellow |
| Sheath: |
Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: |
Black, other colors are available upon request |
Technical Characteristics
| Conductor |
Current Ratings |
Electrical Characteristics |
| Nominal Area mm2 |
Unenclosed In Air
A |
Buried Direct A |
Buried In Ducts A |
Maximum
DC
Resistance
@20°C
Ohm/km |
Maximum AC Resistance
@75°C
Ohm/km |
Reactance Ohm/km |
Single Phase Voltage Drop
@75°C
mV/Am |
| 1.5 |
17 |
26 |
21 |
13.6 |
16.5 |
0.111 |
28.6 |
| 2.5 |
25 |
37 |
29 |
7.41 |
9.01 |
0.102 |
15.6 |
| 4 |
33 |
48 |
37 |
4.61 |
5.61 |
0.102 |
9.71 |
| 6 |
42 |
61 |
47 |
3.08 |
3.75 |
0.0967 |
6.49 |
Cable Parameter
| Nom.
conductor area mm2 |
Conductor No./ OD |
Nom.
insulation thickness mm |
Nom. earth
conductor area mm2 |
Nom. sheath thickness mm |
Nom. overall diameter mm |
Approx. mass kg/km |
| 1.5 |
7/0.50 |
0.6 |
1.5 |
0.9 |
9.2 |
130 |
| 2.5 |
7/0.67 |
0.7 |
2.5 |
1 |
11.4 |
210 |
| 4 |
7/0.85 |
0.8 |
2.5 |
1.1 |
12.4 |
280 |
| 6 |
7/1.04 |
1.0 |
2.5 |
1.1 |
13.8 |
330 |
