PVC Insulated, 4 Cores Flat Cables, 450/750V

Application

These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for two way or intermediate switching applications.

Standard

  • AS/NZS 5000.2
  • AS 1125
  • AS 3808

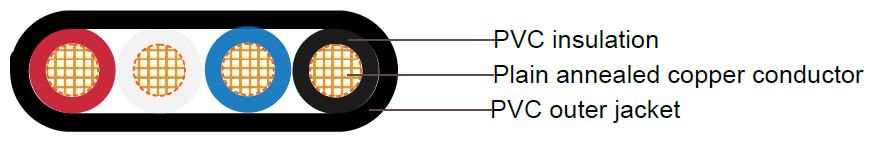

Cable Construction

Conductor Plain annealed copper. Maximum operating temperature: 90°C
Insulation PVC V90
Insulation colour: 4C cable: Red, White, Blue, Black
Sheath: Polyvinylchloride compound PVC 3V90
Sheath colour: White, other colors are available upon request

Technical Characteristics

PVC Insulated, 4 Cores Flat Industrial Cables(ASLV)

Nominal Area mm2 Current Ratings Electrical Characteristics
Unenclosed In Air
A
Surrounded by thermal insulation A Buried In Ducts
A
Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Single Phase Voltage Drop mV/Am
1 14 7 17 18.1 27.0 0.119 46.8
1.5 17 9 21 13.6 17.3 0.111 30.0
2.5 25 13 29 7.41 9.45 0.102 16.4
4 33 17 37 4.61 5.88 0.102 10.2

Cable Parameter

Nom. conductor area mm2 Conductor No./ OD Nom. insulation thickness mm Nom. sheath thickness mm Nom. overall diameter
mm
Approx. mass kg/km
Min Max
1.0 1/1.13 0.6 0.9 11.1x4.1 11.8x4.4 95
1.5 7/0.50 0.6 0.9 12.6x4.5 13.3x4.8 120
2.5 7/0.67 0.7 1 15.6x5.4 16.4x5.7 190
4 7/0.85 0.8 1.1 18.8x6.4 19.7x6.7 290
