PVC Insulated, 2 Cores Flat Cables, 450/750V
Application
These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for lighting and applications not requiring earth.
Standard
- AS/NZS 5000.2
- AS 1125
- AS 3808

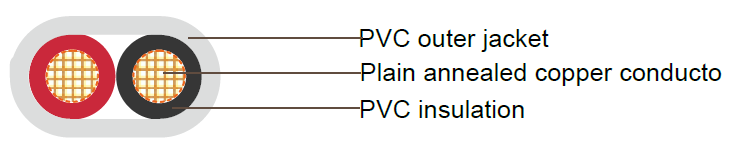

Cable Construction
| Conductor | Plain annealed copper. Maximum operating temperature: 90°C |
|---|---|
| Insulation | PVC V90 |
| Insulation colour: | 2C cable: Red, Black |
| Sheath: | Polyvinylchloride compound PVC 3V90 |
| Sheath colour: | White, other colors are available upon request |
Technical Characteristics
| Nominal Area mm2 | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Unenclosed In Air A |
Surrounded by thermal insulation A | Buried In Ducts A |
Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop mV/Am | |
| 1 | 16 | 8 | 19 | 18.1 | 27.0 | 0.119 | 54.0 |
| 1.5 | 21 | 10 | 24 | 13.6 | 17.3 | 0.111 | 34.6 |
| 2.5 | 30 | 15 | 34 | 7.41 | 9.45 | 0.102 | 18.9 |
| 4 | 39 | 19 | 44 | 4.61 | 5.88 | 0.102 | 11.8 |
| 6 | 50 | 25 | 56 | 3.08 | 3.93 | 0.0967 | 7.86 |
| 10 | 68 | 34 | 75 | 1.83 | 2.33 | 0.0906 | 4.68 |
| 16 | 91 | 46 | 97 | 1.15 | 1.47 | 0.0861 | 2.94 |
Cable Parameter
| Nom. conductor area mm2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. sheath thickness mm | Nom. overall diameter mm |
Approx. mass kg/km | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| 1.0 | 1/1.13 | 0.6 | 0.9 | 6.5x4.1 | 6.9x4.4 | 50 |
| 1.5 | 7/0.50 | 0.6 | 0.9 | 7.2x4.5 | 7.6x4.8 | 65 |
| 2.5 | 7/0.67 | 0.7 | 1 | 8.7x5.4 | 9.2x5.7 | 105 |
| 4 | 7/0.85 | 0.8 | 1.1 | 10.3x6.3 | 10.9x6.6 | 145 |
| 6 | 7/1.04 | 1.0 | 1.1 | 11.5x6.8 | 12.0x7.2 | 195 |
| 10 | 7/1.35 | 1.0 | 1.2 | 14.1x8.3 | 14.7x8.7 | 295 |
| 16 | 7/1.70 | 1.0 | 1.3 | 16.4x9.5 | 17.1x10.0 | 435 |
