Flame Retardant Zero Halogen
Crosslinked Thermoset Single Core X-HF-
110 Flexible Power Cable, 0.6/1kV
Application
These power cables are mainly for use in fixed applications.
Standard

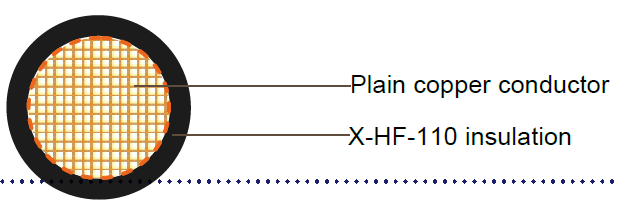

Cable Construction
| Conductor |
Nominal 0 .2mm stranded flexible plain copper wire to AS 1125 |
| Insulation |
X-HF-110 to AS3808 |
| Colours: |
Black, Red, Blue, White, Green/Yellow |
Technical Characteristics
| Conductor Size mm2 |
Electrical
Resistance
@20.C |
Current Ratìng' AMPS 2 single cores |
Voltage Drop mV 1Am at Max operating Temperature |
| mm2 |
Ohm/km |
Single Phase |
Three Phase |
| 0.5 |
39 |
7 |
125 |
107 |
| 1.0 |
19.500 |
25 |
57.4 |
49.70 |
| 1.5 |
13.300 |
32 |
36.85 |
31 .90 |
| 2.5 |
7.980 |
45 |
20.1 |
17.40 |
| 4.0 |
4.950 |
59 |
12.5 |
10.80 |
| 6.0 |
3.300 |
75 |
8.35 |
7.23 |
| 10 |
1.910 |
105 |
4.97 |
4.30 |
| 16 |
1.210 |
135 |
3.13 |
2.71 |
| 25 |
0.780 |
185 |
1.99 |
1.72 |
| 35 |
0.554 |
225 |
1.44 |
1.25 |
| 50 |
0.386 |
275 |
1.07 |
0.929 |
| 70 |
0.272 |
350 |
0.769 |
0.657 |
| 95 |
0.206 |
435 |
0.567 |
0.491 |
| 120 |
0.161 |
510 |
0.465 |
0.403 |
Cable Parameter
| Conductor Size |
No.of cores |
Conductor No./ OD |
Nominal
Insulation Thickness |
Nominal O.D. |
Approx.cable
weight |
| mm2 |
|
mm |
mm |
mm |
kg/100m |
| 0.5 |
1 |
16/0.2 |
0.7 |
2.40 |
1.10 |
| 1.0 |
1 |
32/0.2 |
0.7 |
2.80 |
1.50 |
| 1.5 |
1 |
30/0.25 |
0.7 |
3.10 |
2.00 |
| 2.5 |
1 |
50/0.25 |
0.7 |
3.60 |
2.90 |
| 4.0 |
1 |
128/0.2 |
0.7 |
4.20 |
4.40 |
| 6.0 |
1 |
192/0.2 |
0.7 |
4.80 |
6.60 |
| 10 |
1 |
322/0.2 |
0.7 |
5.80 |
10.50 |
| 16 |
1 |
511/0.2 |
0.7 |
6.90 |
16.10 |
| 25 |
1 |
784/0.2 |
0.9 |
8.70 |
28.80 |
| 35 |
1 |
1120/0.2 |
0.9 |
9.60 |
36.30 |
| 50 |
1 |
1568/0.2 |
1.0 |
11.20 |
49.50 |
| 70 |
1 |
2240/0.2 |
1.1 |
13.20 |
70.10 |
| 95 |
1 |
3040/0.2 |
1.1 |
15.00 |
94.20 |
| 120 |
1 |
3800/0.2 |
1.2 |
16.70 |
116.80 |
