Single Core Double Insulated Flexible
Power and Welding Cable, 0.6/1kV
Application
These cables are used for fixed power applications, can be used in power applications,such as
switchboards, busbars, transformers, welding applications ,like E and electrode leads,and automotive
applications for jumper leads, battery chargers.
Standard
- AS 5000.1
- AS1995
- AS1125
- AS3808

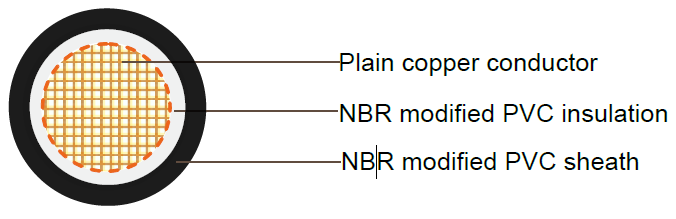

Cable Construction
| Conductor |
Nominal 0.2mm stranded flexible plain copper wire to AS 1125 |
| Insulation |
Nitrile (NBR) Modified PVC to comply with AS3808 V90HT |
| Insulation Colour: |
White |
| Sheath: |
Nitrile (NBR) Modified PVC to comply with AS3808 V90HT |
| Sheath Colours: |
Orange, Black - other colours available by request |
Technical Characteristics
| Conductor Size mm2 |
Electrical
Resistance
@20.C |
Current Ratìng' AMPS 2 single cores |
Voltage Orop mV 1Am at Max operatíng Temperature |
| mm2 |
Ohm/km |
Single Phase |
Three Phase |
| 10 |
1.910 |
69 |
4.45 |
3.86 |
| 16 |
1.210 |
92 |
2.80 |
2.43 |
| 25 |
0.780 |
125 |
1.78 |
1.54 |
| 35 |
0.554 |
155 |
1.29 |
1.12 |
| 50 |
0.386 |
185 |
0.96 |
0.83 |
| 70 |
0.272 |
240 |
0.62 |
0.59 |
| 95 |
0.206 |
295 |
0.51 |
0.44 |
| 120 |
0.161 |
345 |
0.41 |
0.36 |
Cable Parameter
| Conductor Size |
No.of cores |
Conductor No./ OD |
Nominal
Insulation Thickness |
Nominal
Sheath Thickness |
Nominal O.D. |
Approx.cable
weight |
| mm2 |
|
mm |
mm |
mm |
mm |
kg/100m |
| 10 |
1.0 |
322/0.2 |
1.0 |
1.4 |
9.1 |
14.42 |
| 16 |
1.0 |
511/0.2 |
1.0 |
1.4 |
10.1 |
20.16 |
| 25 |
1.2 |
784/0.2 |
1.2 |
1.4 |
11.8 |
29.14 |
| 35 |
1.2 |
1120/0.2 |
1.2 |
1.4 |
13.1 |
38.96 |
| 50 |
1.4 |
1568/0.2 |
1.4 |
1.4 |
14.9 |
52.84 |
| 70 |
1.4 |
2240/0.2 |
1.4 |
1.5 |
17.0 |
72.34 |
| 95 |
1.6 |
3040/0.2 |
1.6 |
1.5 |
19.3 |
96.18 |
| 120 |
1.6 |
3800/0.2 |
1.6 |
1.6 |
20.8 |
117.86 |
