PVC Insulated, PVC Sheathed Multicore+E Armored Control Cables, 0.6/1kV

Application

These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where mechanical damage may occur.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

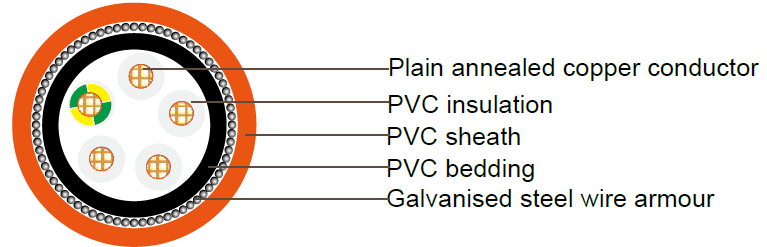

Cable Construction

Conductor Plain annealed copper.
Insulation Polyvinylchloride compound PVC V-90
Insulation colour: White(black letter numbered), Green/yellow
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Orange, other colors are available upon request

Technical Characteristics

Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A		 Buried Direct A Buried In Ducts
A		 Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Three Phase Voltage Drop @75°C mV/Am
1.5mm2
2C+E 18 14 22 13.6 16.5 0.111 33.0
3-50C+ E 15 13 19 13.6 16.5 0.111 33.0
2.5mm2
2C+E 26 20 31 7.41 9.01 0.102 18.0
3-50C+ E 22 18 26 7.41 9.01 0.102 18.0

Cable Parameter

No. of Cores Conductor No./ OD Nom. insulation thickness
mm		 Nom. earth conductor area
mm2		 Nom. earth conductor insulation thickness
mm		 Nom. diameter over bedding
mm		 Armour diameter
mm		 Nom. overall diameter
mm		 Approx. mass kg/km
1.5mm2
2C+ E 7/0.50 0.8 1.5 0.6 9.0 0.90 14.5 405
3C+ E 7/0.50 0.8 1.5 0.6 9.8 0.90 15.4 440
4C+ E 7/0.50 0.8 1.5 0.6 10.7 0.90 16.3 550
6C+ E 7/0.50 0.8 1.5 0.6 11.7 0.90 17.3 690
8C+ E 7/0.50 0.8 1.5 0.6 13.6 1.25 19.9 770
10C+ E 7/0.50 0.8 1.5 0.6 14.9 1.25 21.2 920
12C+ E 7/0.50 0.8 1.5 0.6 16.2 1.25 22.5 1010
15C+ E 7/0.50 0.8 1.5 0.6 17.1 1.60 23.4 1110
20C+ E 7/0.50 0.8 1.5 0.6 19.0 1.60 26.0 1535
25C+ E 7/0.50 0.8 1.5 0.6 21.7 1.60 28.7 1670
30C+ E 7/0.50 0.8 1.5 0.6 23.5 1.60 30.4 1840
40C+ E 7/0.50 0.8 1.5 0.6 26.4 1.60 34.8 2260
50C+ E 7/0.50 0.8 1.5 0.6 28.9 1.60 36.1 2400
2.5mm2
2C+ E 7/0.67 0.8 2.5 0.7 10.0 0.90 15.6 210
3C+ E 7/0.67 0.8 2.5 0.7 10.9 0.90 16.5 250
4C+ E 7/0.67 0.8 2.5 0.7 12.0 0.90 17.6 285
6C+ E 7/0.67 0.8 2.5 0.7 13.1 1.25 19.4 365
8C+ E 7/0.67 0.8 2.5 0.7 15.3 1.25 23.0 455
10C+ E 7/0.67 0.8 2.5 0.7 16.8 1.25 23.0 530
12C+ E 7/0.67 0.8 2.5 0.7 18.3 1.60 25.2 605
15C+ E 7/0.67 0.8 2.5 0.7 19.3 1.60 26.3 715
20C+ E 7/0.67 0.8 2.5 0.7 21.5 1.60 28.5 950
25C+ E 7/0.67 0.8 2.5 0.7 24.6 1.60 31.8 1095
30C+ E 7/0.67 0.8 2.5 0.7 26.6 1.60 33.8 1200
40C+ E 7/0.67 0.8 2.5 0.7 30.4 2.0 38.8 1565
50C+ E 7/0.67 0.8 2.5 0.7 33.3 2.0 41.7 1925
