XLPE Insulated, PVC Sheathed 4 core+E Armored Cables 0.6/1kV

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

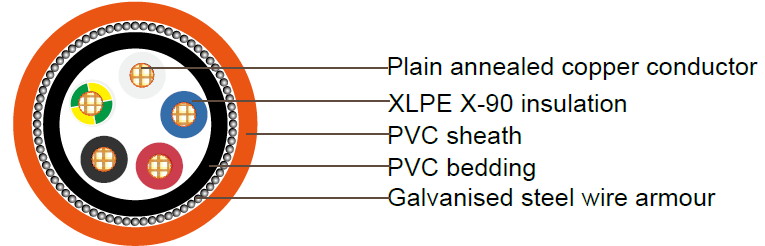

Cable Construction

Conductor Plain annealed copper.
Insulation XLPE X-90.
Insulation colour: 4C + E - Red, White, Blue, black, Green/yellow
Bedding: Polyvinylchloride compound PVC 5V-90
Bedding colour: Black
Armour: Galvanised Steel Wire
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Orange, other colors are available upon request

Technical Characteristics

Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A		 Buried Direct A Buried In Ducts
A		 Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @90°C Ohm/km Reactance Ohm/km Three Phase Voltage Drop @90°C mV/Am
16 83 110 83 1.15 1.47 0.0805 2.55
25 110 145 110 0.727 0.927 0.0808 1.61
35 135 170 135 0.524 0.669 0.0786 1.17
50 170 205 160 0.387 0.494 0.0751 0.868
70 215 250 200 0.268 0.343 0.0741 0.609
95 265 300 240 0.193 0.248 0.0725 0.450
120 305 345 275 0.153 0.197 0.0713 0.366
150 350 385 310 0.124 0.160 0.0718 0.307
185 405 435 355 0.0991 0.129 0.0720 0.259
240 480 500 420 0.0754 0.0998 0.0709 0.216

Cable Parameter

Nom. conductor area
mm2		 Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
mm2		 Nom. earth conductor insulation thickness mm Nom. diameter over bedding mm Armour diameter mm Nom. overall diameter mm Approx. mass kg/km
16 7/1.70 0.7 6 0.7 19.4 1.6 26.3 1725
25 7/2.14 0.9 6 0.7 22.7 1.6 29.6 2335
35 7/2.65 0.9 10 0.7 24.4 1.6 31.5 2605
50 19/1.89 1.0 16 0.7 27.8 2.0 36.5 3860
70 19/2.24 1.1 25 0.9 33.4 2.0 41.8 5135
95 19/2.65 1.1 25 0.9 36.9 2.5 45.8 5900
120 19/2.94 1.2 35 0.9 38.1 2.5 51.7 9090
150 19/3.28 1.4 50 1.0 42.2 2.5 56.9 10410
185 37/2.65 1.6 70 1.1 52.2 2.5 63.1 11600
240 37/2.94 1.7 95 1.1 58.8 2.5 70.1 14700
