PVC Insulated, PVC Sheathed 3 core+E Armored Cables, 0.6/1kV

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

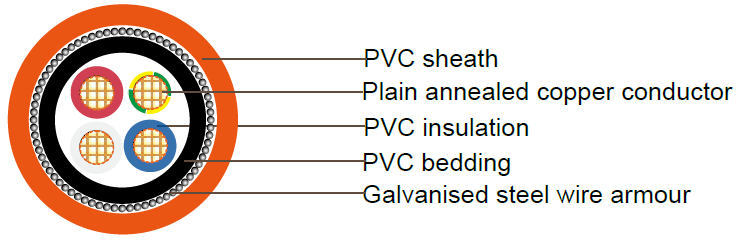

Cable Construction

Conductor Plain annealed copper.
Insulation Polyvinylchloride compound PVC V-90
Insulation colour: 3C + E – Red, White, Blue, Green/yellow
Bedding: Polyvinylchloride compound PVC 5V-90
Bedding colour: Black
Armour: Galvanised Steel Wire
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Orange, other colors are available upon request

Technical Characteristics

Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A		 Buried Direct A Buried In Ducts
A		 Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Three Phase Voltage Drop @75°C mV/Am
1.5 15 24 19 13.6 16.5 0.111 28.6
2.5 22 34 26 7.41 9.01 0.102 15.6
4 29 44 34 4.61 5.61 0.102 9.71
6 37 55 43 3.08 3.75 0.0967 6.49
10 51 74 57 1.83 2.23 0.0906 3.86
16 68 96 74 1.15 1.40 0.0861 2.43
25 91 125 96 0.727 0.884 0.0853 1.54
35 110 150 115 0.524 0.638 0.0826 1.11
50 135 180 140 0.387 0.471 0.0797 0.829
70 170 220 175 0.268 0.327 0.0770 0.583
95 215 265 210 0.193 0.236 0.0766 0.431
120 245 300 240 0.153 0.188 0.0743 0.351
150 280 335 270 0.124 0.153 0.0745 0.296
185 325 380 310 0.0991 0.123 0.0744 0.251
240 385 440 370 0.0754 0.0955 0.0735 0.210

Cable Parameter

Nom. conductor area
mm2		 Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
mm2		 Nom. earth conductor insulation thickness mm Nom. diameter over bedding mm Armour diameter mm Nom. overall diameter mm Approx. mass kg/km
1.5 7/0.50 0.8 1.5 0.8 9.8 0.9 15.4 400
2.5 7/0.67 0.8 2.5 0.8 10.9 0.9 16.5 545
4 7/0.85 1.0 2.5 0.8 12.5 1.25 18.8 770
6 7/1.04 1.0 2.5 0.8 13.7 1.25 20.0 880
10 7/1.35 1.0 4.0 1.0 15.8 1.25 22.1 1160
16 7/1.70 1.0 6.0 1.0 18.1 1.6 25.1 1560
25 7/2.14 1.2 6.0 1.0 21.8 1.6 28.8 2100
35 7/2.65 1.2 10 1.0 23.8 1.6 30.3 2480
50 19/1.89 1.4 16 1.0 26.7 2.0 34.1 3140
70 19/2.24 1.4 25 1.2 31.4 2.0 39.8 4455
95 19/2.65 1.6 25 1.2 35.9 2.5 43.9 5520
120 19/2.94 1.6 35 1.2 39.5 2.5 47.5 6790
150 19/3.28 1.8 50 1.4 43.2 2.5 53.4 7970
185 37/2.65 2.0 70 1.4 48.0 2.5 58.7 9660
240 37/2.94 2.2 95 1.6 54.9 2.5 66.0 12330
